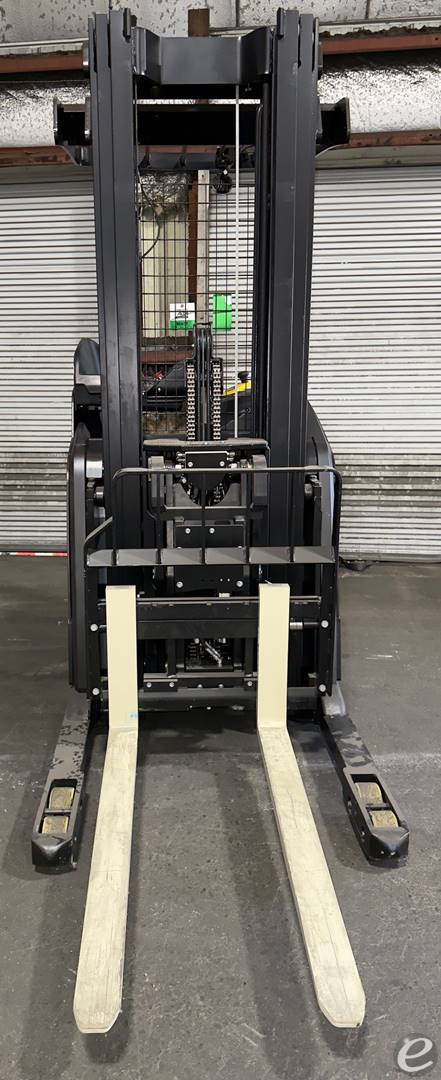

Yale®. NDR030DC 1 24 Volt Key Switch Start Standard Construction: Operating Temperatures +32° F to +120° F Powertrain Options: UL Classification Type "E" Battery Compartment: 14,25" Long x 39.0" Wide x 31.5' High (361mm x 991mm x 800mm) Battery Spacer Group - "X" Dimension 38.0" to 38.8" Battery Mast: 3 Stage Full Free Lift Mast - 227" (5766mm) Maximum Lift Height - 101" (2565mM) Overall Lowered Height - 62" (1575mm) Free Lift Height without load backrest - 266" (6756mm) Overall Extended Height with load backrest Carriages & Attachments: 36" (915mm) High Load Backrest Extension Double Reach Carriage with Integral Sideshifter Forks: 42" Long x 1.6" Thick x 3,9" Wide (1067mm x 40mm x 100mm) - Class II Hook Type - Standard Taper Forks Wheels & Tires: 5" x 2.9" Articulating Tandem High Load Compound Load Wheels with Sealed Bearings Drive Tires - 13.5 x 5.5 Poly X-Grooved (601 Compound) Basearm: 34" inside Dimension Outrigger Bars Tapered Outrigger Style, Weld-On Box Operator Compartment: Fork Height Display Energy System: Battery Discharge Indicator set for use with Flooded Cell Battery EZ Ride Floor System Rotary Joystick Standard Display: 5" Color Touchscreen Wire Mesh Screen Directional Control: Automotive Steering Control Sidestance with Adjustable Steering Wheel Position Lights & Alarms: Audible Alarm - Reverse Direction Activated Self-Adjusting 82-102 dB(A) Blue LED Spotlight - Reverse Activation (Forks Trailing) Without Lights BATTERY: GNB 12-125-17B CHARGER: EHF24T150 3 Phase, 480v Input power
