Equipment Description
NLEQ# 148991, 1520 Hours, Diesel, Heated & Air Conditioned Cab, Auxiliary Hydraulics, Mult Terrain (Track), Two-Speed, XPS High Flow, Quick Coupler - Any Questions, Please contact Joe Dougherty @ 215-781-2490
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Model: 289D
  • Manufacturer: Caterpillar (Cat)
  • Subtype: Earth Moving and Construction
Engine Specifications
  • Engine Model: Cat C3.3B DIT (Turbo)
  • Gross Power: 98.2 hp
  • Net Power: 95.0 hp
  • Displacement: 201 cu in
  • Cylinders: 4
Weights
  • Operating Weight: 10,533 lbs
Dimensions
  • Length without Bucket: 10 ft 11 in
  • Width Over Tracks: 6 ft 6 in
  • Height to Top of Cab: 6 ft 9 in
  • Ground Clearance: 8.8 in
Performance
  • Tipping Load: 8,776 lbs
  • Rated Operating Capacity: 3,861 lbs
Transmission
  • Type: Hydrostatic
  • Travel Speed, Low Range: 5.9 mph
  • Travel Speed, High Range: 8.5 mph
Hydraulic System
  • Hydraulic Flow: Standard or High-Flow
  • Hydraulic Power (Standard Flow): 22.5 gal/min
  • Hydraulic Power (High-Flow): 32.0 gal/min
  • Relief Valve Pressure: 3,335 psi
Undercarriage
  • Track Width: 17.7 in
  • Track Length on Ground: 5 ft 7 in
  • Ground Pressure: 5.6 psi

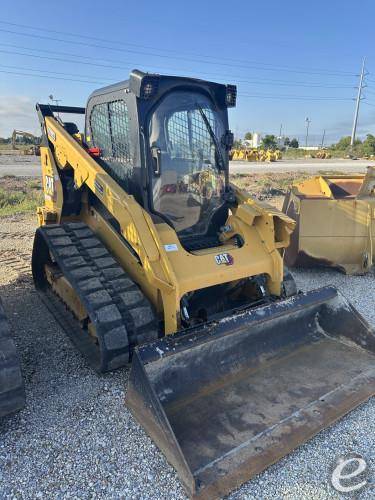

2022 Cat 289D

earth moving and construction

$59,875 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Sales

ADDRESS
National Lift Equipment
300 Pond St.
BristolPennsylvania 19007
ATTRIBUTES
STOCK #:
148991
YEAR:
2022
Manufacturer:
MODEL #:
CONDITION:
Used
HOUR METER:
1520
UNIT LOCATION:
Pennsylvania [19007]
POST DATE:
4/24/2026
  • Model: 289D
  • Manufacturer: Caterpillar (Cat)
  • Subtype: Earth Moving and Construction
Engine Specifications
  • Engine Model: Cat C3.3B DIT (Turbo)
  • Gross Power: 98.2 hp
  • Net Power: 95.0 hp
  • Displacement: 201 cu in
  • Cylinders: 4
Weights
  • Operating Weight: 10,533 lbs
Dimensions
  • Length without Bucket: 10 ft 11 in
  • Width Over Tracks: 6 ft 6 in
  • Height to Top of Cab: 6 ft 9 in
  • Ground Clearance: 8.8 in
Performance
  • Tipping Load: 8,776 lbs
  • Rated Operating Capacity: 3,861 lbs
Transmission
  • Type: Hydrostatic
  • Travel Speed, Low Range: 5.9 mph
  • Travel Speed, High Range: 8.5 mph
Hydraulic System
  • Hydraulic Flow: Standard or High-Flow
  • Hydraulic Power (Standard Flow): 22.5 gal/min
  • Hydraulic Power (High-Flow): 32.0 gal/min
  • Relief Valve Pressure: 3,335 psi
Undercarriage
  • Track Width: 17.7 in
  • Track Length on Ground: 5 ft 7 in
  • Ground Pressure: 5.6 psi
