Equipment Description
Unity has not been started yet for recon. 33" Base Leg Opening / Tilt Position Assist / Load Weight Display / Wire Mesh Guard
Spec Sheet
  • General Specifications
    • Model Number: ETR235
    • Manufacturer: Jungheinrich
    • Type: Forklift
  • Dimensions
    • Overall Length: Approximately 7.8 ft (varies with attachment)
    • Overall Width: Approximately 3.5 ft
    • Height to Top of Overhead Guard: Approximately 7.9 ft
    • Turning Radius: Approximately 4.75 ft
    • Clearance: Approximately 4.5 in
  • Performance
    • Load Capacity: 5,500 lbs
    • Travel Speed: Up to 6.8 mph with load
    • Lift Speed: Approximately 80 ft/min
    • Lowering Speed: Approximately 110 ft/min with load
  • Power
    • Drive Motor: 3-phase AC, 6.2 HP
    • Lift Motor: AC, 20 HP
    • Battery Voltage: 36V
    • Battery Capacity: 775 Ah
  • Tires
    • Front Tire Size: 14 in x 5 in Polyurethane
    • Rear Tire Size: 12 in x 7.9 in Polyurethane
  • Features
    • Electric Power Steering
    • Regenerative Braking System
    • Multifunction Control Handle
    • Seat and Operator Presence System

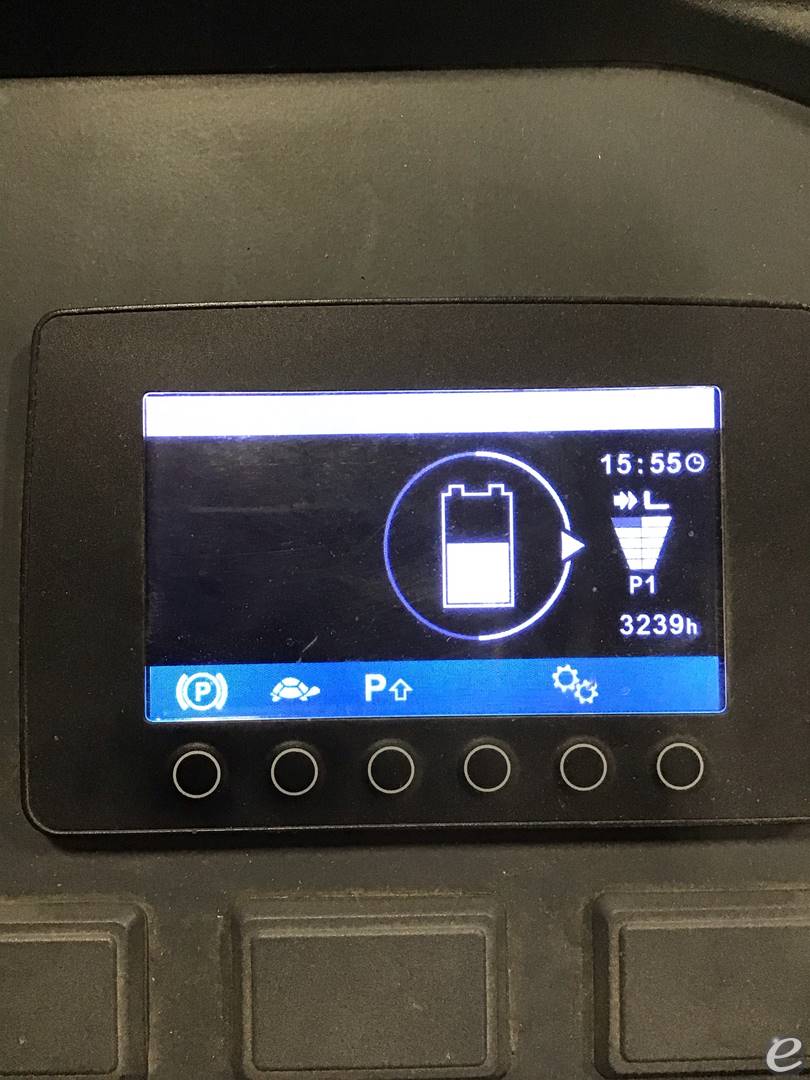

    • Operator Display with Diagnostics
  • Forks
    • Length: Varies
    • Width: Approximately 4 in
    • Thickness: Approximately 1.5 in
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

Warranty
30 Days Full / 6 Months Powertrain / 1 Year Battery

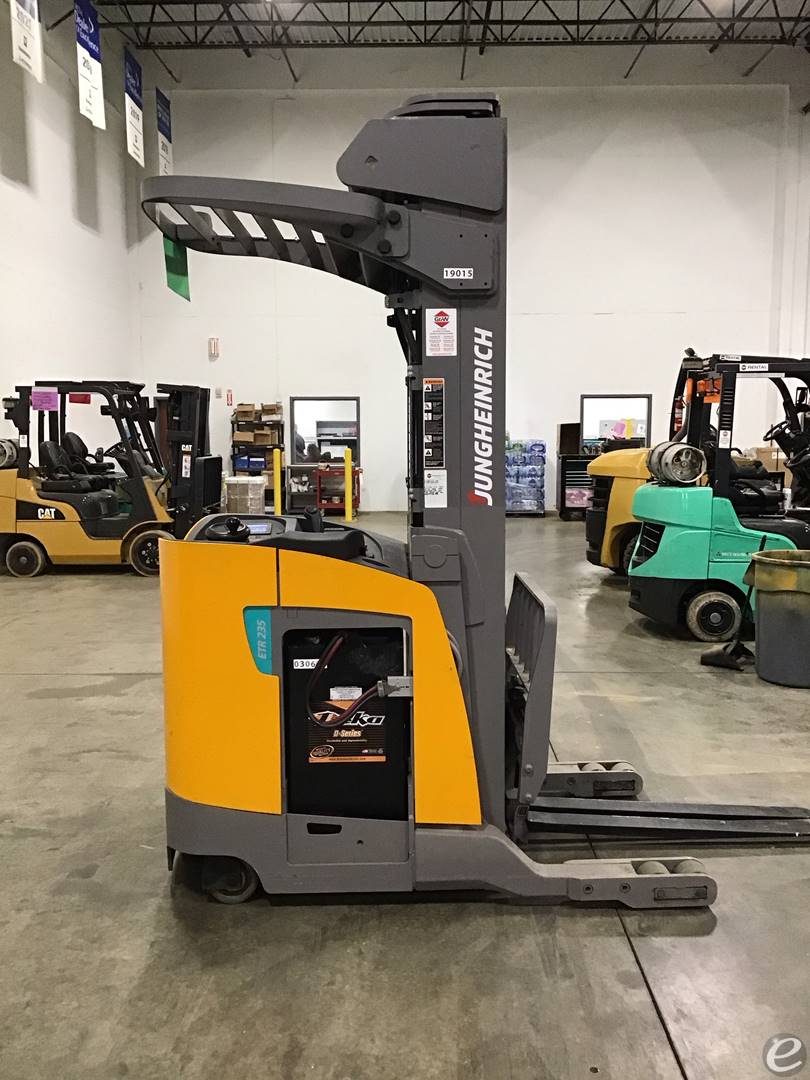

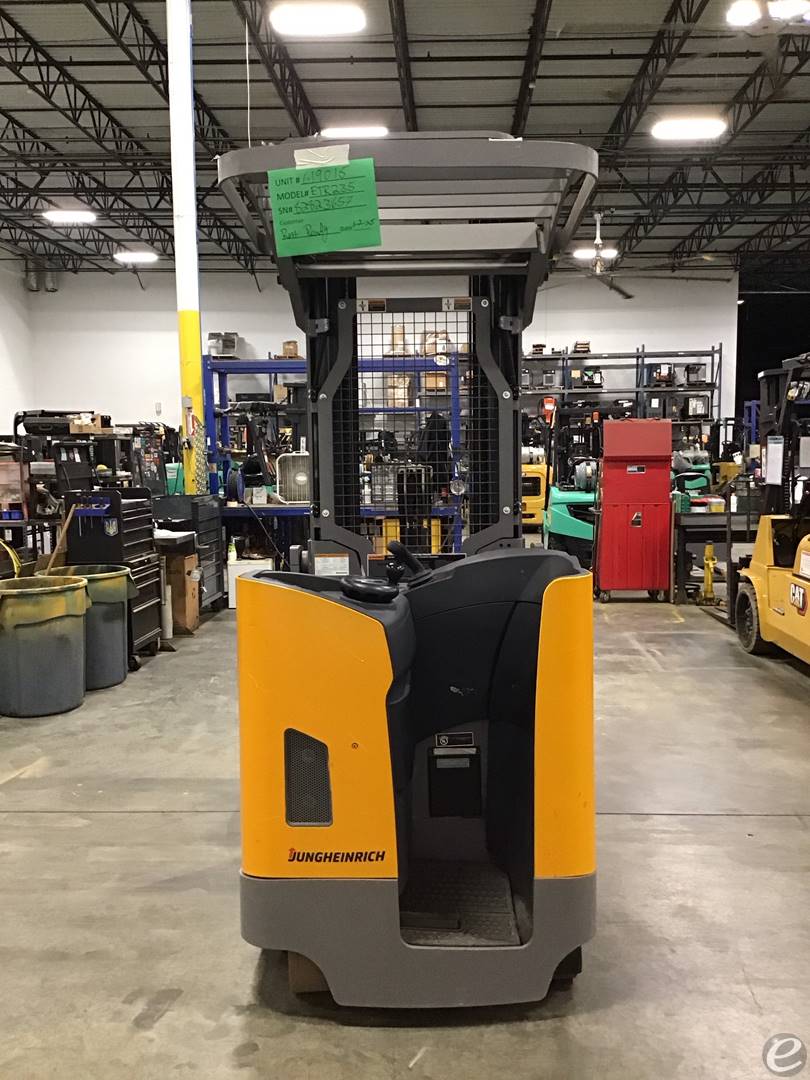

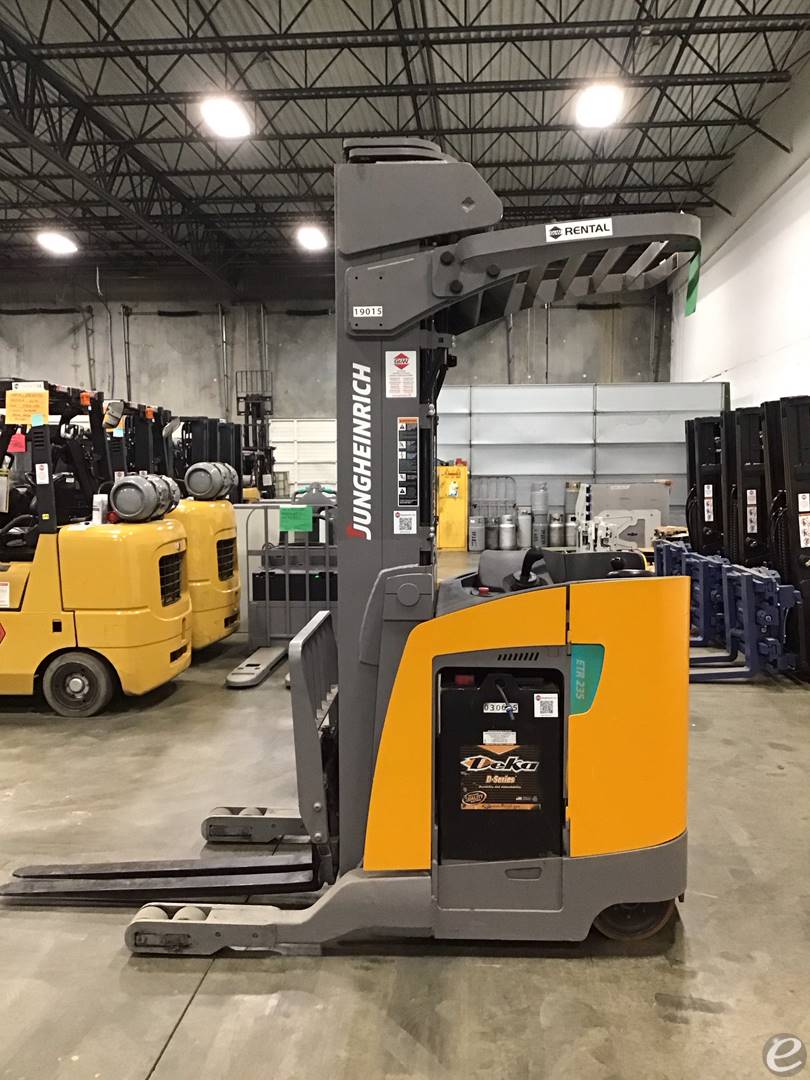

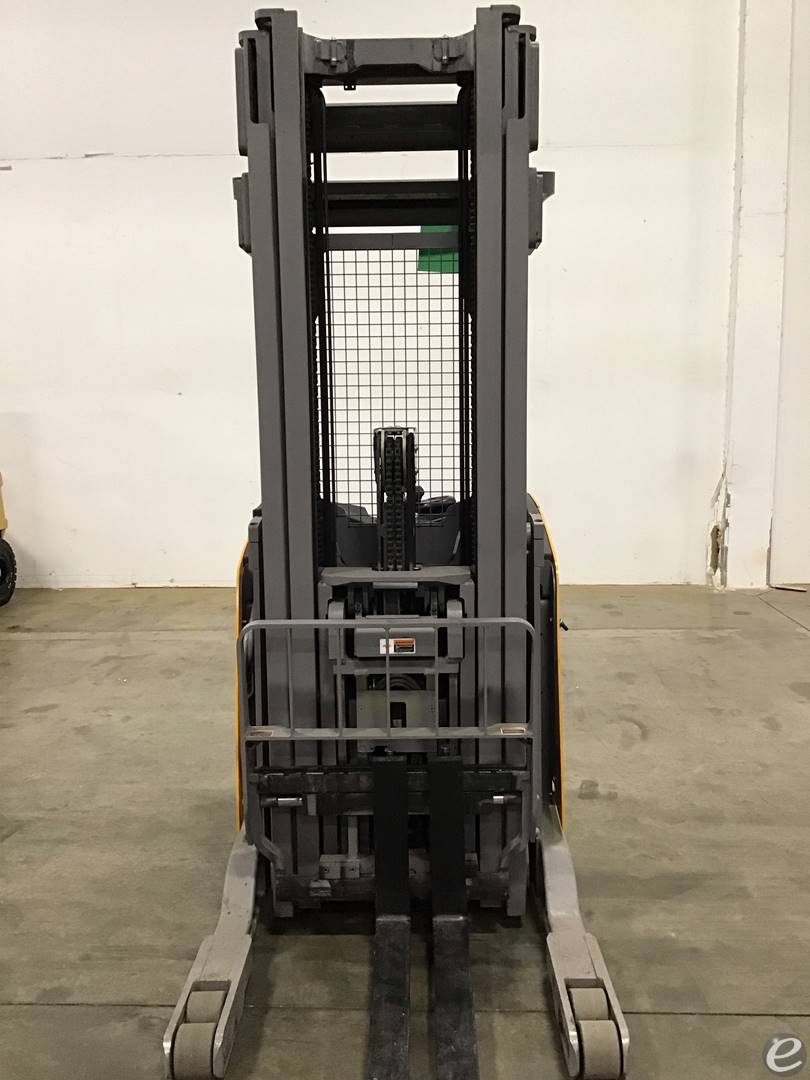

2017 Jungheinrich ETR235

electric narrow aisle single reach electric

$18,900 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Edward Tart
Phone:

ADDRESS
G&W Equipment Inc.
3550 Atlanta Industrial Pkwy NW
AtlantaGeorgia 30331
ATTRIBUTES
STOCK #:
G19015
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
3500
FUEL:
MAST TYPE:
MAST HEIGHT:
107 / 242 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
3239
UNIT LOCATION:
Georgia [30331]
POST DATE:
1/21/2026
