Equipment Description
NLEQ# 148892, 1095 Hours, Diesel, Heated & Air Conditioned Cab, Mult Terrain (Track), Warranty Through March 2028 or 3000 Hours, Quick Coupler, Extra Counterweights, ALSO Includes 2020 CAT BR172 Brush Cutter, Grapple Rake, and 4 in 1 MP Bucket - Any Questions, Please contact Joe Dougherty @ 215-781-2490
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Engine
    • Engine Model: Cat C3.3B DIT (turbo)
    • Net Power: 74.3 HP (55.4 kW)
    • Gross Power: 78.2 HP (58.4 kW)
    • Displacement: 203 in³ (3.3 L)
    • Torque, Maximum: 195 lb-ft (265 Nm) @ 1,500 rpm
    • Rated Speed: 2,400 rpm
  • Weights
    • Operating Weight: 8,945 lb
  • Dimensions
    • Length - Track on the Ground: 57.1 inches
    • Overall Length: 133.4 inches
    • Width: 66 inches
    • Height: 83.1 inches
    • Wheelbase: 53 inches
  • Capacities
    • Fuel Tank: 27.7 gallons
    • Cooling System: 3.3 gallons
    • Hydraulic System (including tank): 14.5 gallons
    • Hydraulic Tank: 10.3 gallons
  • Performance
    • Tipping Load: 6,653 lb
    • Operating Capacity at 35% Tipping Load: 2,329 lb
    • Operating Capacity at 50% Tipping Load: 3,326 lb
    • Ground Pressure: 4.9 psi
    • Travel Speed - Forward: 8.4 mph
    • Travel Speed - Reverse: 8.4 mph
  • Hydraulic System
    • Loader Hydraulic Flow - Standard - Maximum Flow: 23 gal/min
    • Loader Hydraulic Flow - High Flow - Maximum Flow: 32 gal/min
    • Loader Hydraulic Pressure: 3,335 psi
  • Tracks
    • Track Width: 15.7 inches

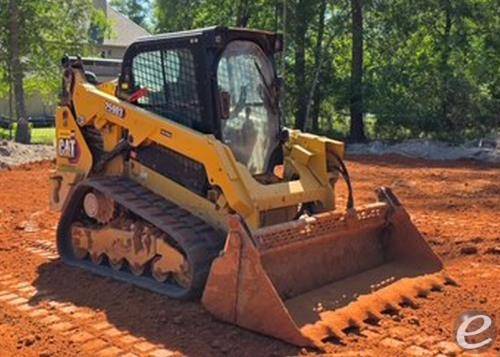

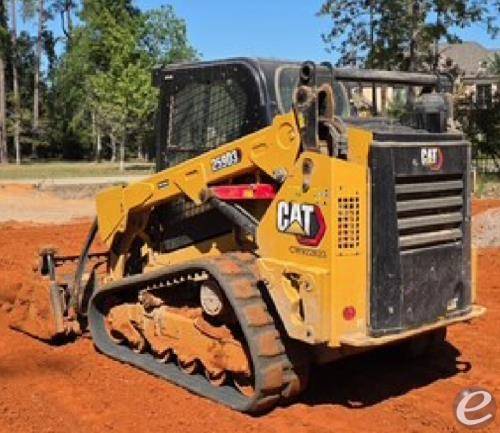

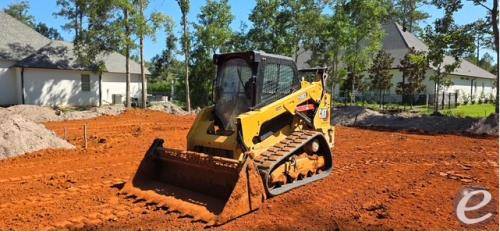

2023 Cat 259D3

$69,875 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Sales

ADDRESS
National Lift Equipment
300 Pond St.
BristolPennsylvania 19007
ATTRIBUTES
STOCK #:
148892
YEAR:
2023
Manufacturer:
MODEL #:
CONDITION:
Used
HOUR METER:
1095
UNIT LOCATION:
Pennsylvania [19007]
POST DATE:
4/18/2026
  • Engine
    • Engine Model: Cat C3.3B DIT (turbo)
    • Net Power: 74.3 HP (55.4 kW)
    • Gross Power: 78.2 HP (58.4 kW)
    • Displacement: 203 in³ (3.3 L)
    • Torque, Maximum: 195 lb-ft (265 Nm) @ 1,500 rpm
    • Rated Speed: 2,400 rpm
  • Weights
    • Operating Weight: 8,945 lb
  • Dimensions
    • Length - Track on the Ground: 57.1 inches
    • Overall Length: 133.4 inches
    • Width: 66 inches
    • Height: 83.1 inches
    • Wheelbase: 53 inches
  • Capacities
    • Fuel Tank: 27.7 gallons
    • Cooling System: 3.3 gallons
    • Hydraulic System (including tank): 14.5 gallons
    • Hydraulic Tank: 10.3 gallons
  • Performance
    • Tipping Load: 6,653 lb
    • Operating Capacity at 35% Tipping Load: 2,329 lb
    • Operating Capacity at 50% Tipping Load: 3,326 lb
    • Ground Pressure: 4.9 psi
    • Travel Speed - Forward: 8.4 mph
    • Travel Speed - Reverse: 8.4 mph
  • Hydraulic System
    • Loader Hydraulic Flow - Standard - Maximum Flow: 23 gal/min
    • Loader Hydraulic Flow - High Flow - Maximum Flow: 32 gal/min
    • Loader Hydraulic Pressure: 3,335 psi
  • Tracks
    • Track Width: 15.7 inches
