Equipment Description
Spec Sheet
  • GENERAL SPECIFICATIONS
    • Model: CARRYALL 700
    • Manufacturer: Club Car
    • Subtype: Personnel & Burden Carriers
  • DIMENSIONS
    • Total Vehicle Height: 47.5 inches
    • Total Vehicle Length: 138 inches
    • Total Vehicle Width: 49 inches
    • Wheelbase: 101.5 inches
    • Front Tread: 36.5 inches
    • Rear Tread: 39.5 inches
    • Ground Clearance: 5.5 inches
    • Load Bed Length: 78 inches
    • Load Bed Width: 49 inches
    • Load Bed Height: 9.5 inches
  • WEIGHT & CAPACITY
    • Vehicle Weight (without batteries): 1050 lbs
    • Vehicle Load Capacity: 1200 lbs
    • Bed Load Capacity: 800 lbs
    • Towing Capacity: 1500 lbs
    • Seating Capacity: 2
  • PERFORMANCE
    • Top Speed: 17 mph
  • POWERTRAIN
    • Engine: 429 cc single-cylinder
    • Power Output: 14 hp
    • Fuel Type: Gasoline or Electric
    • Drivetrain: Rear-wheel drive
    • Transmission: Continuously variable transmission (CVT)
  • CHASSIS
    • Brakes: Four-wheel mechanical drum
    • Steering: Self-compensating, double reduction helical rack and pinion
    • Frame Material: Aluminum I-Beam
    • Suspension Front: Independent leaf spring with dual hydraulic shocks
    • Suspension Rear: Semi-independent leaf spring with dual hydraulic shocks
    • Wheel and Tire Size: 18 x 8.5-8
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

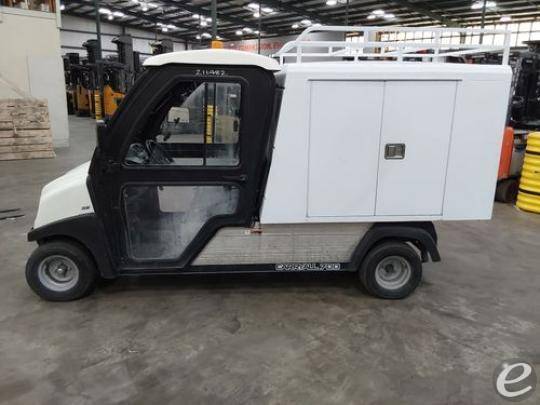

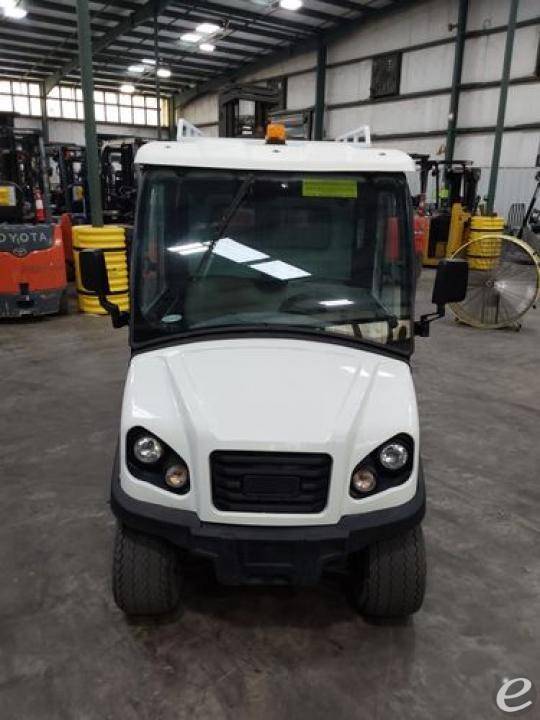

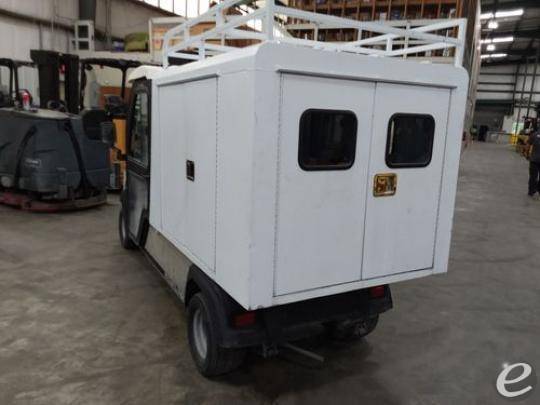

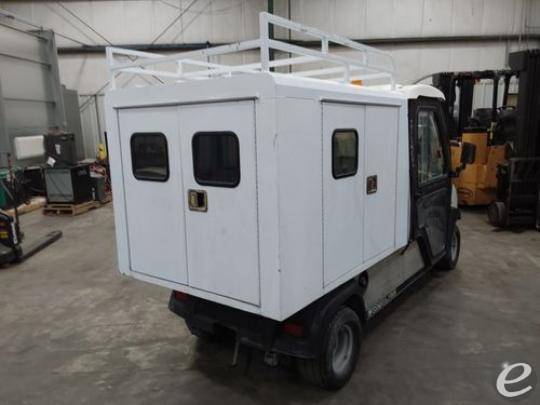

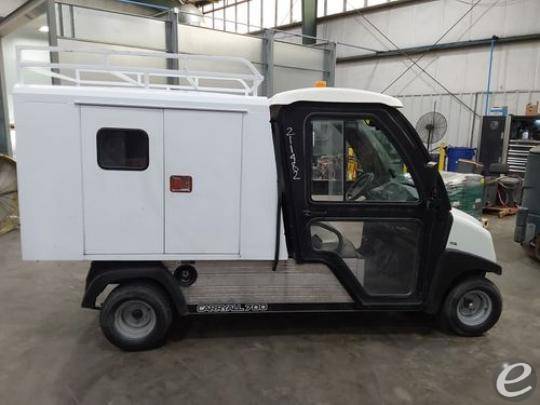

2019 Club Car CARRYALL 700

personnel & burden carriers

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Russell Equipment
1793 Enterprise Parkway
TwinsburgOhio 44087
ATTRIBUTES
STOCK #:
211482
YEAR:
2019
Manufacturer:
MODEL #:
UNIT LOCATION:
Ohio [44087]
POST DATE:
3/2/2026
