Equipment Description

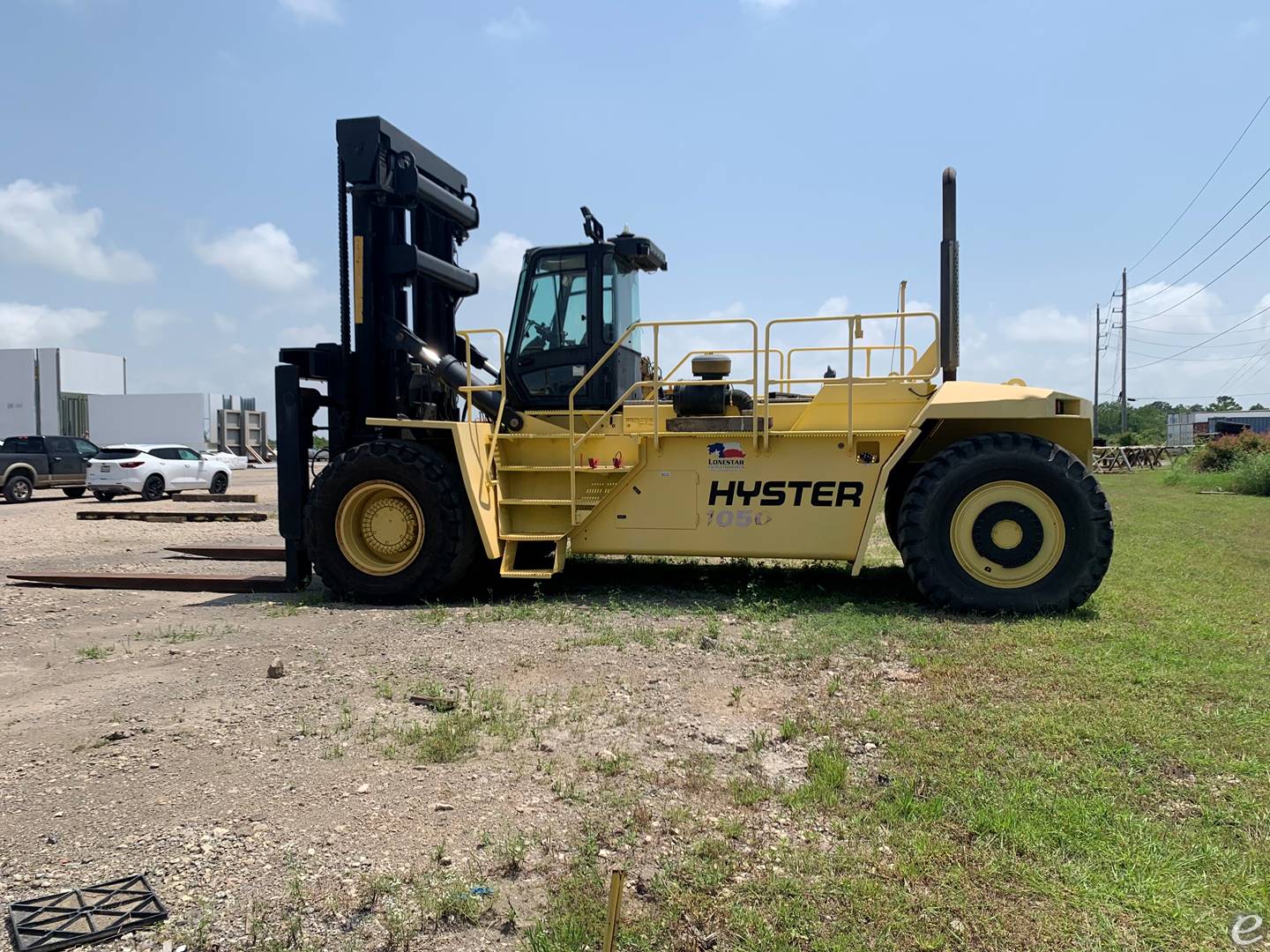

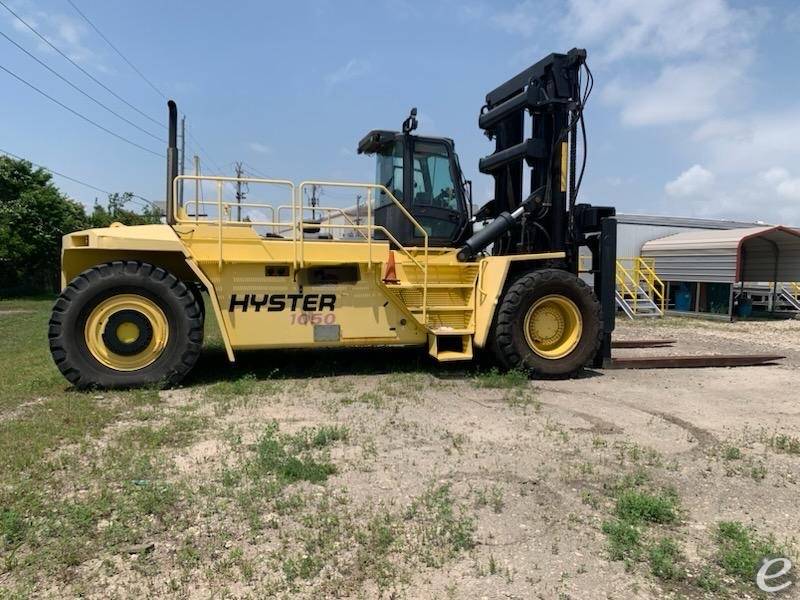

2008 HYSTER H1050HD The Hyster H1050HD is a high-capacity forklift, often referred to as a "Big Truck," designed for heavy-duty applications. It's known for its robust construction and ability to handle significant loads, including container handling. These forklifts are used in various industries like timber yards, ports, concrete plants, and steel mills. Details: 105,000 LB Capacity @ 48'' load center, 2 Stage mast 173'' of lift, Side shift, fork position, 12' Forks, Cummins diesel, Cab, with 4,800 hours. https://www.ritchiespecs.com/model/hyster-h1050hd-forklift Fuel Type: Diesel Length to Fork Face: 26.89 ft Overall Width: 13.78 ft Overall Height (Mast Lowered): 16.93 ft Wheelbase: 17.67 ft Ground Clearance:18.59in Height To Top Of Overhead Guard:12.73ft in Max Fork Height: 14.47 ft Gradeability: 44% Turning Radius: 25.57 ft Mast Tip Forward: 6degrees Mast Tip Rear: 10degrees Max Fork Spread: 106.5in Load Capacity: 105000lb Lift Speed: 51ft/min Load Center: 48in Lower Speed: 98ft/min Emission Tier Level: TIER 4F Number Of Cylinders: 6 Engine Make: Cummins Engine Model: QSL 9 Power: 350hp Torque: 1200lb ft Power Measured @ 2100rpm Displacement: 543.2cu in Alternator: 120amps Def Tank Capacity: 15gal Operational Weight: 126611lb Tire Type: Pneumatic Max Speed: 11.7mph Oil System Fluid Capacity: 26.5gal Drawbar Pull: 100619lb Fuel Capacity: 219gal Front Tire Size: 18.00 x 25-40PR Hydraulic System Fluid Capacity: 174gal Rear Tire Size: 18.00 x 25-40PR Axle Load - Front: 217353lb Axle Load - Rear: 14259lb Drive System: Powershift Transmission Number Of Forward / Reverse Speeds: 4 / 4 Transmission Type: SOH TE-32 Service Brake: Oil immersed (wet) disc Parking Brake: Spring apply, dry disc

Spec Sheet

Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

General Information
- Model Number: H1050HD
- Manufacturer: Hyster
- Type: Forklift
- Subtype: Pneumatic Tire 4 Wheel Sit Down
Powertrain
- Fuel Type: Diesel
- Engine Type: Diesel Engine
- Transmission: Powershift
Dimensions
- Overall Width: Approximately 8 ft
- Overall Length (without forks): Approximately 16 ft
- Height to Top of Overhead Guard: Approximately 10 ft
Performance
- Rated Load Capacity: 22,000 lbs
- Travel Speed (Loaded): Approximately 14 mph
- Travel Speed (Unloaded): Approximately 15 mph
- Lifting Speed: Approximately 70 ft/min
Operational Specs
- Steering Type: Power Steering
- Brake Type: Hydraulic Wet Disc
Other Features
- Safety Features: Operator Presence System, Backup Alarm
- Operator Comfort: Adjustable Seat, Ergonomic Controls

2008 Hyster H1050HD

pneumatic tire 4 wheel sit down diesel

$399,500 USD

Instant Quote Eligible Listing - CLICK HERE!

CONTACT INFO

Name:

Barkley Lindsey

Phone:

713-999-0065

Fax:

713-670-8703

Website:

Large Lift Rentals

ADDRESS

Large Lift Rentals
7942 Rand St
Houston, Texas 77028

ATTRIBUTES

STOCK #:

S-GH-39114

YEAR:

2008

Manufacturer:

Hyster

MODEL #:

H1050HD

CAPACITY:

105000

FUEL:

Diesel

SUBCATEGORY:

Pneumatic Tire 4 Wheel Sit Down

MAST TYPE:

Two Stage

SIDE SHIFTER:

Yes

CONDITION:

Used

HOUR METER:

4800

UNIT LOCATION:

Texas [77028]

DESCRIPTION:

2008 HYSTER H1050HD Disel 105k

POST DATE:

8/14/2026

Reviews

Useful

Not

The H1050HD forklift from Hyster is a reliable piece of equipment that really gets the job done. Having spent a summer working in a warehouse, I found this forklift easy to maneuver, even in cramped spaces. The pneumatic tires provided solid traction on uneven surfaces, making daily tasks a lot smoother. It handled heavy loads without breaking a sweat, which definitely made my life easier during those busy weeks. The diesel engine seemed to have plenty of power, which was a plus when I needed to tackle some of the heavier jobs. Overall, it’s a solid choice for anyone needing a dependable forklift in their operations.

Review by Jake Thompson (1/14/2026)

General Information
- Model Number: H1050HD
- Manufacturer: Hyster
- Type: Forklift
- Subtype: Pneumatic Tire 4 Wheel Sit Down
Powertrain
- Fuel Type: Diesel
- Engine Type: Diesel Engine
- Transmission: Powershift
Dimensions
- Overall Width: Approximately 8 ft
- Overall Length (without forks): Approximately 16 ft
- Height to Top of Overhead Guard: Approximately 10 ft
Performance
- Rated Load Capacity: 22,000 lbs
- Travel Speed (Loaded): Approximately 14 mph
- Travel Speed (Unloaded): Approximately 15 mph
- Lifting Speed: Approximately 70 ft/min
Operational Specs
- Steering Type: Power Steering
- Brake Type: Hydraulic Wet Disc
Other Features
- Safety Features: Operator Presence System, Backup Alarm
- Operator Comfort: Adjustable Seat, Ergonomic Controls
