  • Model Number: GC33S-9
  • Manufacturer: Doosan
  • Type: Forklift
  • Subtype: Man Down 3 & 4 Wheel SwingMast Gas/Electric
  • Fuel Type Used: LP Gas
  • General Dimensions
    • Overall Length: 94.5 inches (varies depending on fork length)
    • Overall Width: 42.2 inches
    • Height to Top of Overhead Guard: 83 inches
    • Wheelbase: 58 inches
    • Ground Clearance: 4.3 inches
    • Turning Radius: 87 inches
  • Capacity
    • Load Capacity: 6,700 lbs
    • Load Center: 24 inches
  • Performance
    • Travel Speed (Full Load): 11.2 mph
    • Lift Speed (Full Load): 78 ft/min
    • Lowering Speed (Full Load): 98 ft/min
    • Drawbar Pull: 3,970 lbs
  • Engine Specifications
    • Engine Model: G424FE
    • Engine Power: 51 hp
    • Number of Cylinders: 4
    • Fuel Tank Capacity: 33 lbs (LP Gas)
  • Tires
    • Tire Type: Pneumatic
    • Number of Wheels: 4
    • Front Tire Size: 21 x 7 x 15 inches
    • Rear Tire Size: 16 x 6 x 10.5 inches
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical Lever Type
  • Hydraulic System
    • Hydraulic Pump Type: Gear Pump
    • Hydraulic System Pressure: 3,000 psi

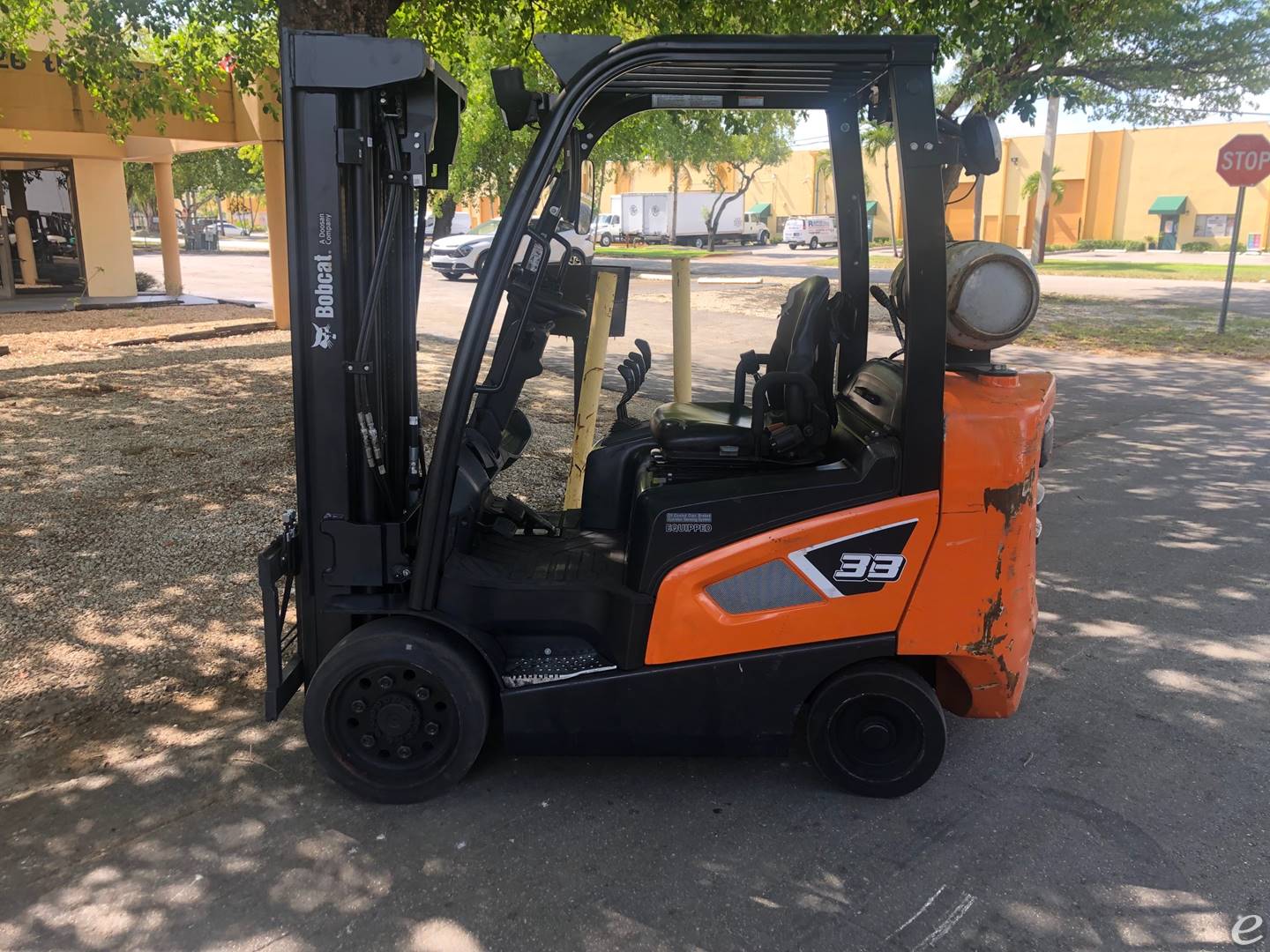

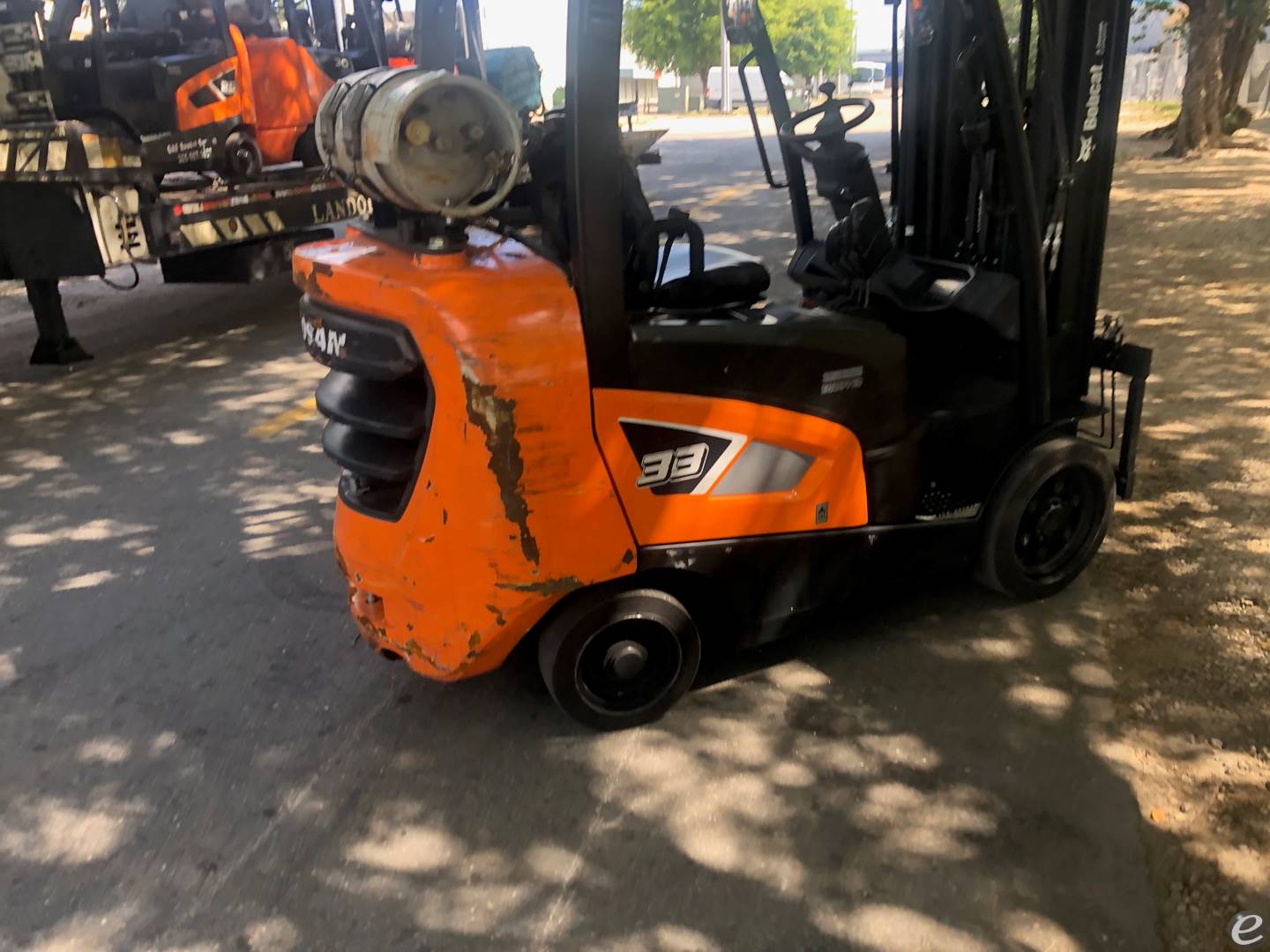

2020 Doosan GC33S-9

cushion tire 4 wheel sit down (indoor warehouse) lp gas

$17,500 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Gary Foster
Phone:

ADDRESS
GAF Equipment Inc. - Hialeah
8085 West 26th Court
HialeahFlorida 33016
ATTRIBUTES
YEAR:
2020
Manufacturer:
MODEL #:
CAPACITY:
6500
FUEL:
MAST TYPE:
MAST HEIGHT:
85 / 189 in
CONDITION:
Used
HOUR METER:
6255
UNIT LOCATION:
Florida [33016]
DESCRIPTION:
6255 hours, 4 way to carriage, super clean truck
POST DATE:
11/1/2025
Reviews
Useful
Not

The Doosan GC33S-9 is a solid forklift that really gets the job done without too much fuss. I remember using it in a busy warehouse and it maneuvered through tight spaces like a dream, making my job a lot easier. The gas engine fires up quickly, which is a huge plus, especially during those early morning shifts when everyone is rushing to get things sorted out. I've found it handles heavy loads well, and the swing mast feature is a lifesaver when you need to shift stuff around without worrying about hitting something. If you're looking for reliability and ease of use, this one’s worth considering.


Review by Mike Johnson (9/22/2025)

  • Model Number: GC33S-9
  • Manufacturer: Doosan
  • Type: Forklift
  • Subtype: Man Down 3 & 4 Wheel SwingMast Gas/Electric
  • Fuel Type Used: LP Gas
  • General Dimensions
    • Overall Length: 94.5 inches (varies depending on fork length)
    • Overall Width: 42.2 inches
    • Height to Top of Overhead Guard: 83 inches
    • Wheelbase: 58 inches
    • Ground Clearance: 4.3 inches
    • Turning Radius: 87 inches
  • Capacity
    • Load Capacity: 6,700 lbs
    • Load Center: 24 inches
  • Performance
    • Travel Speed (Full Load): 11.2 mph
    • Lift Speed (Full Load): 78 ft/min
    • Lowering Speed (Full Load): 98 ft/min
    • Drawbar Pull: 3,970 lbs
  • Engine Specifications
    • Engine Model: G424FE
    • Engine Power: 51 hp
    • Number of Cylinders: 4
    • Fuel Tank Capacity: 33 lbs (LP Gas)
  • Tires
    • Tire Type: Pneumatic
    • Number of Wheels: 4
    • Front Tire Size: 21 x 7 x 15 inches
    • Rear Tire Size: 16 x 6 x 10.5 inches
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical Lever Type
  • Hydraulic System
    • Hydraulic Pump Type: Gear Pump
    • Hydraulic System Pressure: 3,000 psi
