Equipment Description
JCB Diesel Engine, 2WD, 2 Wheel Steer, Pneumatic Tires, 3 Stage Mast, Flashing Beacon, Work Lights, Auxiliary Hydraulics, Quick Tach, 60" Side-Shifting Fork Carriage w/ 48" Forks, Fleet Maintained
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: 940-2
    • Manufacturer: JCB
    • Type: Forklift
    • Subtype: Rough Terrain (Vertical Mast)
    • Fuel Type Used: Diesel
  • Engine
    • Engine Type: Diesel
    • Displacement: Approximately 268 cubic inches
    • Power Output: Approximately 74 horsepower
  • Dimensions & Weight
    • Total Length: Approximately 178 inches
    • Total Width: Approximately 92 inches
    • Overall Height: Approximately 109 inches
    • Wheelbase: Approximately 86 inches
    • Operating Weight: Approximately 15,000 lbs
  • Capacity
    • Load Capacity: Approximately 8,800 lbs
    • Fuel Tank Capacity: Approximately 30 gallons
  • Performance
    • Travel Speed (Forward): Approximately 15 mph
    • Drawbar Pull: Approximately 12,000 lbs
    • Gradeability: Up to 45%
  • Tires
    • Front Tires: 15.5-25 12PR
    • Rear Tires: 15.5-25 12PR
  • Brakes
    • Braking System: Hydraulically Activated
    • Parking Brake: Manual
  • Transmission
    • Type: Powershift
    • Number of Gears: 4 Forward / 4 Reverse
  • Hydraulic System
    • System Type: Open Center
    • Pump Flow: Approximately 23 gallons per minute
  • Forks
    • Fork Length: Varies
    • Fork Width: Approximately 4 inches

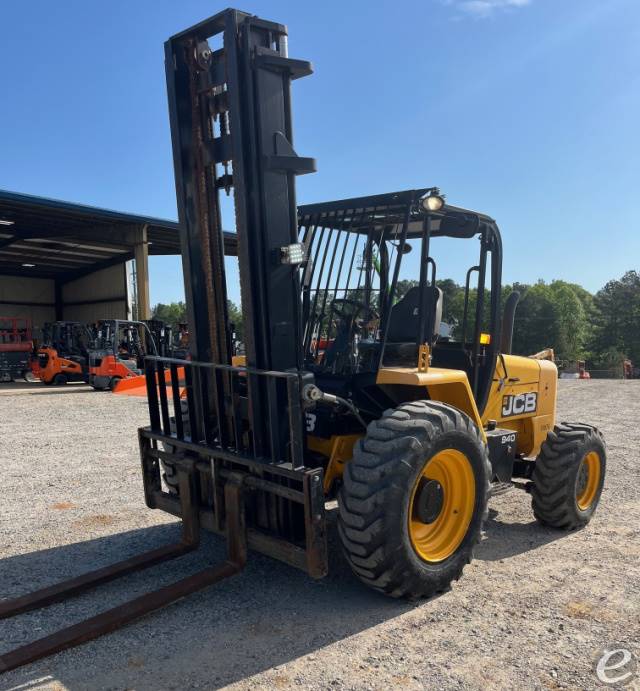

2019 JCB 940-2

Buy or Rent

rough terrain (vertical mast) diesel

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Supreme Forklift & Equipment
25250 S Power Rd
Queen CreekArizona 85142
ATTRIBUTES
YEAR:
2019
Manufacturer:
MODEL #:
CAPACITY:
8000
FUEL:
MAST TYPE:
MAST HEIGHT:
264 in
SIDE SHIFTER:
Yes
CONDITION:
Used/Rental
UNIT LOCATION:
Arizona [85142]
POST DATE:
4/24/2026
Reviews
Useful
Not

The JCB 940-2 rough terrain forklift has honestly made a difference on my construction site. We had a job to move some seriously heavy materials across uneven ground, and this beast handled it like a champ. The diesel engine packs enough punch to get through mud and gravel without breaking a sweat, which was essential when we were all knee-deep in muck last week. The vertical mast provides great visibility, allowing me to maneuver with confidence even in tight spots. It's a tough machine that gets the job done, and I can’t help but remember the last time we tried to haul pallets with a lesser model and ended up frustrated. Now, I can't imagine working without it.


Review by Jake Thompson.

  • General Specifications
    • Model Number: 940-2
    • Manufacturer: JCB
    • Type: Forklift
    • Subtype: Rough Terrain (Vertical Mast)
    • Fuel Type Used: Diesel
  • Engine
    • Engine Type: Diesel
    • Displacement: Approximately 268 cubic inches
    • Power Output: Approximately 74 horsepower
  • Dimensions & Weight
    • Total Length: Approximately 178 inches
    • Total Width: Approximately 92 inches
    • Overall Height: Approximately 109 inches
    • Wheelbase: Approximately 86 inches
    • Operating Weight: Approximately 15,000 lbs
  • Capacity
    • Load Capacity: Approximately 8,800 lbs
    • Fuel Tank Capacity: Approximately 30 gallons
  • Performance
    • Travel Speed (Forward): Approximately 15 mph
    • Drawbar Pull: Approximately 12,000 lbs
    • Gradeability: Up to 45%
  • Tires
    • Front Tires: 15.5-25 12PR
    • Rear Tires: 15.5-25 12PR
  • Brakes
    • Braking System: Hydraulically Activated
    • Parking Brake: Manual
  • Transmission
    • Type: Powershift
    • Number of Gears: 4 Forward / 4 Reverse
  • Hydraulic System
    • System Type: Open Center
    • Pump Flow: Approximately 23 gallons per minute
  • Forks
    • Fork Length: Varies
    • Fork Width: Approximately 4 inches
