Equipment Description

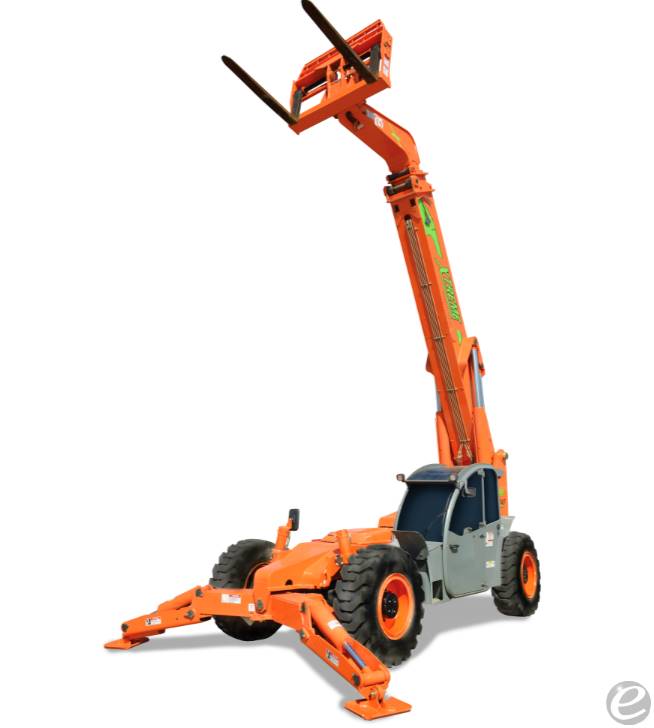

New Xtreme XR2045-C Telehandler with 20,000 lb. Capacity (Less de-rate), 45' of max lift height, 27' 4" of max forward reach, Cummins 3.8L Diesel engine - 134 hp T4f, Dana 213 axles, Dana T20000 transmission, 72gal Fuel tank, foam filled tires, suspension seat, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)

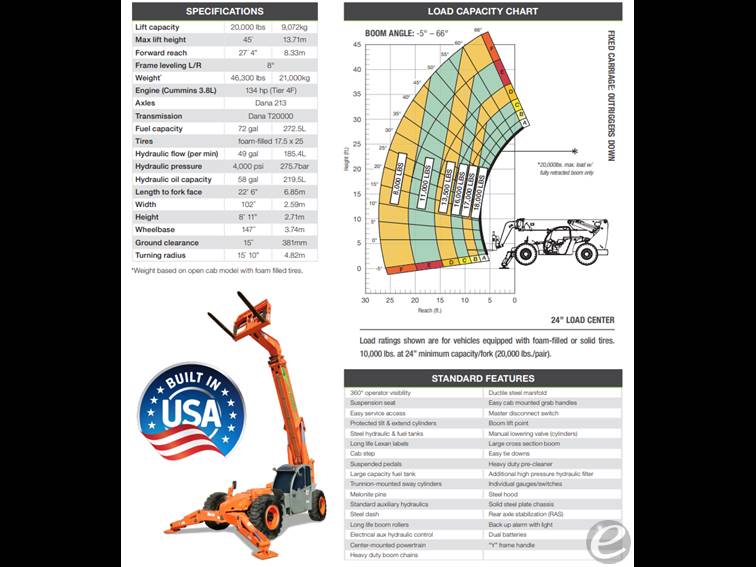

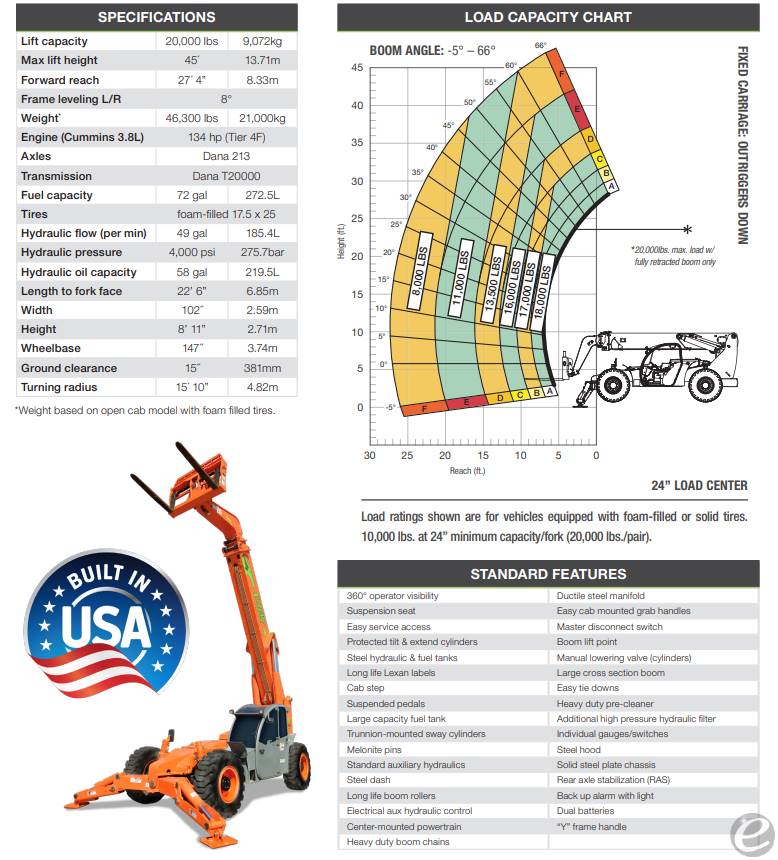

Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Model Number: XR2045-C
  • Manufacturer: Xtreme
  • Type: Telehandler
  • Fuel Type Used: Diesel
  • Dimensions
    • Overall Length: 20 feet
    • Overall Width: 8 feet
    • Overall Height: 8.5 feet
    • Ground Clearance: 1.5 feet
    • Wheelbase: 10 feet
  • Engine Specifications
    • Engine Type: Turbocharged Diesel Engine
    • Engine Power: 150 horsepower
    • Displacement: 6.7 liters
    • Number of Cylinders: 6
  • Performance
    • Max Lift Capacity: 20,000 lbs
    • Load Center: 2 feet
    • Top Speed: 25 mph
    • Turning Radius: 14 feet
  • Tires
    • Tire Type: Pneumatic Tires
    • Tire Size Front: 17.5-25
    • Tire Size Rear: 17.5-25
  • Hydraulic System
    • Hydraulic Pump Type: Gear pump
    • Hydraulic System Pressure: 3,800 psi
    • Hydraulic Reservoir Capacity: 50 gallons
  • Weights
    • Operating Weight: 31,000 lbs
  • Other Features
    • Transmission Type: Powershift
    • Number of Speeds: 4 forward, 3 reverse
    • Operator Cab: Enclosed with heating and air conditioning
    • Steering Options: 4-wheel, 2-wheel, crab steering

Xtreme XR2045-C

New

diesel

Call for price

CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
POWER:
Height:
45 ft
CAPACITY:
20000
MAX FORWARD REACH:
27.4
CONDITION:
New
UNIT LOCATION:
Colorado [80022]
DESCRIPTION:
NEW XTREME XR2045-C 20K TELEHANDLER WITH 45' MAX HEIGHT
POST DATE:
6/8/2026
Reviews
Useful
Not

The Xtreme XR2045-C telehandler is quite a workhorse. I remember when my buddy Joe decided to rent one for his construction site, and we ended up moving piles of materials with ease. The diesel engine gave it a solid kick, powering through the tougher jobs without breaking a sweat. What really impressed me was how easy it was to maneuver, even in tight spots. It's great for getting around a busy site, and the lift capacity made unloading trucks a breeze. If you're looking for something reliable that won’t just sit around when the workload gets heavy, this model fits the bill. It certainly made our day a lot smoother!



Review by Mark Thompson (7/6/2025)

  • Model Number: XR2045-C
  • Manufacturer: Xtreme
  • Type: Telehandler
  • Fuel Type Used: Diesel
  • Dimensions
    • Overall Length: 20 feet
    • Overall Width: 8 feet
    • Overall Height: 8.5 feet
    • Ground Clearance: 1.5 feet
    • Wheelbase: 10 feet
  • Engine Specifications
    • Engine Type: Turbocharged Diesel Engine
    • Engine Power: 150 horsepower
    • Displacement: 6.7 liters
    • Number of Cylinders: 6
  • Performance
    • Max Lift Capacity: 20,000 lbs
    • Load Center: 2 feet
    • Top Speed: 25 mph
    • Turning Radius: 14 feet
  • Tires
    • Tire Type: Pneumatic Tires
    • Tire Size Front: 17.5-25
    • Tire Size Rear: 17.5-25
  • Hydraulic System
    • Hydraulic Pump Type: Gear pump
    • Hydraulic System Pressure: 3,800 psi
    • Hydraulic Reservoir Capacity: 50 gallons
  • Weights
    • Operating Weight: 31,000 lbs
  • Other Features
    • Transmission Type: Powershift
    • Number of Speeds: 4 forward, 3 reverse
    • Operator Cab: Enclosed with heating and air conditioning
    • Steering Options: 4-wheel, 2-wheel, crab steering
