Equipment Description

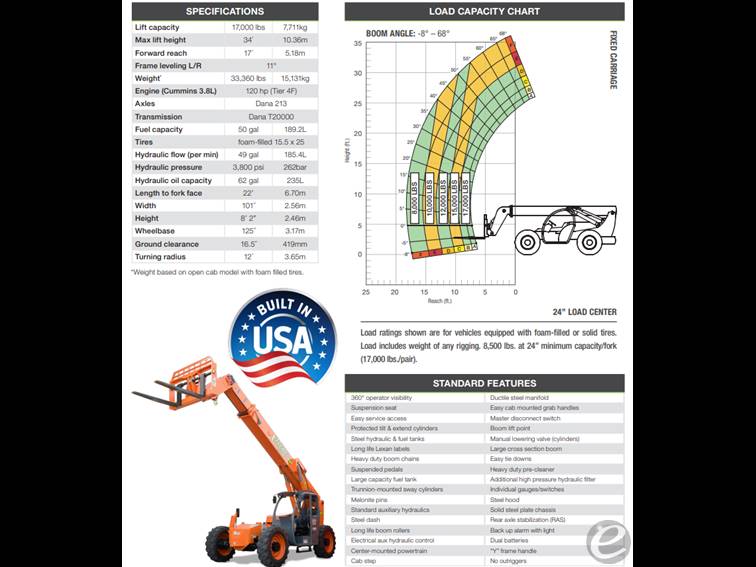

New Xtreme XR1734-C Telehandler with 17,000 lb. Capacity (Less de-rate), 34' of max lift height, 17' of max forward reach, Cummins 3.8L Diesel engine - 120 hp T4f, Dana 213 axles, Dana T20000 transmission, 50gal Fuel tank, foam filled tires, suspension seat, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)
Spec Sheet
  • General Specifications
    • Model Number: XR1734-C
    • Manufacturer: Xtreme
    • Type: Telehandler
    • Fuel Type: Diesel
  • Engine Specifications
    • Engine Power: 74 HP
    • Engine Model: Cummins QSF 3.8
    • Cooling System: Liquid Cooled
  • Performance
    • Maximum Lift Capacity: 17,000 lbs
    • Load Moment Indicator: Yes
  • Dimensions
    • Overall Length: 21 feet
    • Overall Width: 8 feet
    • Overall Height: 8.5 feet
    • Ground Clearance: 1.6 feet
    • Wheelbase: 11 feet
  • Operational Specifications
    • Steering: 4-Wheel Hydraulic Steering
    • Transmission: Powershift
    • Forward Gears: 3
    • Reverse Gears: 2
    • Drive: 4x4
  • Hydraulic System
    • System Pressure: 3,625 PSI
    • Pump Type: Variable Displacement Axial Piston
  • Brakes
    • Service Brake: Wet Disc Brakes
    • Parking Brake: Automatic Spring Applied
  • Tires
    • Tire Size: 17.5-25
    • Tread Pattern: Off-Road
  • Forks
    • Fork Length: Varies
    • Fork Positioning: Manual
  • Capacities
    • Fuel Tank Capacity: 52 gallons
    • Hydraulic Tank Capacity: 37 gallons
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

Xtreme XR1734-C

New

diesel

Call for price

Western Material Handling
CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
34 ft
CAPACITY:
17000
MAX FORWARD REACH:
17
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:
NEW XTREME XR1734-C 17K TELEHANDLER WITH 34' MAX HEIGHT
POST DATE:
6/5/2025
Reviews
Useful
Not

The Xtreme XR1734-C telehandler has been a solid addition to our equipment lineup. We've put it through its paces on a couple of job sites, and it's handled everything from lifting heavy materials to maneuvering in tight spaces remarkably well. One day, while trying to unload some ridiculously heavy pallets, I was pleasantly surprised by how smoothly it lifted them without a hitch. Its diesel engine packs a punch, which definitely helps when you’re on a busy site. Not to mention, it's been great on fuel consumption compared to other machines I've used before. Overall, this telehandler is practical and reliable, making tough tasks feel manageable.


Review by Jake Thompson (7/14/2024)
