Xtreme XR1585-C

diesel

Call for priceNew
Western Material Handling
CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
85 ft
CAPACITY:
15000
MAX FORWARD REACH:
67
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:

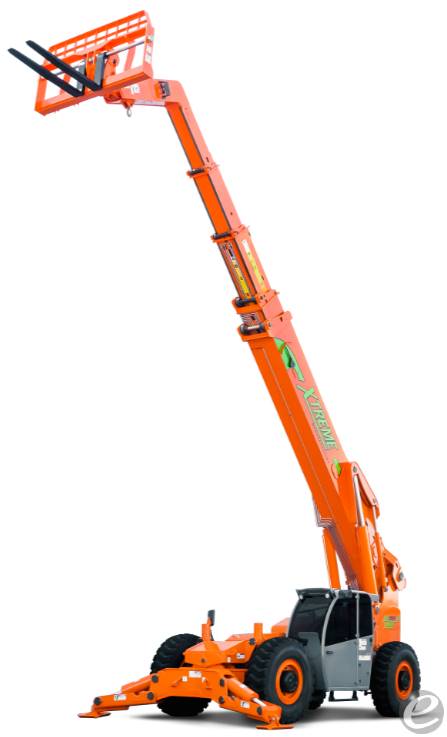

NEW XTREME XR1585-C 15K TELEHANDLER WITH 85' MAX HEIGHT
POST DATE:
12/5/2024
Equipment Description

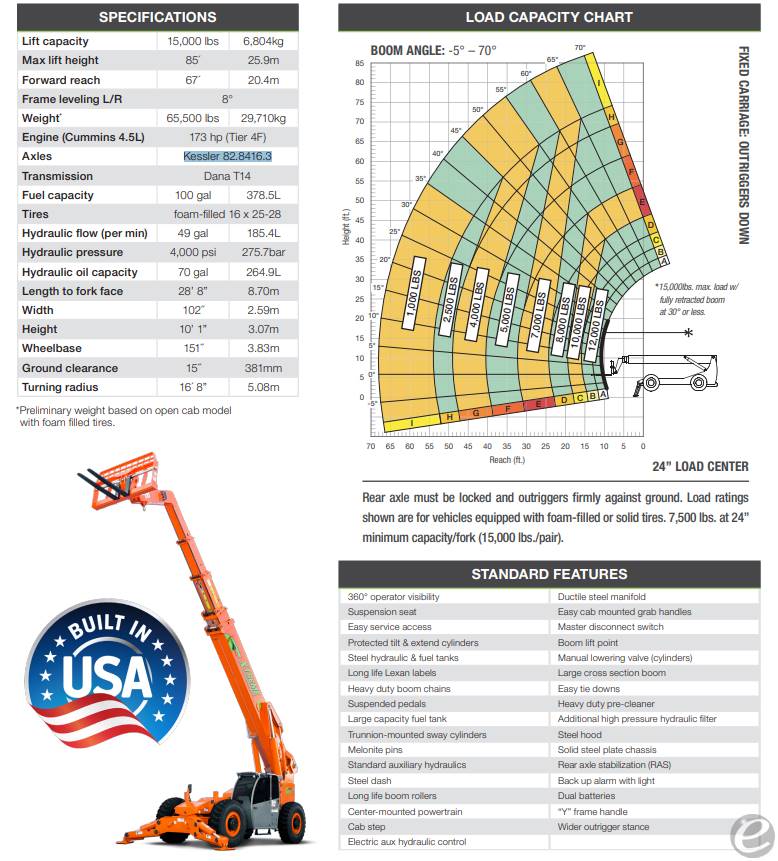

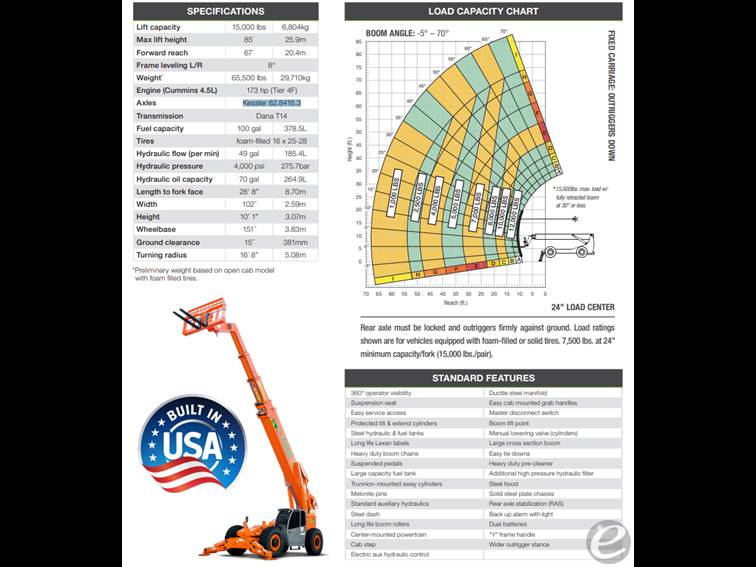

New Xtreme XR1585-C Telehandler with 15,000 lb. Capacity (Less de-rate), 85' of max lift height, 67' of max forward reach, Cummins 4.5L Diesel engine - 173 hp T4f, Kessler 82.8416.3 axles, Dana T14 transmission, 100gal Fuel tank, foam filled tires, suspension seat, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)
  • General Specifications
    • Model Number: XR1585-C
    • Manufacturer: Xtreme
    • Type: Telehandler
    • Fuel Type Used: Diesel
  • Engine
    • Engine Type: Diesel Engine
    • Horsepower: Approximately 150 hp
    • Engine Emission: Tier 4 final compliant
  • Performance
    • Maximum Lift Capacity: Approximately 15,000 lbs
    • Maximum Forward Reach: Approximately 85 feet
    • Travel Speed: Approximately 20 mph
  • Dimensions
    • Overall Length: Approximately 31 feet
    • Overall Width: Approximately 8 feet
    • Overall Height: Approximately 9 feet
    • Wheelbase: Approximately 12 feet
    • Ground Clearance: Approximately 18 inches
  • Tire Specifications
    • Tires: Rough Terrain Tires
    • Tire Size: Approximately 22 inches
  • Operational Features
    • Steering: 4-wheel drive
    • Braking System: Wet disc brakes
    • Cab Features: Enclosed cabin with air conditioning
  • Hydraulics
    • Hydraulic System Pressure: Approximately 3,500 psi
    • Hydraulic Tank Capacity: Approximately 45 gallons
  • Fork Specifications
    • Fork Length: Varies
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
