Xtreme XR3034-D

diesel

Call for priceNew
Western Material Handling
CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
34 ft
CAPACITY:
30000
MAX FORWARD REACH:
17.6
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:
NEW XTREME XR3034-D 30K TELEHANDLER WITH 34' MAX HEIGHT
POST DATE:
6/2/2025
Equipment Description

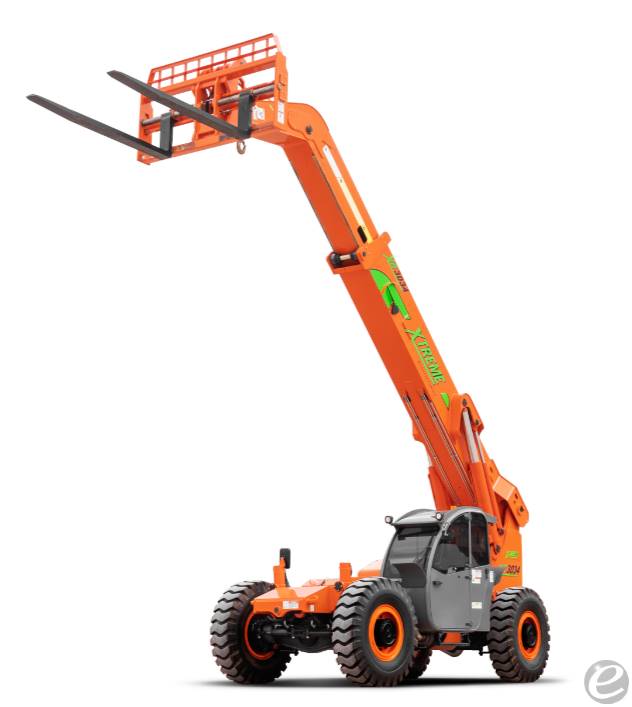

New Xtreme XR3034-D Telehandler with 30,000 lb. Capacity (Less de-rate), 34' of max lift height, 17' 6" of max forward reach, Cummins 4.5L Diesel engine - 173 hp T4f, Kessler 82.8416.3 axles, Dana T14 transmission, 58gal Fuel tank, foam filled tires, suspension seat, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)
  • Manufacturer: Xtreme
  • Model Number: XR3034-D
  • Type: Telehandler
  • Fuel Type Used: Diesel
  • Engine Specifications
    • Engine Type: Diesel Engine
    • Horsepower: 120 HP
    • Torque: 350 lb-ft
    • Transmission: Power Shift
  • Dimensions
    • Overall Length: 20 ft
    • Overall Width: 8 ft
    • Overall Height: 9 ft
    • Wheelbase: 10 ft
    • Ground Clearance: 15 in
  • Performance
    • Lifting Capacity: 6,500 lbs
    • Breakout Force: 20,000 lbs
    • Turning Radius: 15 ft
  • Weight
    • Operating Weight: 25,000 lbs
  • Tires
    • Tire Design: Rough Terrain
    • Tire Size: 20.5/25
  • Hydraulic System
    • Pump Type: Variable Displacement
    • Flow Rate: 30 GPM
  • Cab Features
    • Operator Seat: Adjustable with Air Suspension
    • Controls: Joystick Controls
    • Air Conditioning: Included
  • Additional Features
    • Fork Length: Varies
    • Attachments: Compatible with Multiple Attachments
    • Lighting: Full LED Lighting Package
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
