Equipment Description

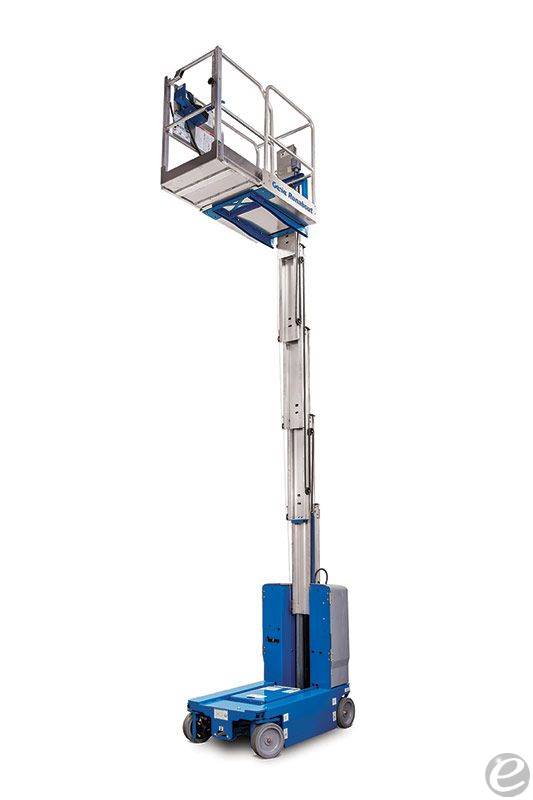

New Genie GR-20 Aerial Work Platform with vertical mast, 350 lb. Capacity, 24-volt battery system with 110volt onboard charger, Gated extension aluminum platform, Auxiliary platform lowering, Platform control guard, Platform load sense system, Proportional lift and drive, SmartLink dual zone control system, Dual wheel multi-disc brakes, Hinged rear ABS covers for easy access, Large forklift pockets access, Pothole protection, non-marking tires, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)
Spec Sheet
  • General Specifications
    • Manufacturer: Genie
    • Model Number: GR-20
    • Type: Scissor Lift
    • Subtype: Slab
  • Dimensions
    • Overall Length: 4 ft 5 in
    • Overall Width: 2 ft 7.5 in
    • Overall Height (Rails Lowered): 6 ft 6 in
    • Overall Height (Rails Raised): 7 ft 6 in
    • Platform Length: 3 ft 1.5 in
    • Platform Width: 2 ft 5.5 in
    • Ground Clearance: 2.5 in
    • Wheelbase: 3 ft 3.5 in
  • Performance
    • Lift Capacity: 350 lbs
    • Drive Speed (Lowered): 2.5 mph
    • Drive Speed (Elevated): 0.5 mph
    • Gradeability: 30%
    • Turning Radius (Inside): Zero
    • Turning Radius (Outside): 5 ft 1 in
  • Power
    • Power Source: Electric
    • Battery: 24V, 225Ah
    • Drive Motors: Dual DC
    • Hydraulic System Capacity: 1 gal
  • Weight
    • Total Weight: 2,451 lbs
