Equipment Description

Capacity 5500 lbs. @ 24 in. load center Dual Mode Max 79.8 in. Dual Mode Min. 57.6 in. Dual Mode Fork Spread Min 5.0 in. Dual Fork Mode Max 27.2 in. Fork Length (In) 42.0 in. Fork Spread 26.3 in Fork Thickness 1.97 in. (50MM) Fork Width 3.15 in. (80MM) Frame Width 42.0 in Horizontal Center of Gravity 7.9 in. Load Back Rest Height 80.0 in. Lost Load 7.7 in. Lower Hook bolt-on Maximum Flow 8.0 gpm Maximum Pressure 2250 psi Minimum Flow 4.0 gpm Min Truck Carriage Width Req 36.0 in. Mounting Class ITA II & III Recommended Flow 6.0 gpm Recommended Pressure 2000 psi Required Truck Aux Functions 2 FUNCTION Single Mode ID Max 27.2 in Single Mode ID Min 13.7 in. Single Mode OD Max 39.8 in. Single Mode OD Min 26.3 in. Total Shift 7.88 in. Total Weight 1214 lbs Vertical Center of Gravity 14.9 in

Multi Pallet Handlers

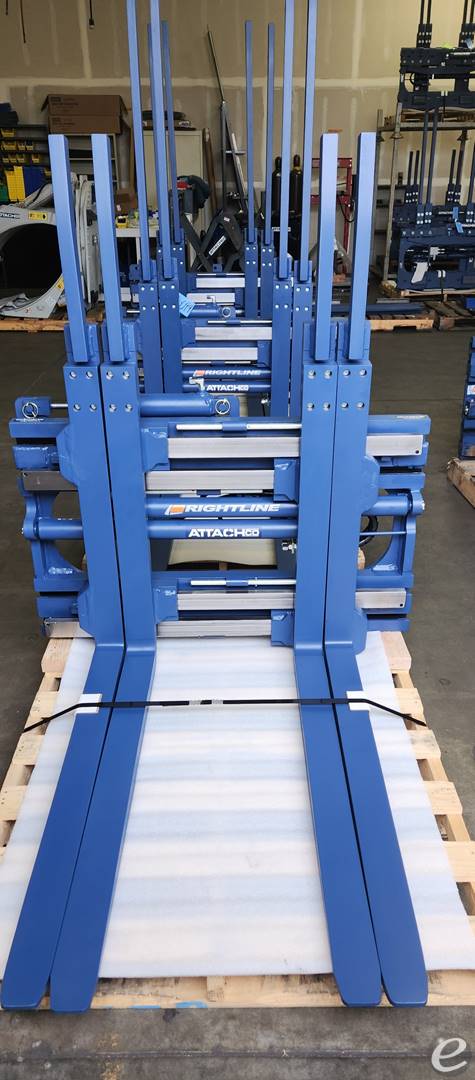

Name: 2016 Rightline LP5C-C5BZ-C
Brand: Rightline
SKU: SD-134
Price: 1 USD
Availability: InStock

For Rent

class ii

$1 USD per day

$1 USD per week

$1 USD per month

All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.

CONTACT INFO

Name:

Andrew Forde

Phone:

310-308-9893

Website:

ATTACHCO

ADDRESS

ATTACHCO
665 W Cowles St
Long Beach , California 90813

ATTRIBUTES

CAPACITY:

5500

CLASS:

SUBCATEGORY:

Multi Pallet Handlers

CONDITION:

Rental

LOCATION:

California [90813]

DESCRIPTION:

Class 2/3 Convertible

POST DATE:

11/17/2025
