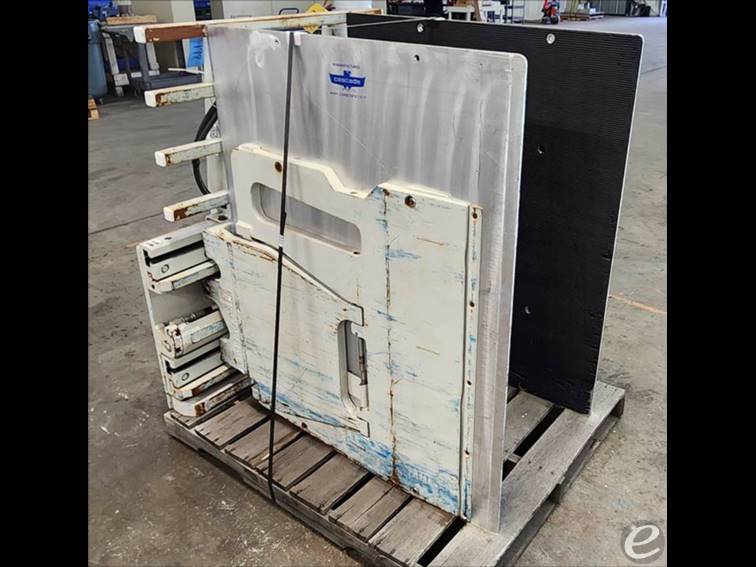

2022 Cascade R25D-CCS-35A

carton clamps

$5,500 USD
Instant Quote Eligible Listing - CLICK HERE!
ATTACHCO
CONTACT INFO
Name:
Andrew Forde
Phone:
Website:

ADDRESS
ATTACHCO
665 W Cowles St
Long Beach California 90813
ATTRIBUTES
STOCK #:
CC-192
YEAR:
2022
Manufacturer:
MODEL #:
CAPACITY:
2500
CLASS:
II
SUBCATEGORY:
SERIAL #:
2221259-T1
CONDITION:
Used
LOCATION:
California [90813]
DESCRIPTION:
Short Pads: 40" L x 48" H
POST DATE:
5/12/2025
Equipment Description
Arm/Pad Standard Articulating - Aluminum Backed Capacity 2500 lbs @ 24" Effective Thickness 5.0" Horizontal Center of Gravity 16.9" Lateral CG at Max Lat Offset 10.7" Load Back Rest Height 48" Maximum Flow 8 gpm Maximum Pressure 2300 psi Max Lateral Offset 13.5" Minimum Flow 5 gpm Min Truck Carriage Width Req 32.5" Mounting Type Quick Disconnect Class II Mounting Size Class II Opening Range 22" - 76" Measured In to In at Pivot Point Pad Facing 3/8" Thick Pad - Aluminum Pad, 55 Durometer Pad Size 48"Hx 40"L Product Function Carton Clamp Recommended Flow 5.5 gpm Required Truck Aux Functions 2 Sideshift Yes Size/Gen 25D Total Weight 1445 lbs Vertical Center of Gravity 13.5"
  • General Information:
    • Model Number: R25D-CCS-35A
    • Manufacturer: Cascade
    • Type: Attachment
    • Subtype: Carton Clamps
  • Dimensions:
    • Width: 55 inches
    • Height: 40 inches
    • Arm Length: Varies
  • Performance:
    • Capacity: 3,500 lbs
    • Opening Range: 16 inches to 74 inches
    • Clamp Force: Adjustable
  • Features:
    • Full-length Rubber-faced Pads
    • Aluminum Construction for Reduced Weight
    • Durable and High-Visibility Design
    • Adjustable Clamp Force Control
  • Compatibility:
    • Suitable for Various Forklift Brands
    • Designed for Handling Cartons, Appliances, White Goods
  • Operating Temperature:
    • Range: -4°F to 122°F
  • Hydraulic Requirements:
    • Minimum Pressure: 2000 PSI
    • Maximum Pressure: 2300 PSI
  • Weight:
    • Weight: 950 lbs
