Spec Sheet
  • General Information
    • Model Number: ETR230D
    • Manufacturer: Jungheinrich
    • Type: Forklift
    • Subtype: Electric Narrow Aisle Double Reach
  • Power & Drive
    • Fuel Type: Electric
    • Drive Motor Power: 7.5 HP
    • Lift Motor Power: 17.7 HP
  • Dimensions
    • Overall Length: 91 inches
    • Overall Width: 41.5 inches
    • Wheelbase: 57.5 inches
    • Ground Clearance: 3 inches
  • Weight
    • Service Weight (without battery): 8,800 lbs
    • Axle Load without Load, Front: 3,900 lbs
    • Axle Load without Load, Rear: 4,900 lbs
  • Performance
    • Load Capacity: 4,500 lbs
    • Travel Speed without Load: 7 mph
    • Lift Speed without Load: 75 feet/min
    • Lowering Speed without Load: 75 feet/min
    • Slope Gradient performance, Load/Unloaded: 6% / 12%
  • Fork Specifications
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 1.5 inches
    • Reach Distance: 22.5 inches
  • Tires
    • Tire Type, Front/Rear: Polyurethane
    • Tire Size, Front: 12 inches x 5 inches
    • Tire Size, Rear: 12 inches x 5 inches
  • Battery
    • Battery Voltage: 36 V
    • Battery Capacity: 775 Ah
  • Additional Features
    • Electric Steering
    • Regenerative Braking System
    • Operator Compartment: Stand-up Rider
    • Display for Operational Data
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

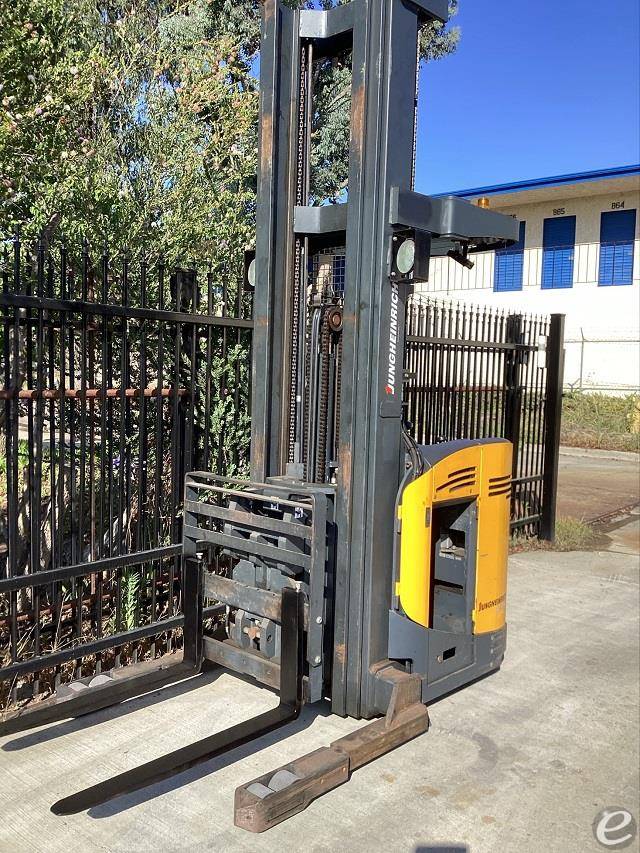

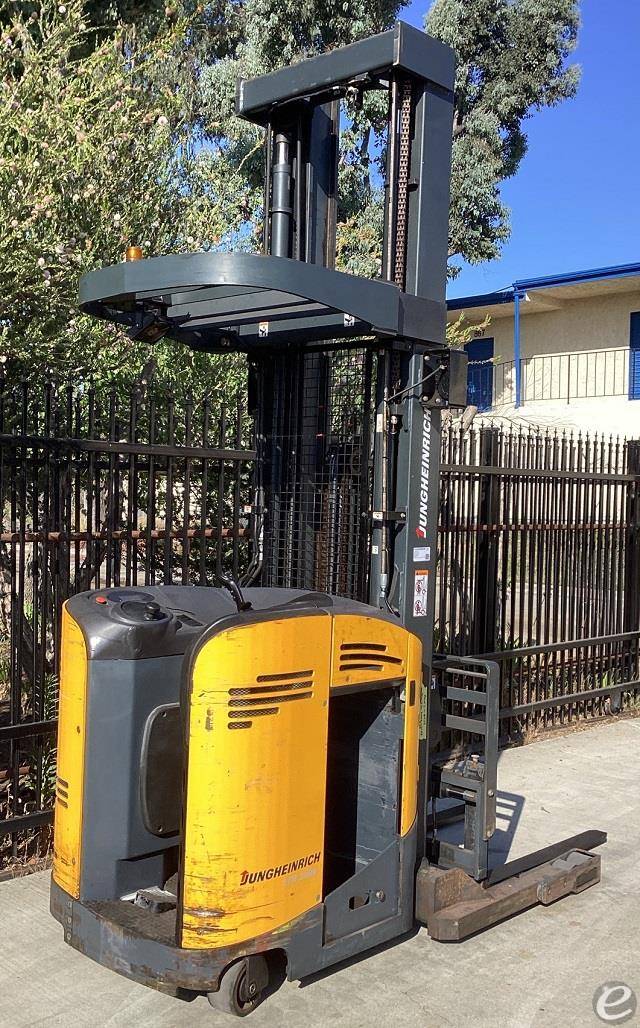

2013 Jungheinrich ETR230D

electric narrow aisle double reach electric

$32,500 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Quentin Murdock
Phone:

ADDRESS
Naumann Hobbs Material Handling
4335 E Wood St
PhoenixArizona 85040
ATTRIBUTES
STOCK #:
17113006
YEAR:
2013
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
MAST HEIGHT:
300 in
SERIAL #:
2JD3090039
CONDITION:
Used

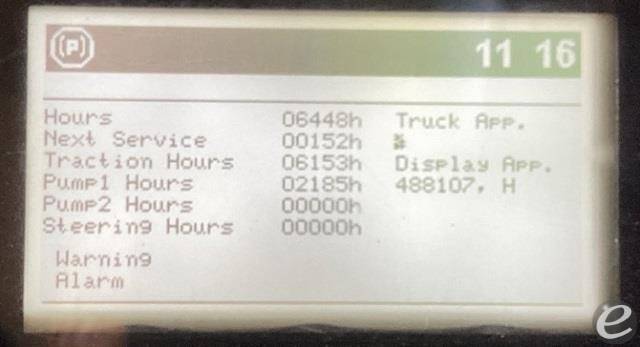

HOUR METER:
6448
UNIT LOCATION:
DESCRIPTION:
131" OAL, 42" FORKS, GOOD USED BATTERY W/1-YR WRTY..
POST DATE:
1/26/2026
Reviews
Useful
Not

The Jungheinrich ETR230D has been a real game-changer for our warehouse operations. I've been on the floor during some big inventory pushes, and this electric narrow aisle forklift has really shined. It zips around tight spaces with ease, which is a must when you’re navigating through crowded aisles. During one particularly hectic day, we managed to pull off some impressive stacking and retrieval without missing a beat, all thanks to its smooth maneuverability. The battery life holds up surprisingly well, making those long shifts feel less daunting. Overall, it's reliable, efficient, and has honestly made a noticeable difference in our daily workflow.


Review by Jake Thompson
