Equipment Description

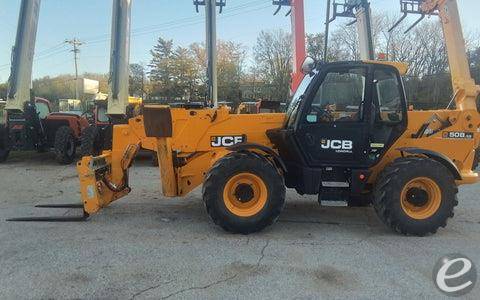

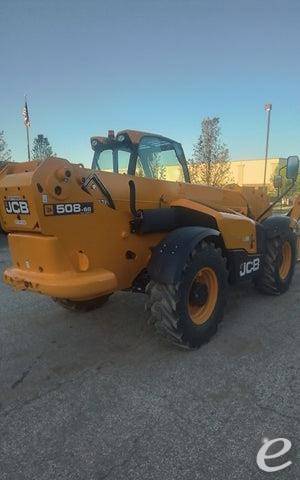

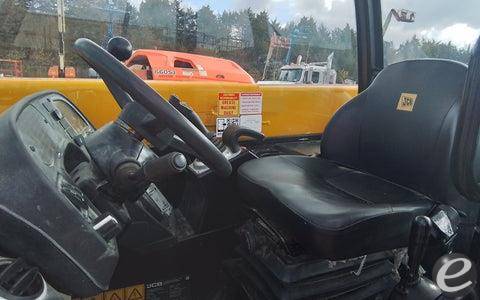

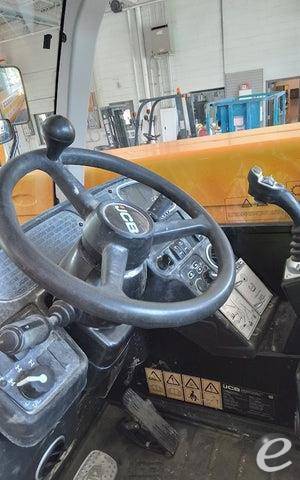

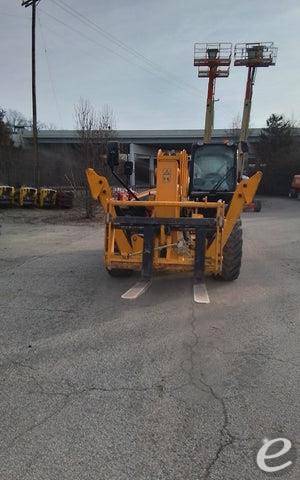

2021 JCB 508-66TC 8000 LB DIESEL TELESCOPIC FORKLIFT TELEHANDLER PNEUMATIC 4WD ENCLOSED CAB 1006 HOURS STOCK # BF91369179-HLOH, Attachment: Fork Positioner, Cab Enclosure: Yes, File #: 91369179, Additional Info: Original Paint & Fully Serviced, 4 Wheel Drive
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Manufacturer: JCB
  • Model Number: 508-66TC
  • Type: Telehandler
  • Fuel Type: Diesel
  • Engine Specifications:
    • JCB EcoMAX engine
    • Emissions standard: Tier 4 Final
    • Horsepower: Approximately 109 HP
    • Torque: Roughly 295 lb-ft
  • Performance:
    • Maximum load capacity: About 8,000 lbs
    • Maximum Forward Reach: Approximately 42 feet
  • Dimensions:
    • Overall length: 20 feet
    • Overall width: 8.2 feet
    • Height to top of cab: 8.8 feet
    • Wheelbase: 10 feet
    • Ground clearance: 1.3 feet
  • Operational Specifications:
    • Turning radius: Approximately 14 feet
    • Lift speed: Roughly 17 seconds
    • Lowering speed: About 14 seconds
  • Tires:
    • Standard tires: 15.5/25
  • Hydraulic System:
    • Maximum flow: Around 31.6 gallons/minute
    • Pressure: About 3,480 psi
  • Weights:
    • Operating weight: Approximately 25,500 lbs

3032 JCB 508-66TC

diesel

$149,900 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Arcangelo Capozzolo
Phone:
Website:

ADDRESS
United Lift LLC
300 International Dr. Suite 100
WilliamsvilleNew York 14221
ATTRIBUTES
STOCK #:
BF91369179-HLOH
YEAR:
3032
Manufacturer:
MODEL #:
POWER:
Height:
66 ft
CONDITION:
Used
HOUR METER:
1006
UNIT LOCATION:
New York [14221]
POST DATE:
4/15/2026
