Equipment Description
Arm Height 48" Arm Length 48" Bottom Frame Bumber Included Capacity 2,000 lbs. @ 24.0" load Estimated Weight 1990 lbs. Effective Thickness 6.25" Frame Width 46" Horizontal Center of Gravity 17.55" Hydraulic Flow 6 – 10 GPM Lateral CG at Max Lat Offset 4.0" Lower Retainers Quick Disconnect Lower Hooks Max Lateral Offset 4.0" Model L20A-TVST-4848 Mounting Class Class II Opening Range 23.0" – 82.0" Pads Full Floating Rubber Product Function L20A Clamp with "Soft Touch" Technology Sideshift Force Control: Included Sideshift "Built-In" External Sideshift: 8" included Vertical Center of Gravity 19.1" Working Pressure 2,200 – 2,500 PSI Wear Resistant Panels Included
Spec Sheet
  • Model Number: L20A-TVST-4848
  • Manufacturer: Loron
  • Type: Attachment
  • Subtype: Carton Clamps
  • Dimensions:
    • Width: 48 inches
    • Height: 48 inches
    • Depth: varies
  • Weight and Capacity:
    • Weight Capacity: varies
    • Attachment Weight: varies
  • Performance Features:
    • Opening Range: varies
    • Clamping Force: varies
    • Arm Thickness: varies
  • Material and Construction:
    • Material: Steel
    • Finish: Painted or Coated
  • Additional Features:
    • Integrated sideshift
    • Hydraulic function requirements: varies
    • Compatible with standard forklift carriages
  • Application:
    • Designed for handling non-palletized loads
    • Suitable for applications in warehousing and distribution
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

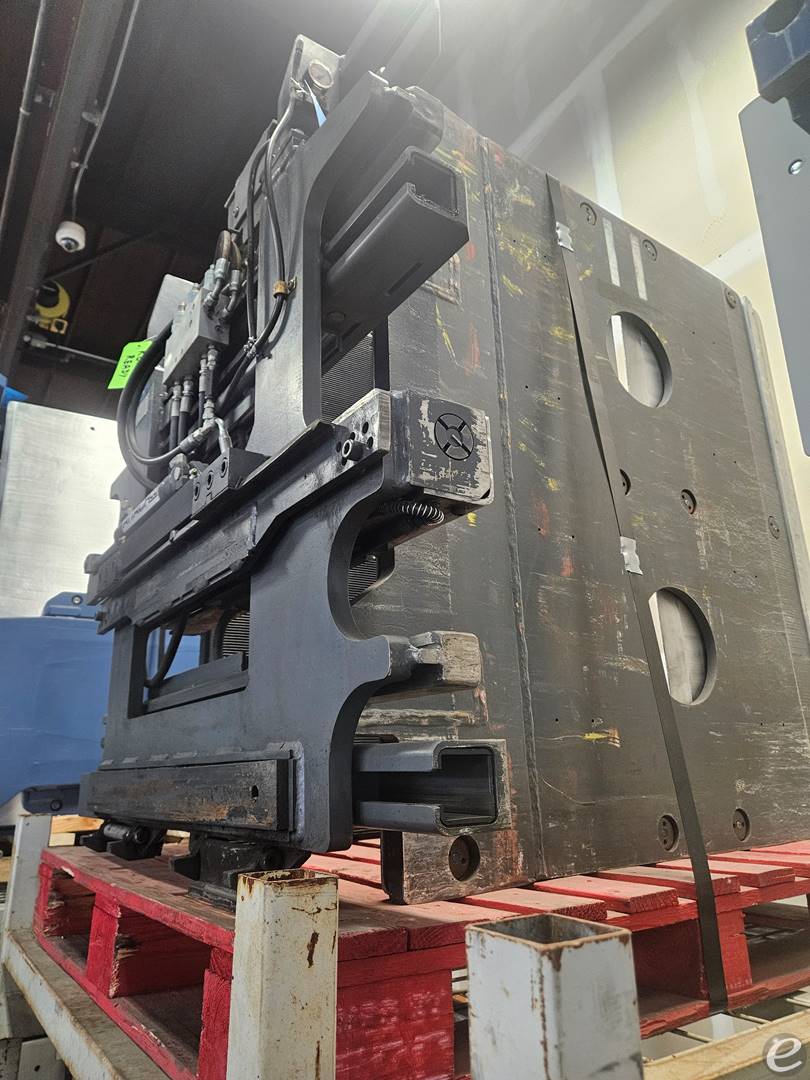

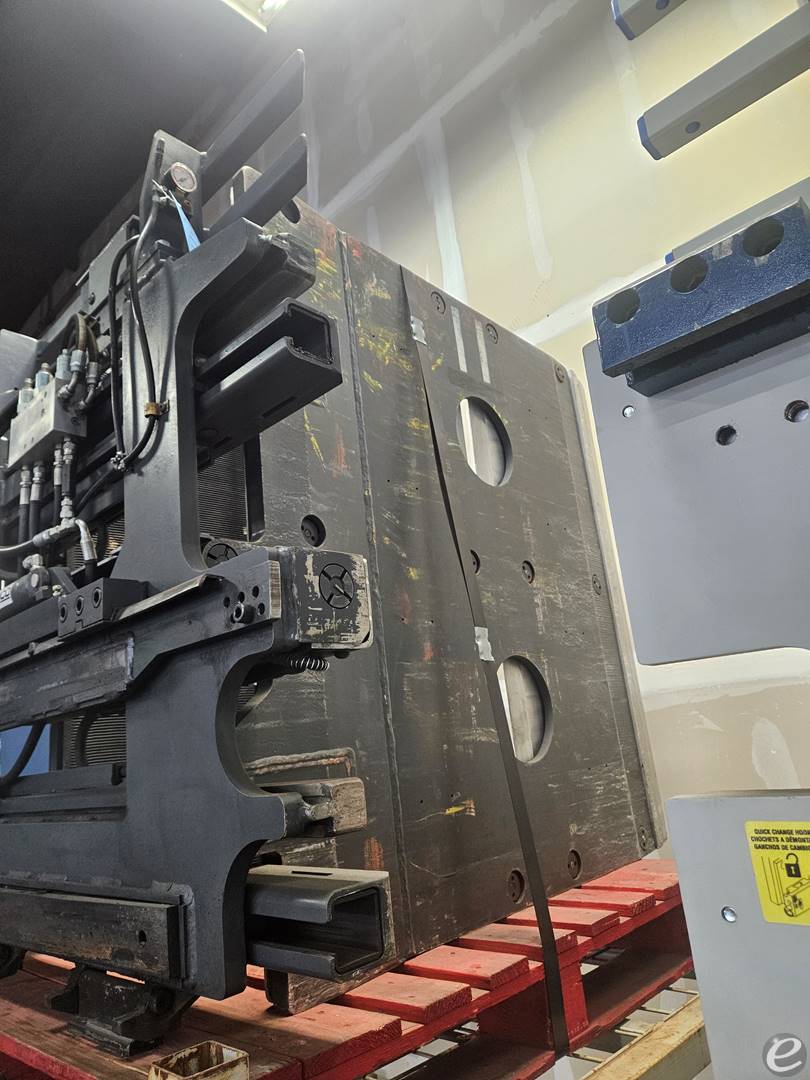

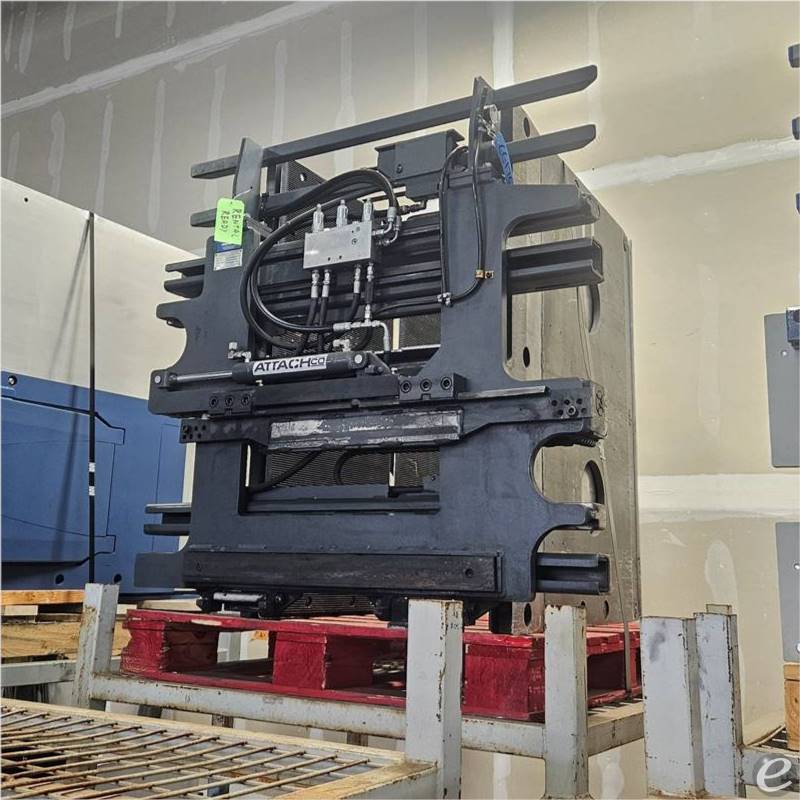

2016 Loron L20A-TVST-4848

Buy or Rent

carton clamps

$12,500 USD

$1 USD per day

$1 USD per week

$1 USD per month


Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Andrew Forde
Phone:
Website:

ADDRESS
ATTACHCO
665 W Cowles St
Long Beach California 90813
ATTRIBUTES

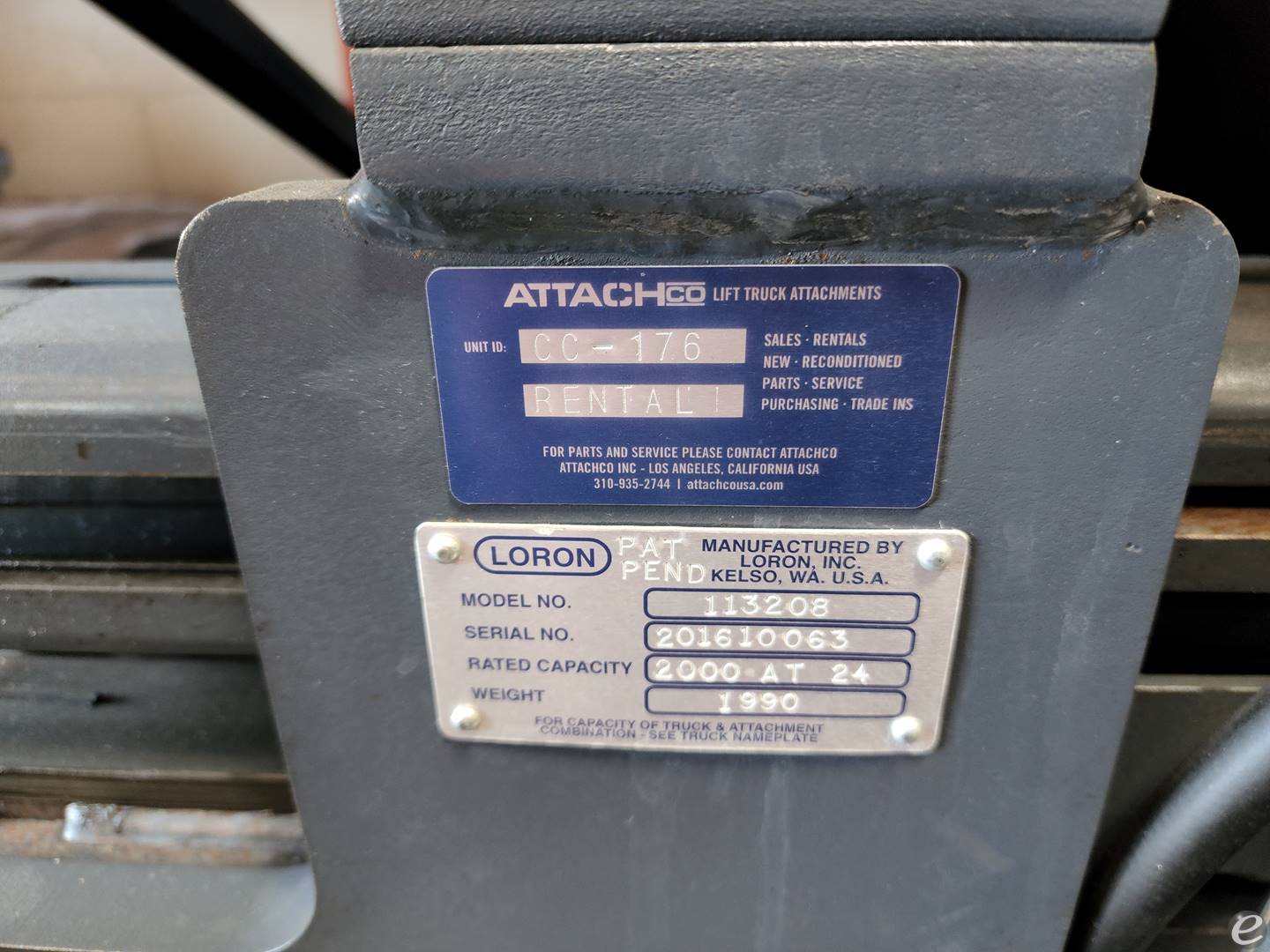

STOCK #:
CC-176
YEAR:
2016
Manufacturer:
MODEL #:
CAPACITY:
2000
CLASS:
II
SUBCATEGORY:
SERIAL #:
201610063
CONDITION:
Used/Rental
UNIT LOCATION:
California [90813]
DESCRIPTION:
Soft Touch with Bladders 2000 lbs Cap. 48x48 Pads Class 2
