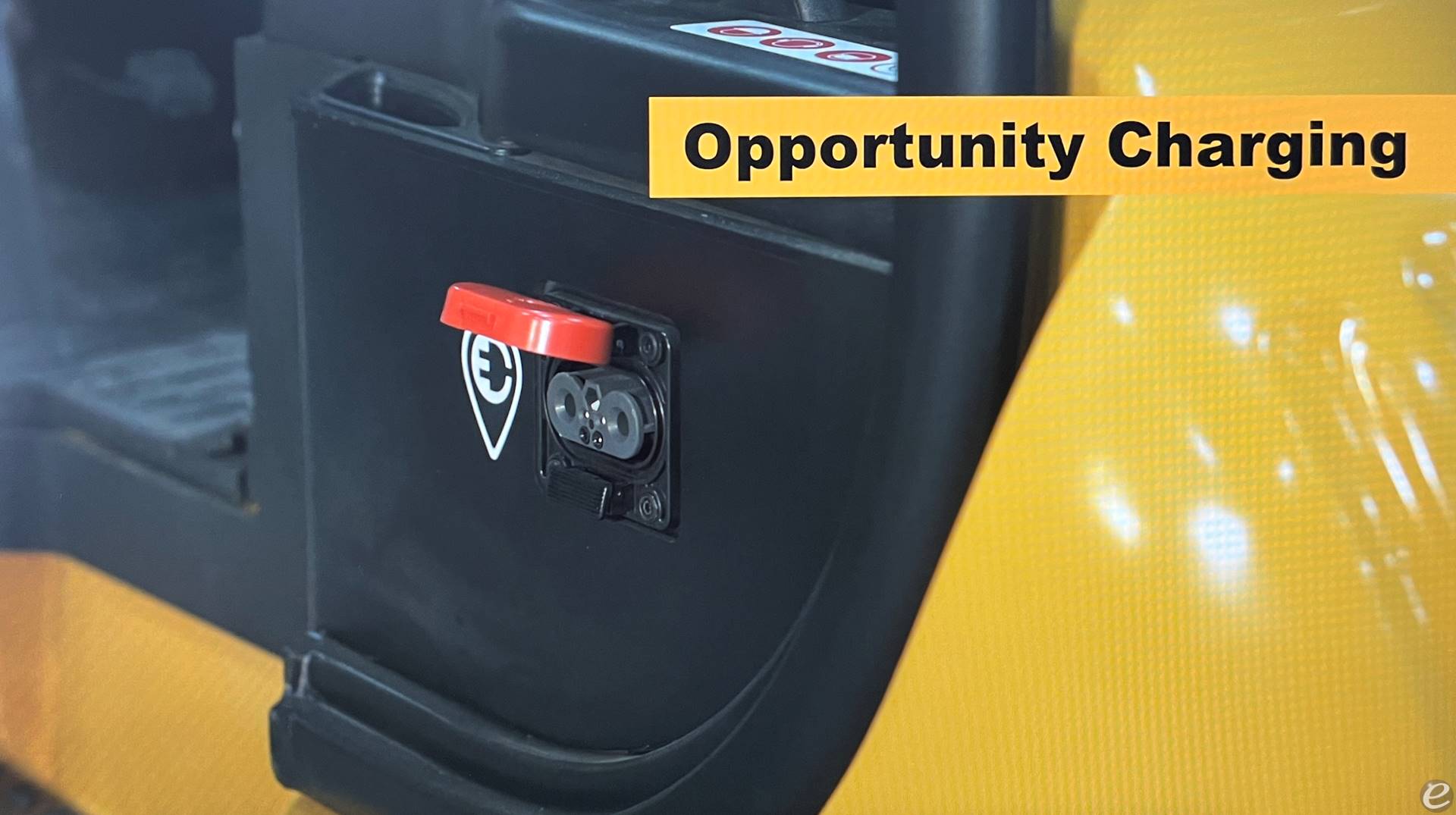

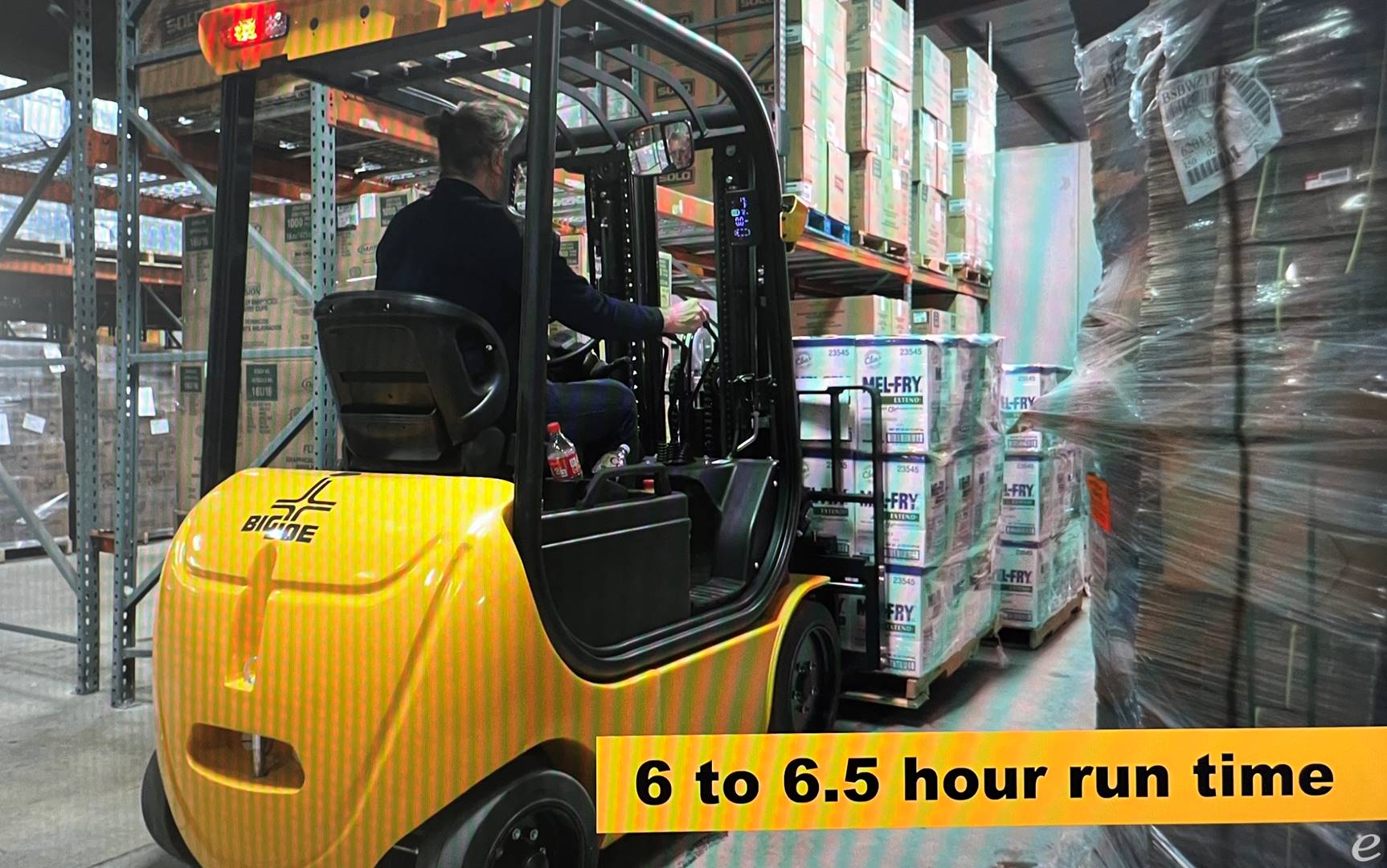

LXE50 Spartan Cushion Tire Lithium Forklift Truck With fast charge times, clean power and low-cost operation, our Big Joe LXE50 Spartan is poised to make internal combustion trucks a thing of the past and revolutionize operations across a broad number of industries. These 5,000lb capacity machines share the same chassis design as LP and diesel trucks but are outfitted with a fully integrated lithium power source which can deliver the power, run-time and uptime needed to support most indoor operations. Why run internal combustion and pay high fuel and maintenance costs month after month? Our Big Joe Spartan optioned with the standard 460AH lithium battery can run over 6 hours continuously, charge fast and eliminates the need for eye wash stations, mid-life battery replacement or regular battery maintenance present with standard electric forklifts. Big Joe Spartan is built tough, but there really isn't an easier decision on the market today. The time is now to go electric with lithium! The LXE50 Spartan Cushion Tire Lithium Forklift Truck Features: • Dual AC drive motors for exceptional maneuverability • UL recognized 80v 230AH li-ion battery • 6-6.5 hour run time • Opportunity charge at rate of up to 12% every 15 minutes • Larger, more comfortable operators compartment than a traditional electric forklift truck • Sideshift functionality for added productivity • Cushion tires for high-performance indoor operation • Reverse travel grab handle with horn The LXE50 Spartan Cushion Tire Lithium Forklift Truck Specifications: • Vehicle Type Cushion Tire Lithium Forklift Truck • Capacity 5,000lbs. @ 24” load center to 130", 4,000lbs. to 189"/197" • Power UL recognized 80v 460AH Li-ion battery • Max Lift Height 189" to 197" • Collapsed Height 83" to 90.7" • Fork Dimensions 42" Standard 48" Optional • Vehicle Dimensions See specification sheet • Turning Radius See specification sheet • Travel Speed See specification sheet • Battery Compartment See specification sheet • Battery Capacity See specification sheet • Charger External 120vac, 240vac, 480vac options
Spec Sheet
  • Model Number: LXE50-189
  • Manufacturer: Big Joe
  • Type: Forklift
  • Subtype: Electric 4 Wheel Sit Down
  • Fuel Type: Electric
  • Dimensions:
    • Overall Length: Approx. 9.62 ft
    • Overall Width: Approx. 4 ft
    • Height to Top Overhead Guard: Approx. 7.5 ft
    • Wheelbase: Approx. 4.9 ft
  • Weight:
    • Service Weight: Approx. 9,500 lbs
  • Performance:
    • Load Capacity: 5,000 lbs
    • Travel Speed (laden/unladen): Approx. 10/11 mph
    • Lift Speed (laden/unladen): Approx. 85/115 ft/min
  • Tire Type:
    • Front: Cushion Tires
    • Rear: Cushion Tires
  • Power Train:
    • Drive Motor: 36V AC
    • Hydraulic Motor: 10 kW
  • Brakes:
    • Service Brake: Hydraulic
    • Parking Brake: Manual
  • Forks:
    • Fork Length: Varies
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

2024 Big Joe LXE50-189

New

electric 4 wheel sit down electric

Call for price
CONTACT INFO
Name:
Eddy Valdes
Phone:
Website:

ADDRESS
Dade Lift
12612 NW South River Dr.
MedleyFlorida 33178
ATTRIBUTES
STOCK #:
NI LXE50-189
YEAR:
2024
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
MAST TYPE:
MAST HEIGHT:
83 / 189 in
SIDE SHIFTER:
Yes
CONDITION:
New
HOUR METER:
1
LOCATION:
Florida [33178]
DESCRIPTION:
NEW BIG JOE LITHIUM-ION TECHNOLOGY FORKLIFT 5,000 LB.
POST DATE:
10/17/2025
Reviews
Useful
Not

The Big Joe LXE50-189 electric forklift impressed me during our recent warehouse move. I wasn't sure how well an electric model would hold up under the usual heavy loads we manage, but it really surprised everyone with its power and responsiveness. What stood out most was how quiet it was while operating—definitely a blessing when you’re working in a bustling environment and trying to communicate with teammates. Plus, zipping around corners felt smooth, making those tight spots a lot less daunting. Having used gas forklifts in the past, it was refreshing to see how this electric version trimmed down our maintenance needs. Overall, a solid piece of equipment that seems designed with the operator's comfort in mind.


Review by Mike Anderson (2/15/2025)
