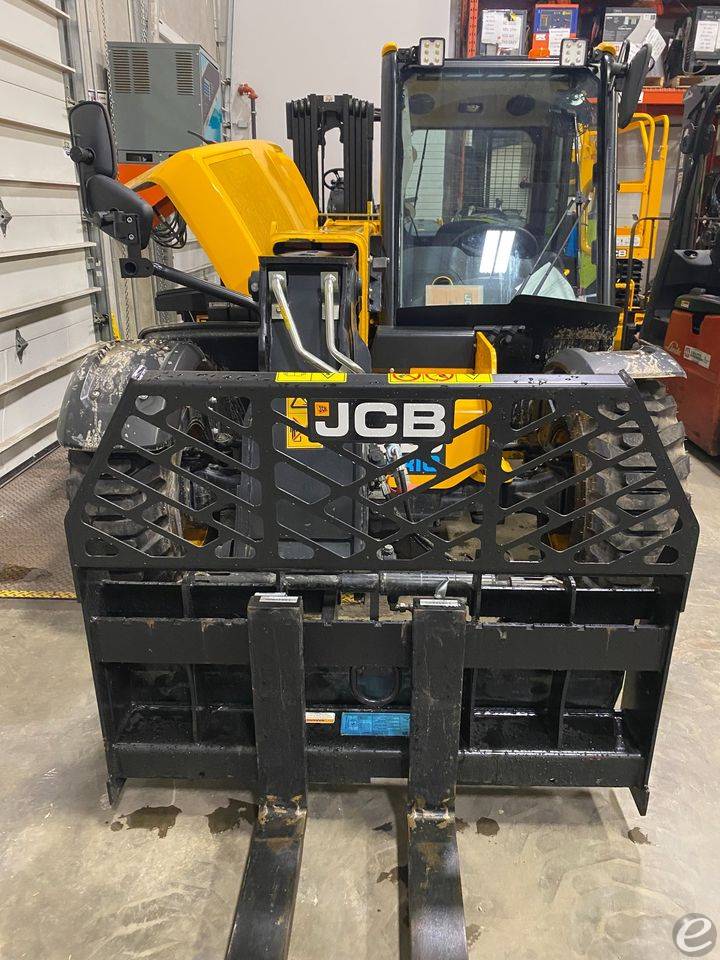

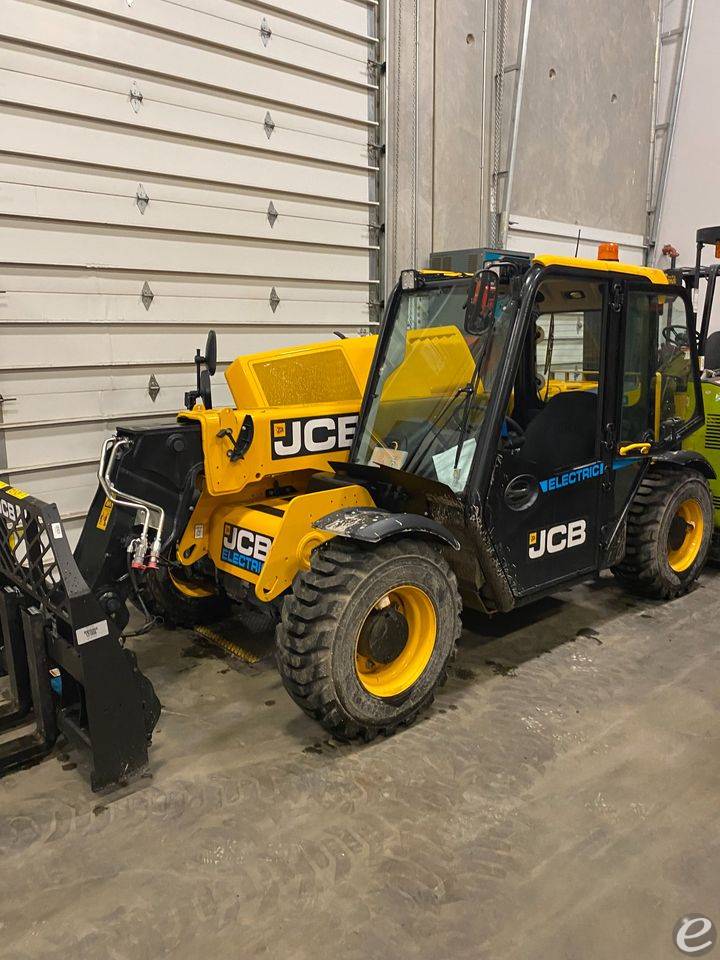

2024 JCB 505-20E

Call for priceNew
Wesgroup Equipment LP
CONTACT INFO
Name:
Cristhian De la Pena
Phone:

ADDRESS
Wesgroup Equipment LP
0240 Grace Rd
SurreyBritish Columbia V3V 3V6
ATTRIBUTES
STOCK #:
131026
YEAR:
2024
Manufacturer:
MODEL #:
Height:
20 ft
CAPACITY:
5000
CONDITION:
New
HOUR METER:
0
LOCATION:
DESCRIPTION:
ELECTRIC
POST DATE:
11/29/2024
Equipment Description
TELESCOPIC BOOM Two section, 20ft lift height with hydraulic parallel lift, 5,250 lbs. max capacity, 3,000 lbs to full height. Boom is manufactured from high tensile steel with low maintenance, hard wear pads. STANDARD FEATURES Front/Rear Work Lights - LED, Beacon - LED, Fenders, White Noise Reverse Alarm BATTERY 24kWh Lithium-ion battery from Jungheinrich. Zero emissions. System voltage 96v. CHARGING On-board charger 120v; rapid charger options available. Expected charge times: 0 to 100R0is 18 hours; 25 to 80R0is 11 hours. MOTORS Traction motor: 23HP AC - JungheinrichHydraulic motor: 30HP AC - Jungheinrich TRANSMISSION Permanent 4WD with independent drive motor and regenerative braking. Travel speed 9 mph; JCB axles. OPERATOR STATION Meets ISO ROPS 3471 and FOPS 3449 requirements. Tinted glass, horn, in-cab storage. Single lever joystick control for all boom functions. Operator manual included. ATTACHMENT COUPLER Skid Steer, Hydraulic LIVELINK TELEMATICS 5 year subscription allows for enhanced machine security, improved service monitoring and modernized fleet. WARRANTY 2 or 2000 hours year full coverage warranty (see the machine warranty certificate for details)
  • General Specifications
    • Manufacturer: JCB
    • Model Number: 505-20E
    • Type: Telehandler
  • Engine
    • Engine Type: Electric
    • Power: 24 HP
    • Number of Motors: 2 (one on each axle)
  • Dimensions
    • Overall Length (without fork): 12 ft 8 in
    • Width: 6 ft 2 in
    • Height: 6 ft 5 in
    • Wheelbase: 7 ft 3 in
    • Ground Clearance: 1 ft 2 in
  • Weight
    • Operating Weight: 11,000 lbs
  • Performance
    • Lift Capacity: 4,409 lbs
    • Maximum Forward Reach: 13 ft 5 in
    • Travel Speed: 9.3 mph
  • Hydraulics
    • Hydraulic Pressure: 3,626 psi
    • Hydraulic Flow: 26 gallons per minute
  • Tires
    • Standard Tires: 10.5x18
  • Operational Features
    • Steering: 4-wheel steer, 3 steer modes
    • Drive: Permanent 4-wheel drive
    • Brakes: Hydraulically activated, oil-immersed, multi-disc brakes
  • Electrical
    • Battery Capacity: 83 kWh
    • Battery Type: Lithium-ion
    • Charging Options: Fast and slow charging options
