2017 Genie TZ 34/20 Towable Manlift, Knuckle Boom, Only 14 Original Hours. $ 25,500 Horizontal Reach: 18 ft 4 in | 5.59 mPlatform Capacity: 500 lbs | 227 kgMax Working Height: 40 ft | 12.19 mUp and Over Clearance: 16 ft 1 in | 4.90 m TZ-34/20Trailer Mounted Boom Lifts The Genie® TZ™-34/20 trailer-mounted boom has an outstanding working envelope and intuitive controls, allowing operators to efficiently reach where they need to be.OverviewRugged and heavy-duty, yet lightweight enough to use on lawns, slate and gymnasium floors, as well as other sensitive surfaces.Extension boom with self-leveling platform and dual pneumatic jockey wheels for safe, precise setupVariable-speed control system359˚ non-continuous turntable rotation for versatile positioning
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Model: Genie TZ 34/20
  • Type: Boom Lift
  • Subtype: Trailer Mounted
  • Working Height: 40 ft 6 in
  • Horizontal Reach: 18 ft 4 in
  • Up and Over Clearance: 16 ft 1 in
  • Platform Height: 34 ft
  • Platform Capacity: 500 lbs
  • Length - Stowed: 24 ft 5.5 in
  • Width - Stowed: 4 ft 10 in
  • Height - Stowed: 6 ft 6 in
  • Ground Clearance: 2 ft 8 in
  • Wheelbase: 6 ft 4.8 in
  • Weight: 3,350 lbs
  • Drive Speed: 0.62 mph
  • Gradeability: 15%
  • Turning Radius, Inside: 0 ft
  • Turning Radius, Outside: 16 ft 1 in
  • Power Source: DC Power or Bi-energy
  • AC Power: 110 V
  • Hydraulic Tank Capacity: 1.32 gallons
  • Auxiliary Power Unit: 12 V DC

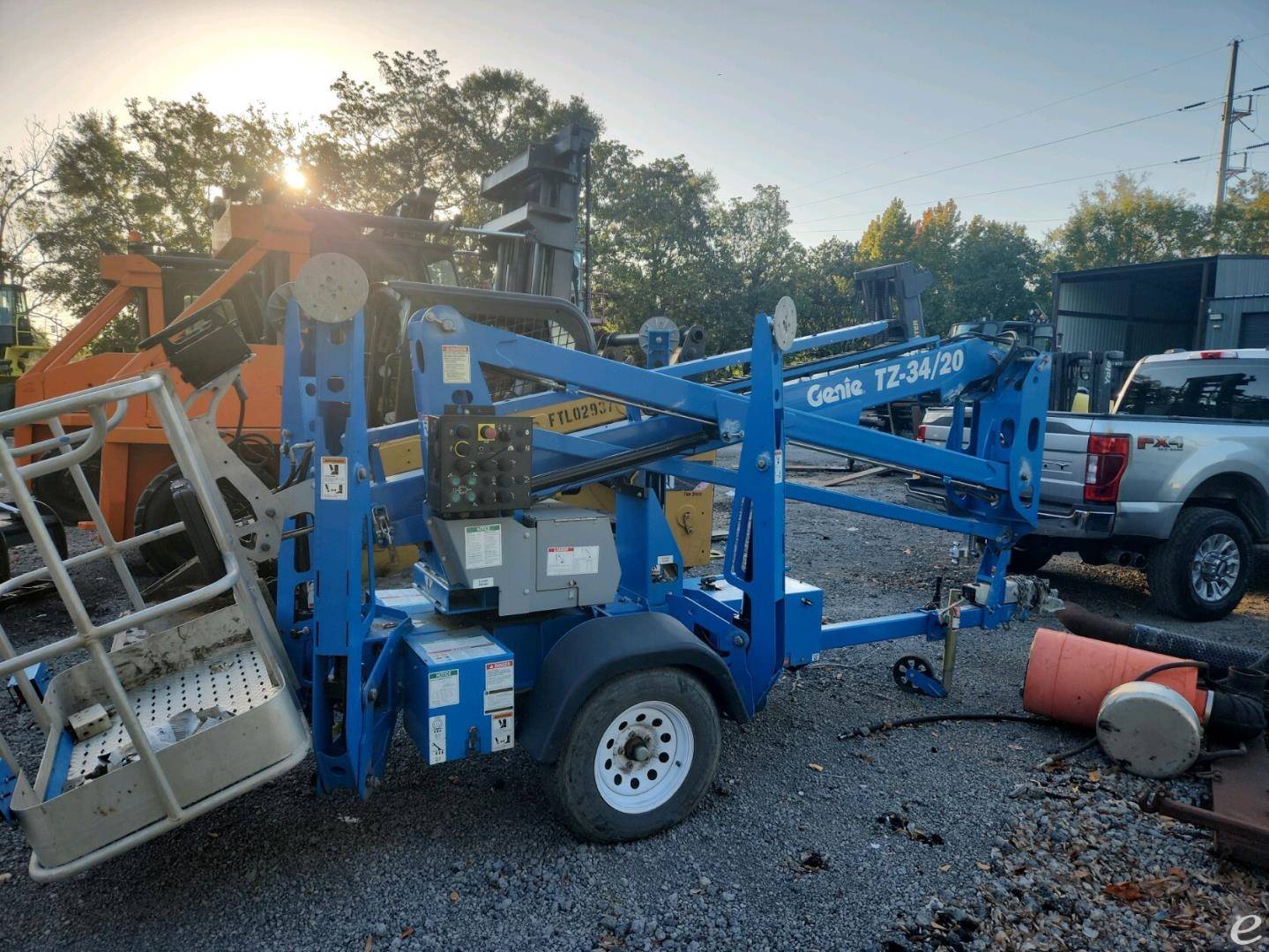

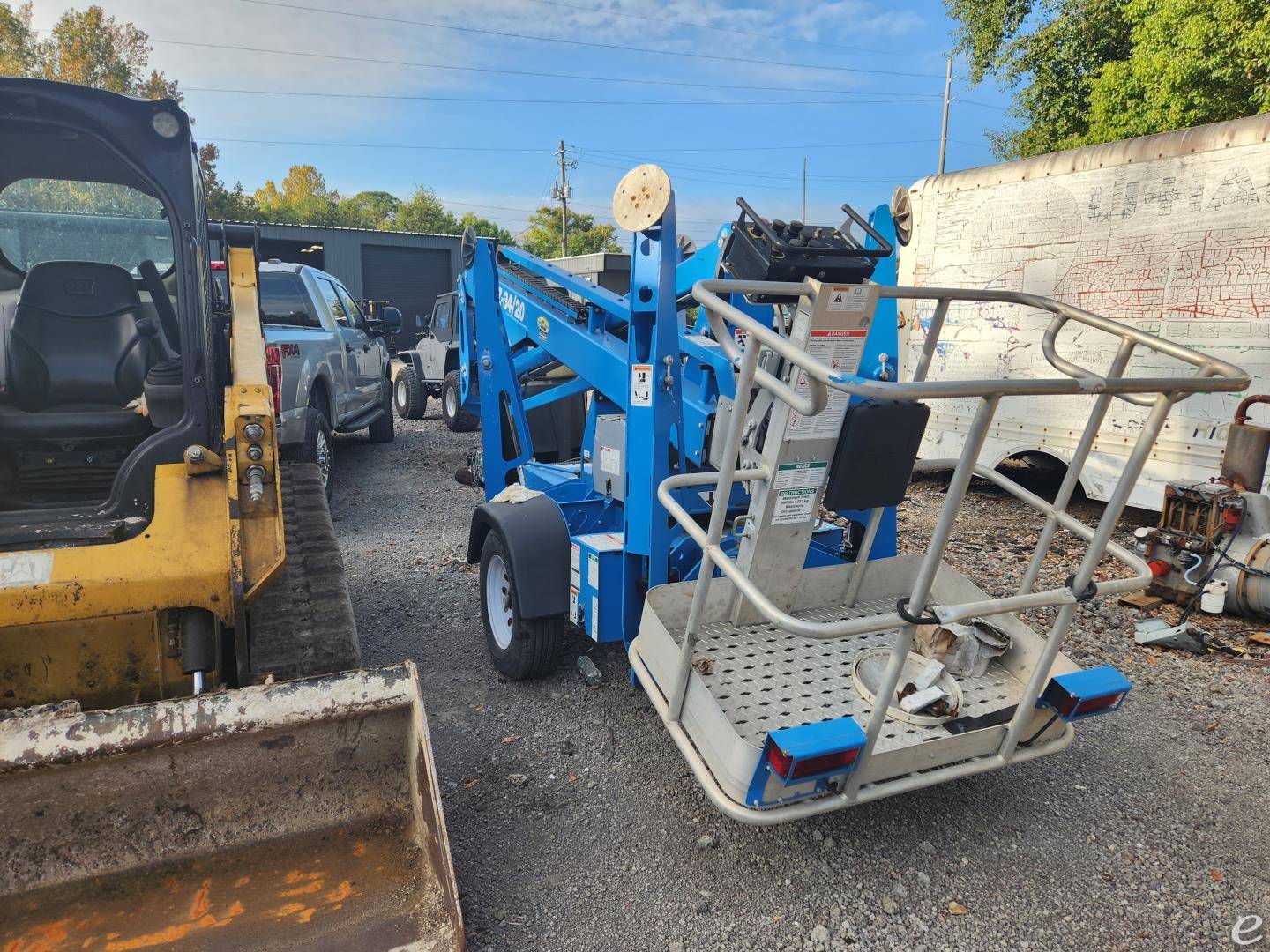

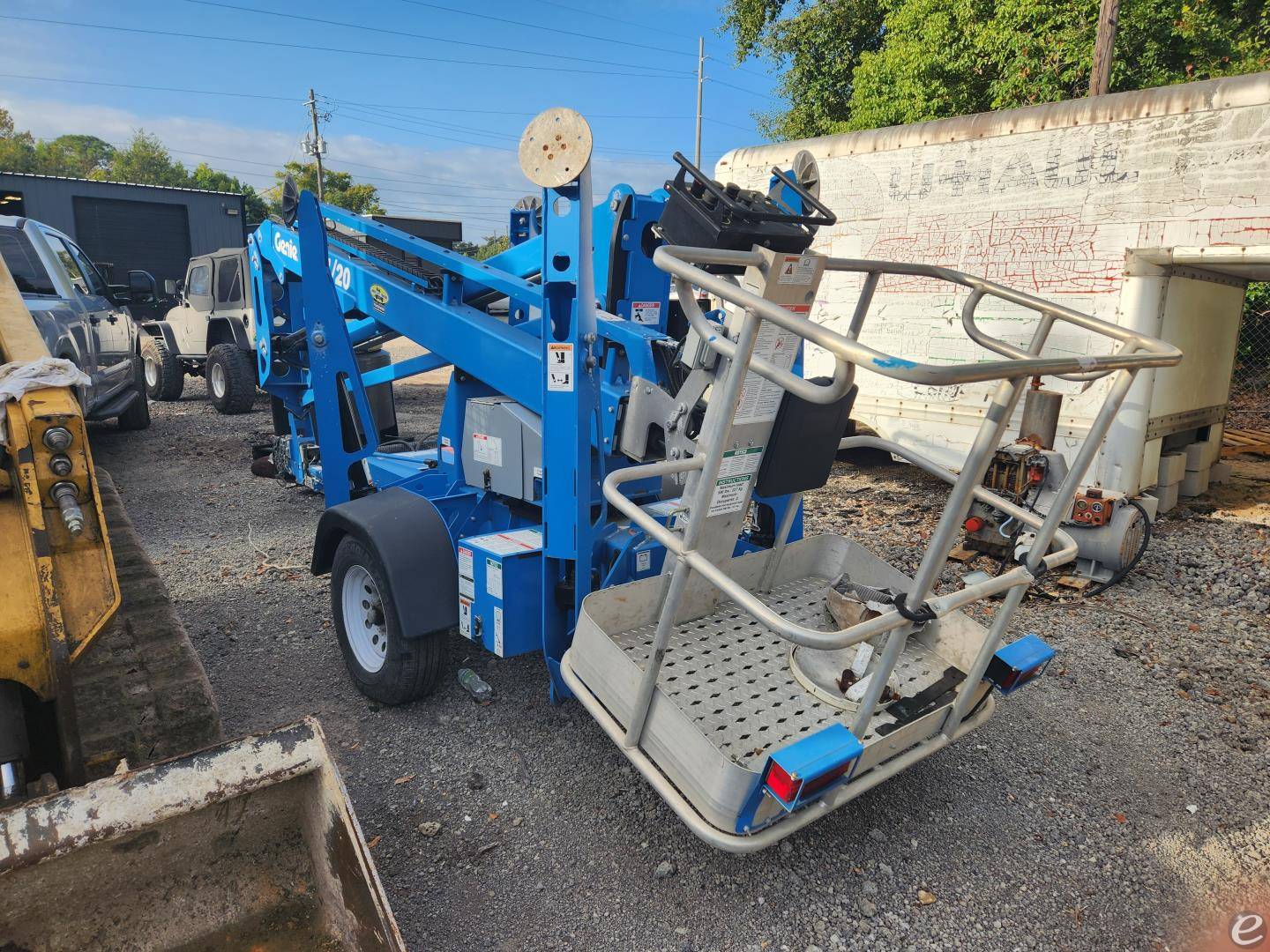

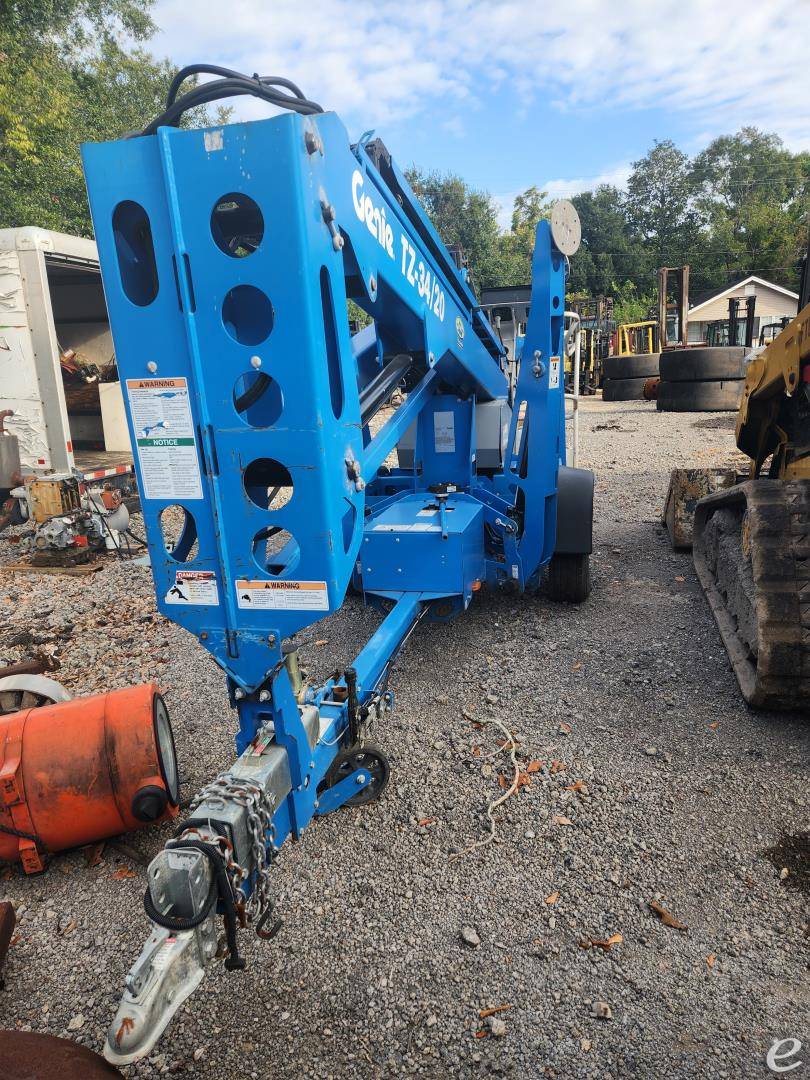

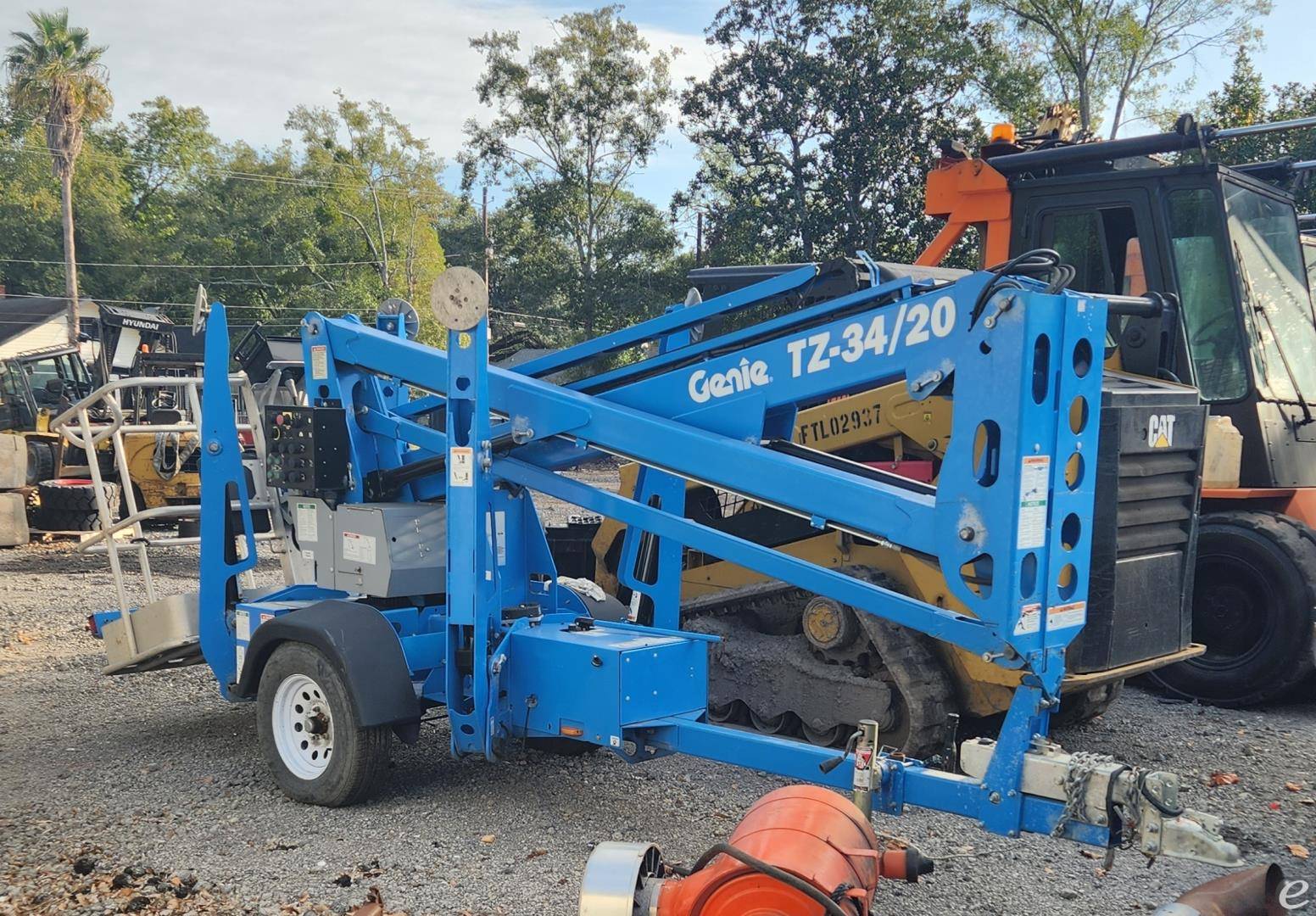

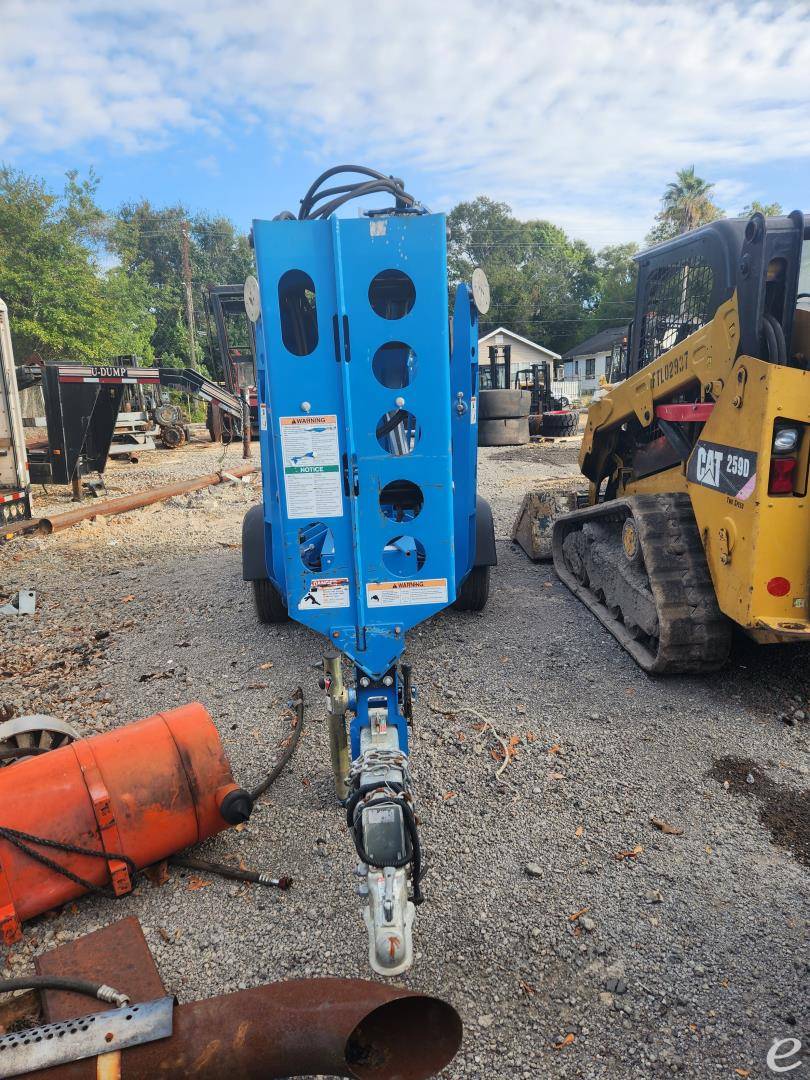

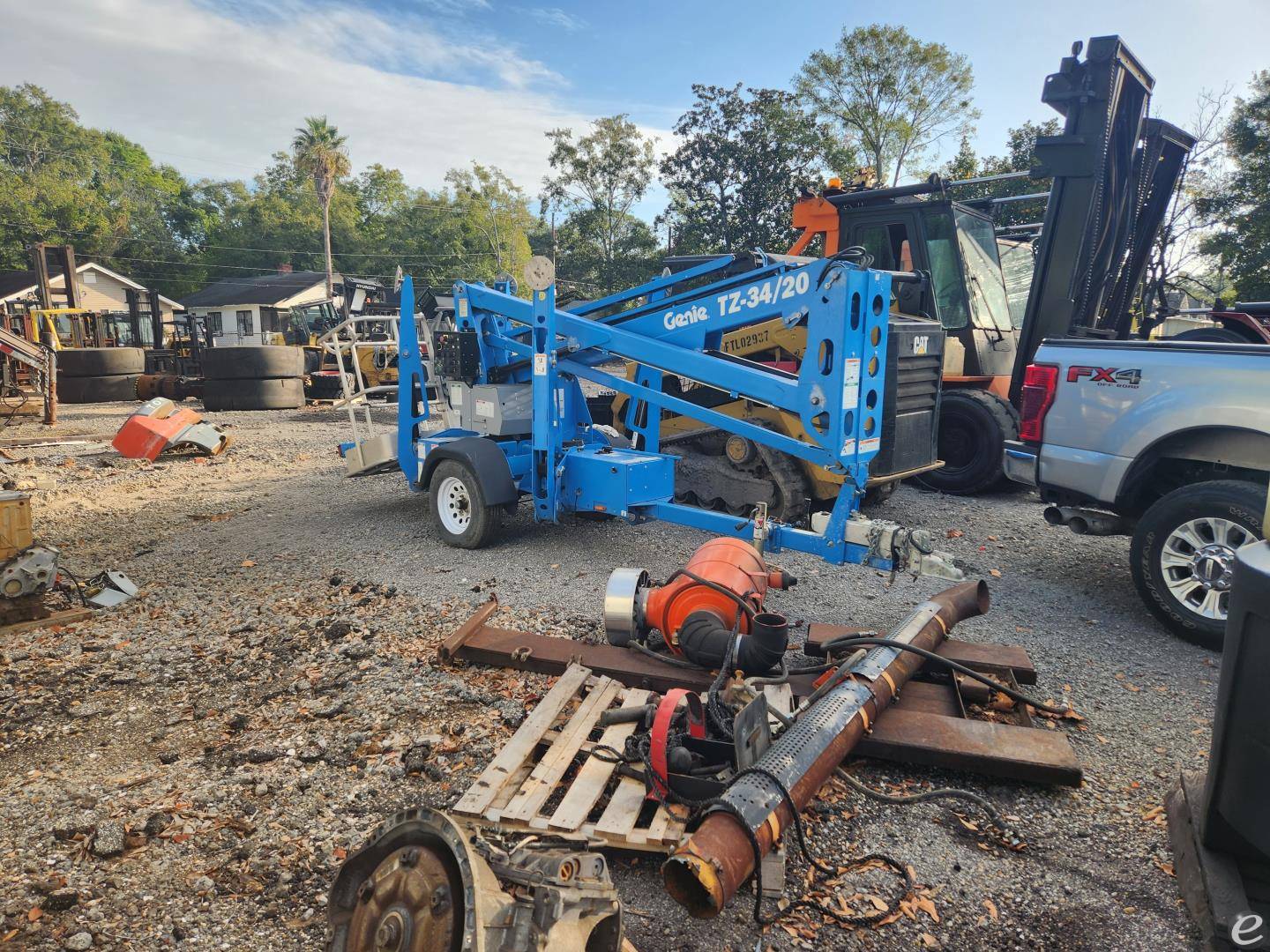

2017 Genie TZ 34-20

trailer mounted

$25,500 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Barkley Lindsey
Phone:

ADDRESS
Large Lift Rentals
7942 Rand St
HoustonTexas 77028
ATTRIBUTES
STOCK #:
223BCED6DC75
YEAR:
2017
Manufacturer:
MODEL #:
SUBCATEGORY:
Height:
ft
CONDITION:
Used
HOUR METER:
14
UNIT LOCATION:
Texas [77028]
POST DATE:
8/14/2026
Reviews
Useful
Not

The Genie TZ 34/20 boom lift is surprisingly handy for those tricky jobs that require some reach without committing to a massive piece of equipment. I remember using it to hang some outdoor decorations for a friend’s wedding. Setting it up was a breeze, and maneuvering it into tight spots was easier than I expected. The trailer-mount feature made transport simple, which came in clutch when we had to move it from one location to another. It’s definitely a reliable option if you're needing elevation on a project, without the hassle of climbing ladders all day. Overall, it earned its keep for me in more ways than one.



Review by Jason Miller (3/14/2025)

  • Model: Genie TZ 34/20
  • Type: Boom Lift
  • Subtype: Trailer Mounted
  • Working Height: 40 ft 6 in
  • Horizontal Reach: 18 ft 4 in
  • Up and Over Clearance: 16 ft 1 in
  • Platform Height: 34 ft
  • Platform Capacity: 500 lbs
  • Length - Stowed: 24 ft 5.5 in
  • Width - Stowed: 4 ft 10 in
  • Height - Stowed: 6 ft 6 in
  • Ground Clearance: 2 ft 8 in
  • Wheelbase: 6 ft 4.8 in
  • Weight: 3,350 lbs
  • Drive Speed: 0.62 mph
  • Gradeability: 15%
  • Turning Radius, Inside: 0 ft
  • Turning Radius, Outside: 16 ft 1 in
  • Power Source: DC Power or Bi-energy
  • AC Power: 110 V
  • Hydraulic Tank Capacity: 1.32 gallons
  • Auxiliary Power Unit: 12 V DC
