Spec Sheet
  • General Specifications
    • Model Number: 25D-9
    • Manufacturer: Hyundai
    • Type: Forklift
  • Engine
    • Type: Diesel
    • Model: D24-TE
    • Power: Approximately 58 HP
    • Rated Speed: 2,300 RPM
    • Cylinders: 4
    • Displacement: 146 in³
  • Dimensions
    • Total Length (without forks): 102 inches
    • Overall Width: 45 inches
    • Overall Height (Cabin): 86 inches
    • Ground Clearance: 4.5 inches
    • Wheelbase: 66 inches
  • Weights
    • Service Weight: Approximately 8,600 lbs
    • Load Capacity: 5,000 lbs
  • Performance
    • Travel Speed (Unloaded): 12 mph
    • Travel Speed (Loaded): 11 mph
    • Lifting Speed (Unloaded): 2.0 feet/sec
    • Lifting Speed (Loaded): 1.5 feet/sec
    • Gradeability (Loaded): 21%
  • Tires
    • Tires Type: Pneumatic
    • Front Tires: 7.00-12-12PR
    • Rear Tires: 6.00-9-10PR
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Manual Mechanical
  • Steering
    • Steering Type: Hydraulic Power Steering
    • Steering Angle: 90 degrees
  • Fuel System
    • Fuel Capacity: 14 gallons
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

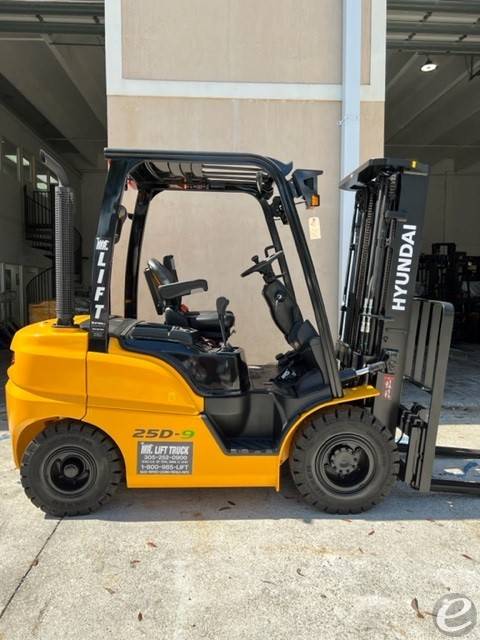

2025 Hyundai 25D-9

New

pneumatic tire 4 wheel sit down diesel

Call for price

CONTACT INFO
Name:
Greg Woods
Phone:

ADDRESS
Mr. Lift Truck, Inc.
10450 S.W. 187 Terrace
MiamiFlorida 33157
ATTRIBUTES
YEAR:
2025
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
MAST TYPE:
MAST HEIGHT:
185 in
SIDE SHIFTER:
Yes
CONDITION:
New
HOUR METER:
0
LOCATION:
Florida [33157]
DESCRIPTION:
Newly designed 4 wheel truck.
POST DATE:
12/8/2025
