Overview
Spec Sheet
Shipping/Freight
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Information
    • Model Number: CPDS20-AC6NA
    • Manufacturer: Hangcha
    • Type: Forklift
    • Subtype: Electric 3 Wheel Sit Down
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: Approximately 10.6 ft
    • Overall Width: Approximately 3.6 ft
    • Overall Height: Approximately 6.9 ft
    • Wheelbase: Approximately 4.6 ft
    • Ground Clearance: Approximately 3.5 inches
    • Tread (Front/Rear): Approximately 2.9 ft / 3.0 ft
  • Weight
    • Service Weight: Approximately 7,930 lbs
    • Axle Load with Load (Front/Rear): Approximately 12,450 lbs / 1,930 lbs
    • Axle Load without Load (Front/Rear): Approximately 3,770 lbs / 4,160 lbs
  • Performance
    • Load Capacity: 4,400 lbs
    • Travel Speed (Loaded/Unloaded): Approximately 8.7 mph / 9.3 mph
    • Lifting Speed (Loaded/Unloaded): Approximately 59 ft/min / 100 ft/min
    • Lowering Speed (Loaded/Unloaded): Approximately 98 ft/min / 98 ft/min
    • Gradeability (Loaded/Unloaded): 15% / 20%
    • Turning Radius: Approximately 5.5 ft
  • Powertrain
    • Drive Motor: AC, 48V
    • Lift Motor: AC, 48V
    • Battery Voltage/Capacity: 48V 400Ah
  • Wheels
    • Tire Type: Solid Pneumatic
    • Front Tires: 18x7-8
    • Rear Tires: 15x4.5-8
  • Hydraulic System
    • Hydraulic Pressure: Approximately 2,610 psi
  • Forks
    • Fork Length: Varies
    • Fork Width: Approximately 4.7 inches
    • Fork Thickness: Approximately 1.6 inches

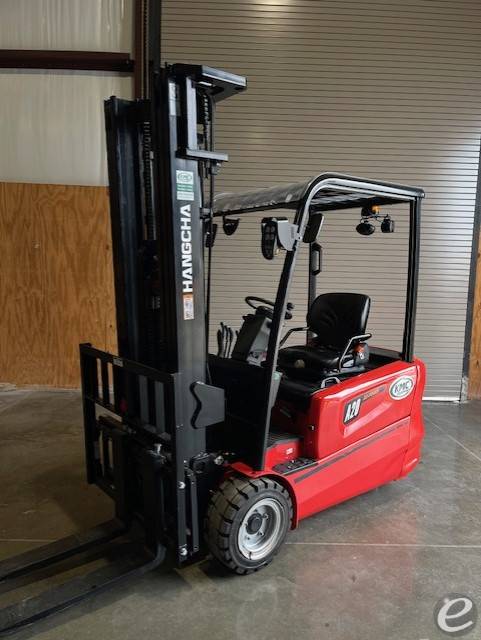

Hangcha CPDS20-AC6-NA

New

cushion tire 4 wheel sit down (indoor warehouse) electric

Call for price

CONTACT INFO
Name:
Kevin Quinn
Phone:
Website:

ADDRESS
KMC Equipment
6101 E State Hwy 21
BryanTexas 77808
ATTRIBUTES
STOCK #:
4925UF
Manufacturer:
MODEL #:
CAPACITY:
4000
FUEL:
MAST TYPE:
SERIAL #:
40BB00395
SIDE SHIFTER:
Yes
CONDITION:
New
UNIT LOCATION:
Texas [77808]
POST DATE:
6/10/2026
Reviews
Useful
Not

The Hangcha CPDS20-AC6NA has been a lifeline for our warehouse operations. We recently transitioned to an electric sit-down forklift, and I can't believe the difference it's made in our daily tasks. Maneuvering through tight aisles feels so much smoother, and there's noticeably less noise compared to our older gas models. A colleague of mine commentated on how we can actually hold a conversation while working, which was a rare perk before. Charging it at night has turned into one of those "set it and forget it" routines, freeing up our mornings for more important stuff. Overall, it's a solid choice for anyone looking to boost productivity without the engine noise.



Review by Mike Thompson (11/6/2025)
