Spec Sheet
**General Specifications**
  • Model Number: ECB35C
  • Manufacturer: BYD
  • Type: Forklift
  • Subtype: Electric Pneumatic Tire 3 & 4 Wheel Sit Down
**Dimensions**
  • Overall Width: Approximately 46 inches
  • Overall Length: A range based on fork length
  • Overall Height (without mast): Approximately 90 inches
  • Wheelbase: Approximately 67 inches
**Weight**
  • Service Weight: Approximately 11,500 lbs
**Performance**
  • Load Capacity: 7,700 lbs
  • Travel Speed (loaded/unloaded): Approximately 12 mph
  • Lifting Speed (loaded/unloaded): Approximately 59/63 feet per minute
  • Turning Radius: Approximately 103 inches
**Battery & Charging**
  • Battery Voltage: 80V
  • Battery Capacity: 420 Ah
  • Charger Type: On-board with fast charging capability
**Tires**
  • Type: Pneumatic
  • Front Tires: 28 x 9 inches
  • Rear Tires: 21 x 7 inches
**Additional Features**
  • AC Motor Technology
  • Ergonomic Operator Compartment
  • Adjustable Steering Column

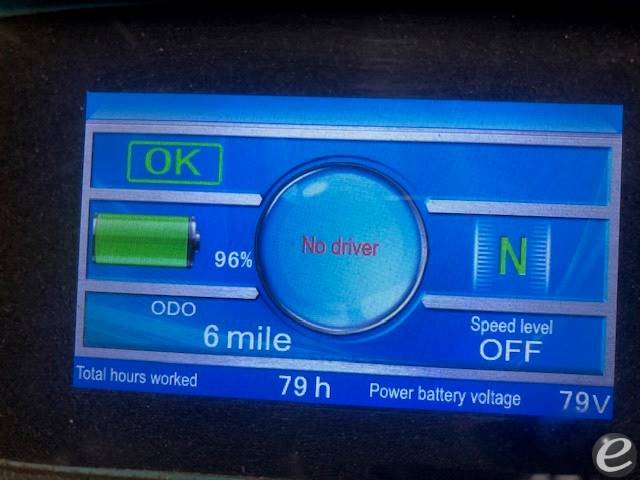

  • LCD Display for Monitoring Performance
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

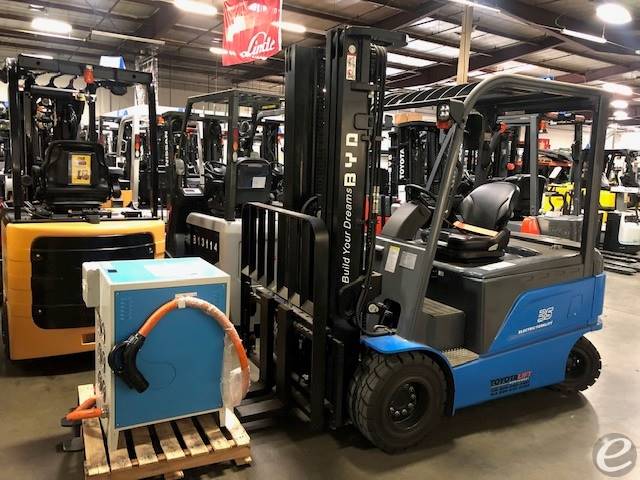

2016 BYD ECB35C

electric 4 wheel sit down electric

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Select Equipment Sales
6911 8th St
Buena ParkCalifornia 90620
ATTRIBUTES
STOCK #:
U200906
YEAR:
2016
Manufacturer:
MODEL #:
CAPACITY:
8000
FUEL:
MAST TYPE:
MAST HEIGHT:
187 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
87
LOCATION:
California [90620]
DESCRIPTION:
Lithium Battery, Like New, Side-Shift, 4 Way, Only 78 Hours.
POST DATE:
11/24/2025
Reviews
Useful
Not

The BYD ECB35C electric forklift is a solid choice for anyone looking for reliable and efficient material handling. I recently used this model at my buddy's warehouse during a busy shipping period, and I was impressed by how smooth and responsive it felt. It maneuvers surprisingly well, even in tight spaces, which made my job a lot easier. The electric aspect really helps with reducing noise and emissions, something we all appreciate when you're surrounded by equipment all day. Overall, it just feels like a durable and well-designed unit that can take on the demands of a busy operation without skipping a beat. It’s definitely a game-changer for those who value both performance and sustainability in their operations.


Review by Mike Thompson (4/17/2025)
