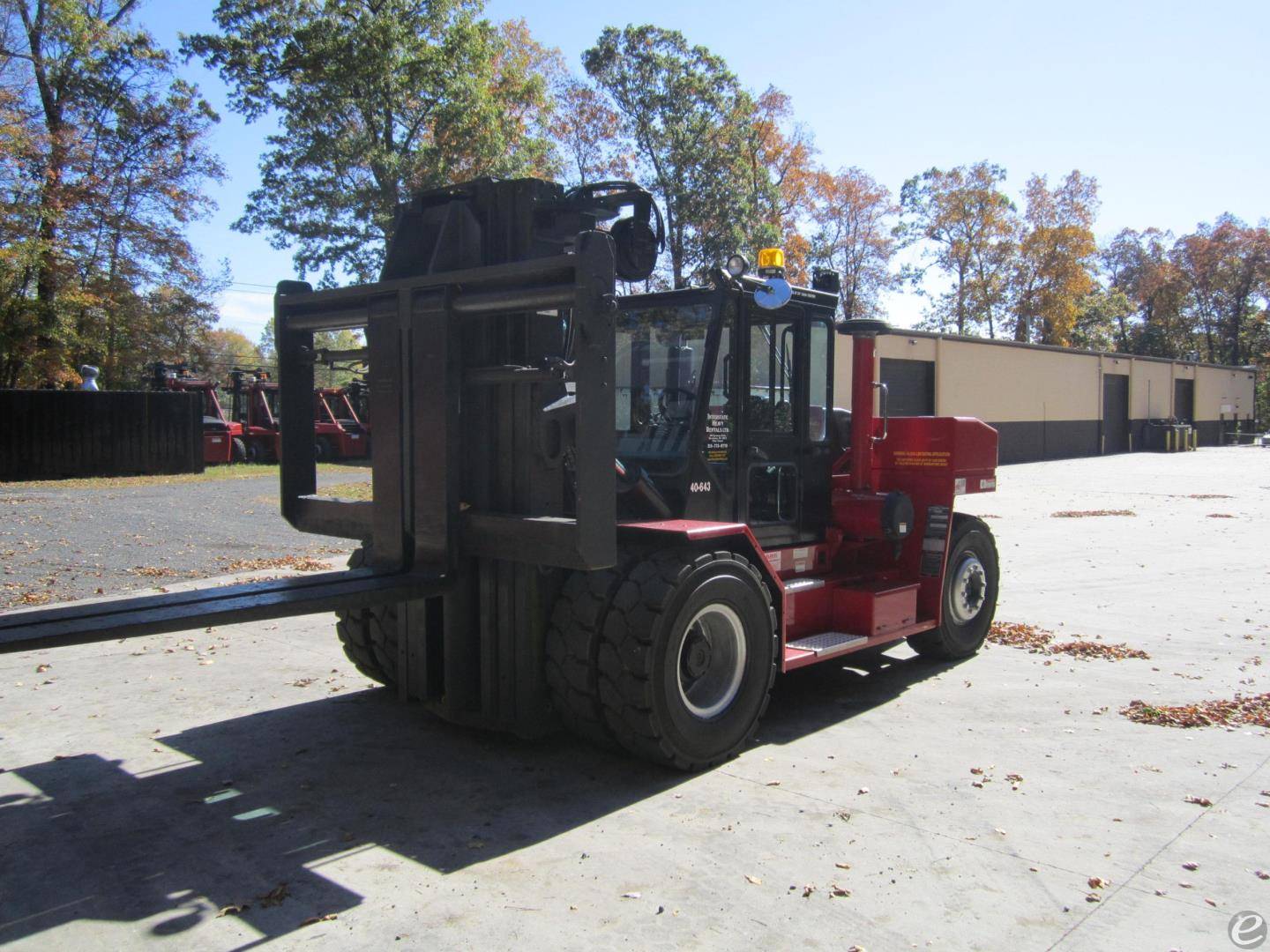

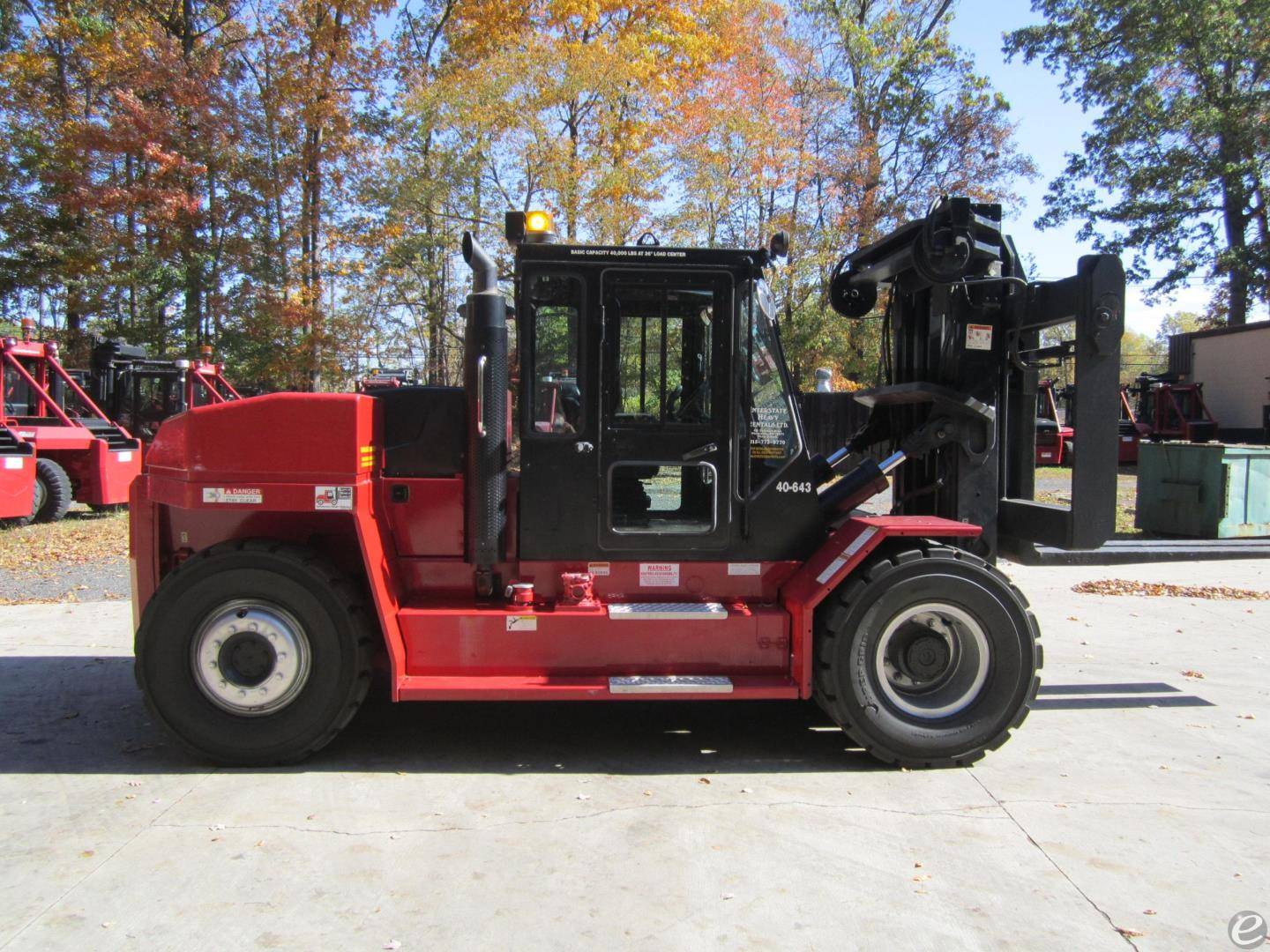

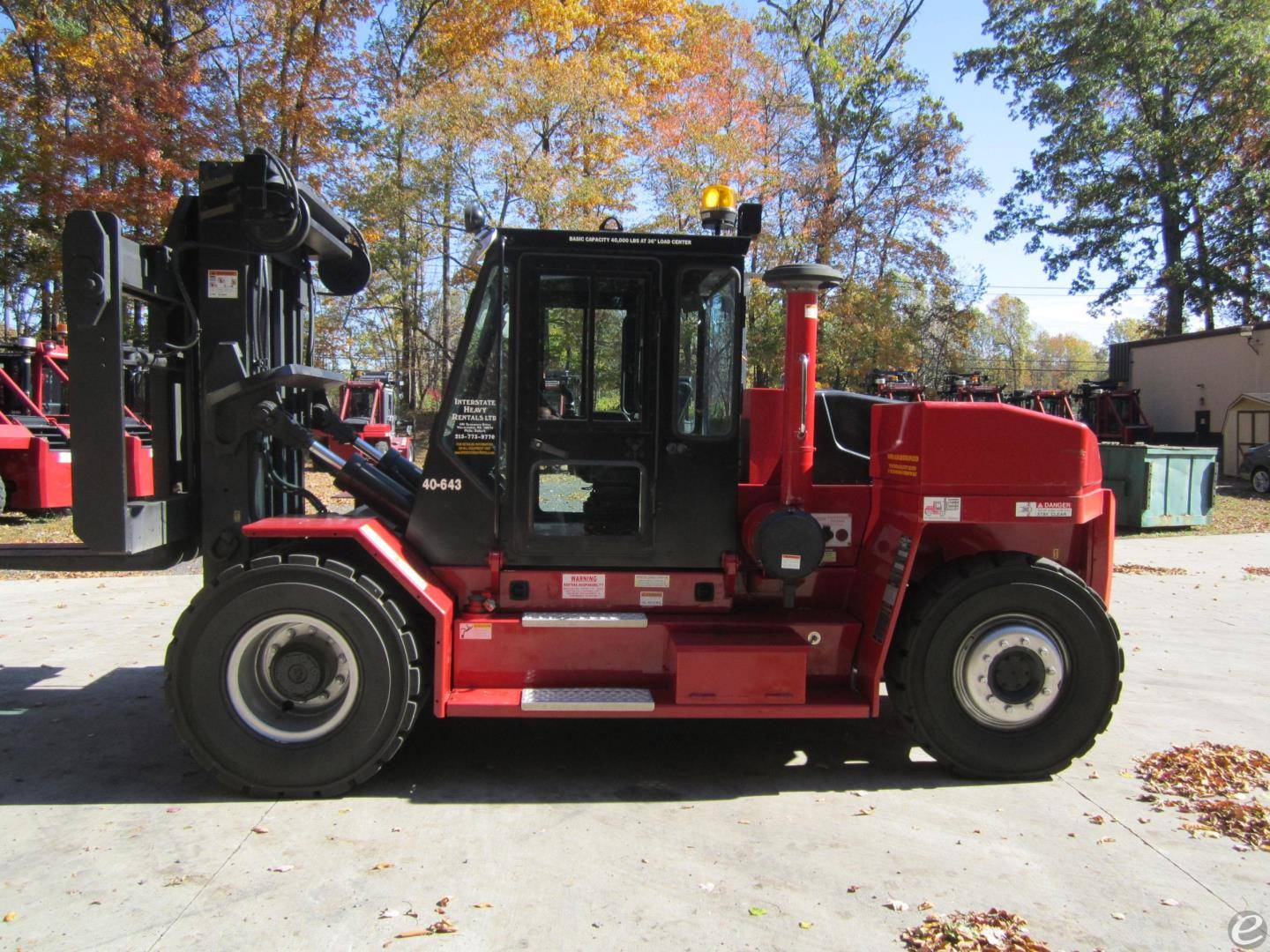

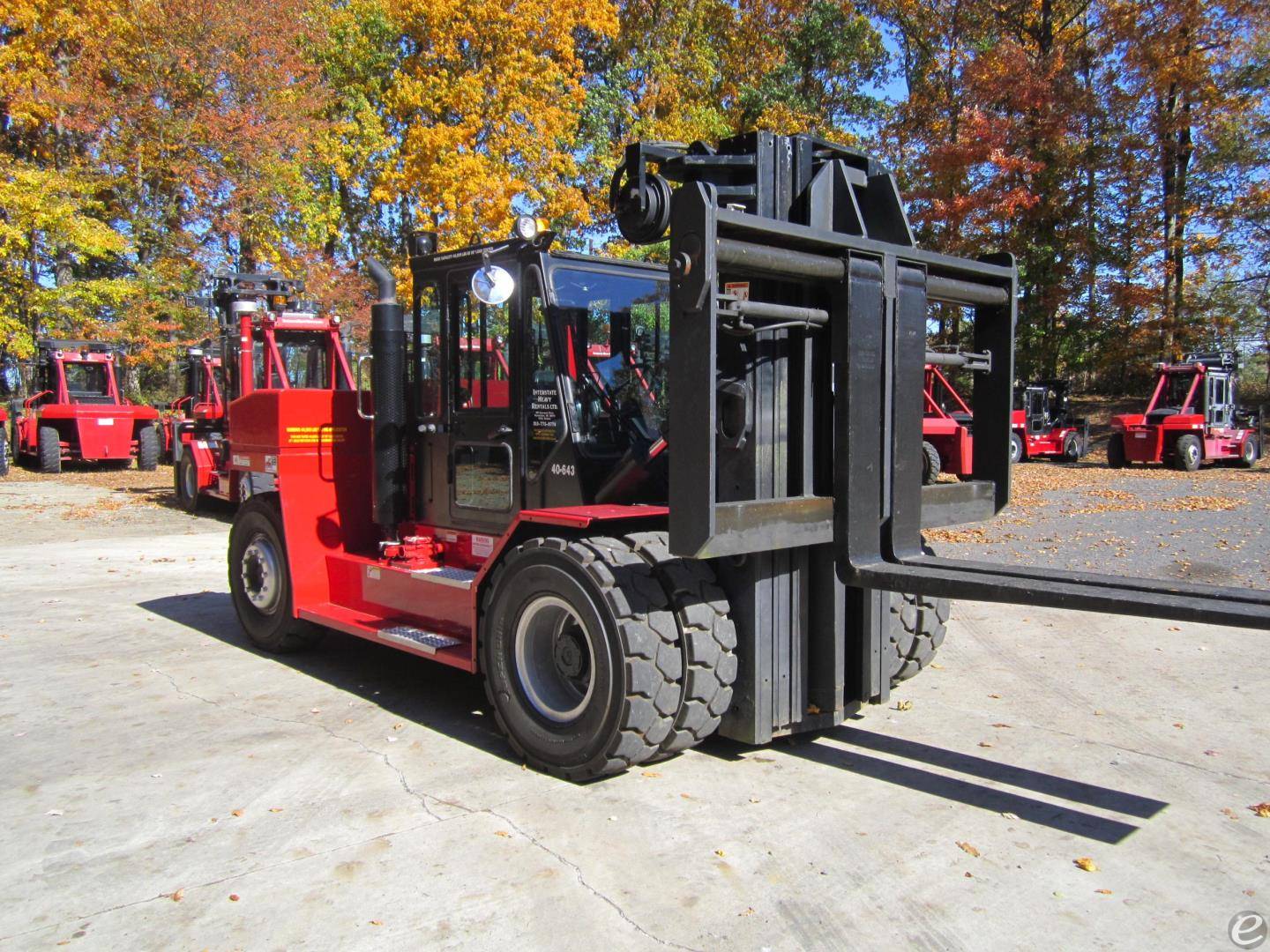

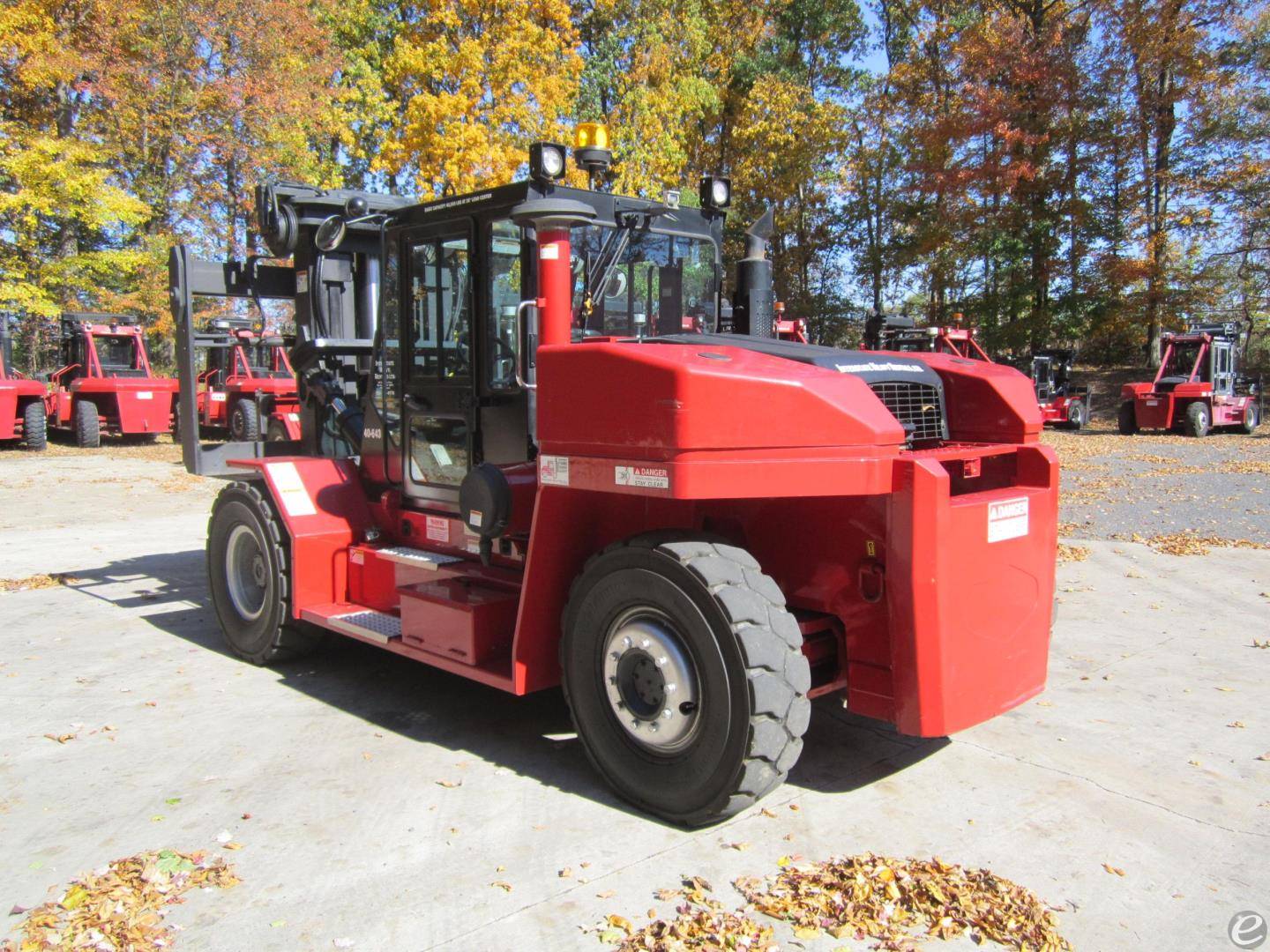

Taylor TX40-30 Rigger Special

diesel pneumatic tire 4 wheel sit down

Call for priceFor Rent
CONTACT INFO
Name:
Josh Snyder
Phone:

ADDRESS
Interstate Heavy Rentals
481 Sycamore Dr
WarminsterPennsylvania 18974
ATTRIBUTES
STOCK #:
40-643
Manufacturer:
CAPACITY:
40000
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
119 / 228 in
CONDITION:
Rental
LOCATION:
Pennsylvania [18974]
POST DATE:
6/12/2025
Equipment Description
Rent This Lift All data is as accurate as possible, but not guaranteed against typographical errors.
  • Manufacturer: Taylor
  • Model Number: TX40-30 RIGGER SPECIAL
  • Type: Forklift
  • Subtype: Pneumatic Tire 4 Wheel Sit Down
  • Fuel Type: Diesel
  • Performance
    • Power Source: Diesel Engine
    • Load Capacity: 40,000 lbs
    • Travel Speed (Unladen): 20 mph
    • Gradeability: 27%
  • Dimensions
    • Length to Fork Face: 18 ft
    • Overall Width: 8 ft
    • Overall Height: 12 ft
    • Wheelbase: 12 ft
    • Ground Clearance: 12 in
  • Weights
    • Service Weight: 58,000 lbs
    • Axle Load (Front): 38,000 lbs
    • Axle Load (Rear): 20,000 lbs
  • Wheels and Tires
    • Tire Type: Pneumatic
    • Front Tires: 12.00 x 20
    • Rear Tires: 12.00 x 20
  • Engine
    • Engine Manufacturer: Cummins
    • Engine Model: QSB6.7
    • Engine Power: 173 HP
    • Displacement: 409 cubic inches
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Hand-operated
  • Hydraulic System
    • Hydraulic Pump Output: 65 gallons per minute
    • Operating Pressure: 3,750 PSI
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
