Overview
Spec Sheet
Shipping/Freight
Equipment Description

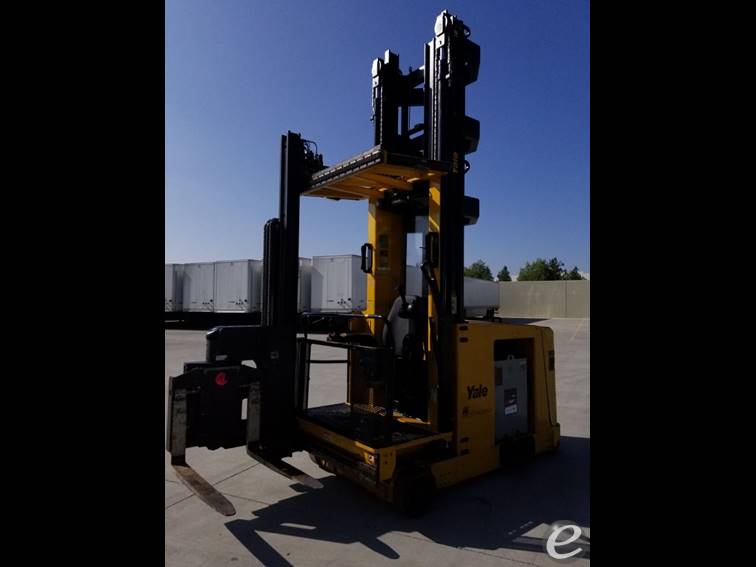

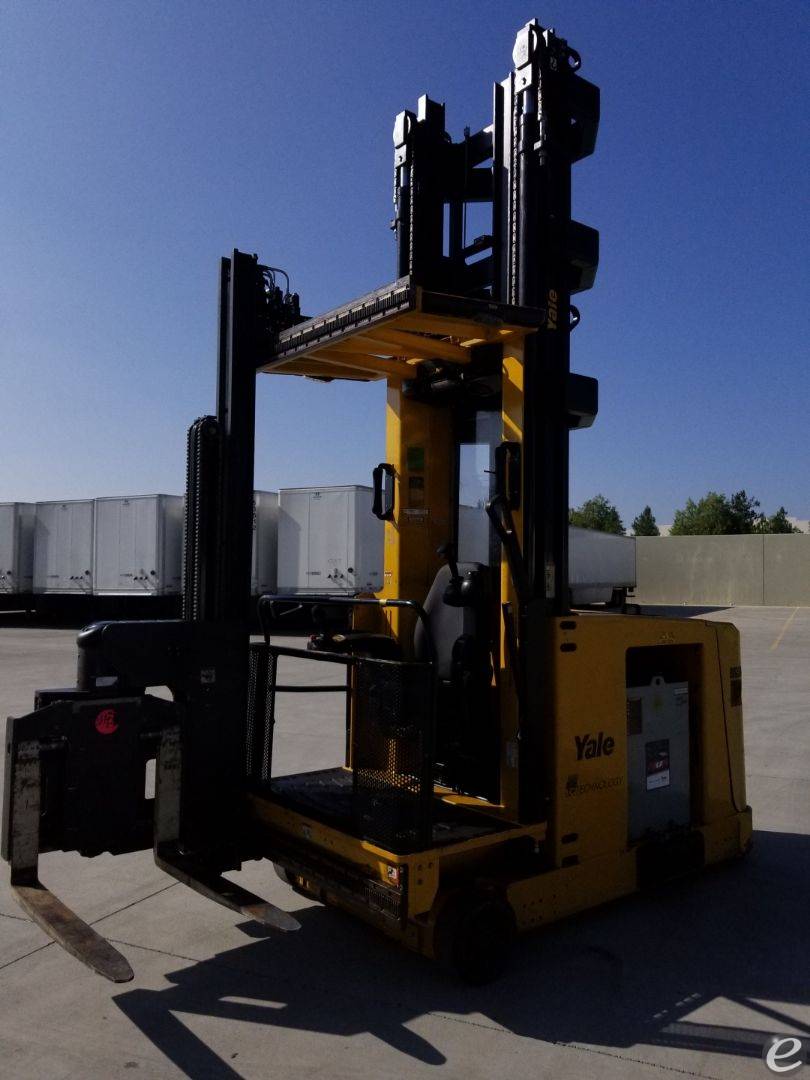

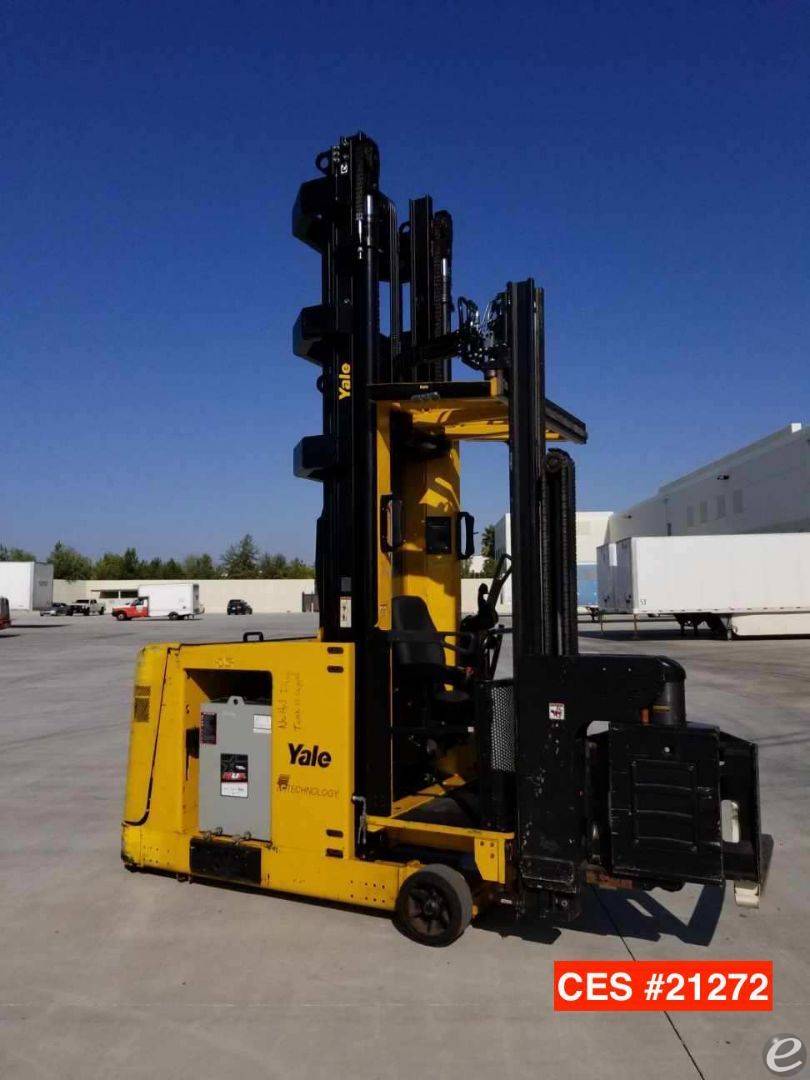

CES #21272 Yale NTA030SN Turret Forklift This used Yale Turret Forklift has been reconditioned and is ready to go to work. This used Yale Turret Forklift has a great reconditioned battery and comes with a one year battery warranty. If you need a good Turret Forklift look no further. This used Yale Turret Forklift is a strong and smooth runner. Don’t let this one get away at $27,950 it will sell fast. CES #21272 2010 Yale NTA030SN Turret Forklift SN #B868T01759 Hours : 5,800 Capacity : 3,000 lbs. Mast Height Min. / Max. : 176" / 326" Fork Length : 42" Battery Condition : Reconditioned - One Year Warranty with quarterly service. Battery Voltage : 48 volts Battery Charger Included : Yes, 30 amp Breaker, 3 Phase set at 240 volts Tires : 75% - New !!! Brakes :Good Oil or Hydraulic Leaks: No Leak Paint : New Paint !!! Warranty: 60 Days on entire equipment
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Information
    • Manufacturer: Yale
    • Model Number: NTA030SN
    • Type: Forklift
    • Subtype: Electric Man Down Swing Reach Turret
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: 8.2 feet
    • Overall Width: 3.25 feet
    • Overall Height: Varies based on cab configuration
    • Wheelbase: 6 feet
    • Turning Radius: 5.5 feet
  • Weight
    • Service Weight: Approximately 8,800 lbs
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed: Up to 7 mph (laden)
    • Lift Speed: 50 feet/min (laden)
    • Lowering Speed: 60 feet/min (laden)
  • Power
    • Battery Voltage: 36V
    • Drive Motor: 7.5 kW (10 horsepower)
    • Lift Motor: 17 kW (23 horsepower)
  • Tires
    • Front Tire Size: 12 x 5.5 inches
    • Rear Tire Size: 15 x 6 inches
    • Tire Type: Polyurethane
  • Forks
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 1.5 inches

2010 Yale NTA030SN

electric man down swing reach turret

$27,950 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Brandon
Phone:

ADDRESS
World Equipment Services
800 S. Wineville Ave.
OntarioCalifornia 91761
ATTRIBUTES
STOCK #:
CES #21272
YEAR:
2010
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
MAST HEIGHT:
176 / 326 in
SERIAL #:
B868T01759
CONDITION:
Used
HOUR METER:
5800
UNIT LOCATION:
California [91761]
DESCRIPTION:
2010 Yale NTA030SN Turret Forklift
POST DATE:
2/5/2026
Reviews
Useful
Not

The Yale NTA030SN is surprisingly nimble for an electric man down swing reach turret, and it has really made a difference in our warehouse operations. I remember the first time I tried it out; gliding through narrow aisles felt almost effortless, and the turning radius was a pleasant surprise. It allows for precision positioning which I didn't expect from an electric model, and that definitely cuts down on my stress when stacking those high shelves. The quiet operation is also a major plus, making it easier to communicate with my coworkers without straining. Overall, this forklift has quickly become a reliable workhorse in our daily routines.



Review by Jake Thompson (2/17/2025)

  • General Information
    • Manufacturer: Yale
    • Model Number: NTA030SN
    • Type: Forklift
    • Subtype: Electric Man Down Swing Reach Turret
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: 8.2 feet
    • Overall Width: 3.25 feet
    • Overall Height: Varies based on cab configuration
    • Wheelbase: 6 feet
    • Turning Radius: 5.5 feet
  • Weight
    • Service Weight: Approximately 8,800 lbs
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed: Up to 7 mph (laden)
    • Lift Speed: 50 feet/min (laden)
    • Lowering Speed: 60 feet/min (laden)
  • Power
    • Battery Voltage: 36V
    • Drive Motor: 7.5 kW (10 horsepower)
    • Lift Motor: 17 kW (23 horsepower)
  • Tires
    • Front Tire Size: 12 x 5.5 inches
    • Rear Tire Size: 15 x 6 inches
    • Tire Type: Polyurethane
  • Forks
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 1.5 inches
