2015 Nissan BXC30/MCJ1BL15S

electric 4 wheel sit down

Call for price
Wholesale InterNational
CONTACT INFO
Name:
Josh Snyder
Phone:

ADDRESS
Wholesale InterNational
481 Sycamore Dr
WarminsterPennsylvania 18974
ATTRIBUTES
STOCK #:
4950
YEAR:
2015
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
88 / 203 in
SERIAL #:
CJ1B1-990453
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
5142
LOCATION:
Pennsylvania [18974]
DESCRIPTION:
ES RATED, 203 Triple, side shift, 36 volt, low hours.
POST DATE:
1/7/2025
Equipment Description

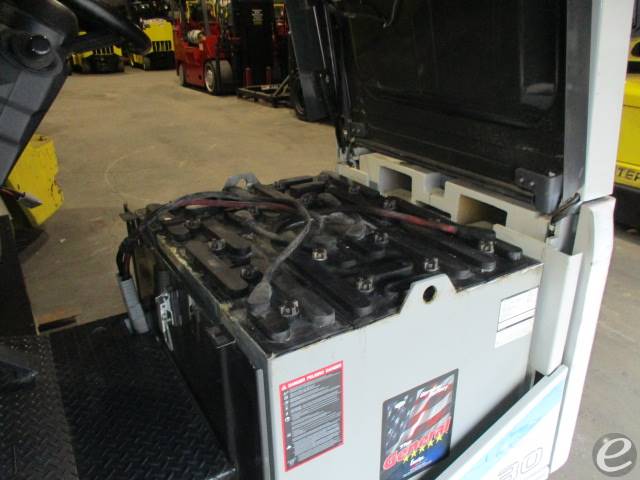

The full free lift triple stage mast is 88 inches lowered with 203 inches of lift, inch free lift, 65.6 inches of free lift, side shift, 42 inch forks, 32.4 inch carriage, 36 volt system. EQUIPPED WITH; ES Safety rating, AC drive, electronic dash display, on board diagnostics, adjustable steering column, single lift and tilt hydraulic control lever, work lights, safety strobe, premium cloth seat with seat belt, dual mirrors, 40% non mark tires, load back rest, operator manuals and 5142 hours. NOTE; Rear lights need to be replaced. Battery Info; General, 85G17, 36 volt, serial # MMJ1180665. Electrical Info; ES Electrically powered units are equipped with additional safeguards to the electrical system to prevent emission of hazardous sparks and to limit surface temperatures. Additional Specs; 80.9 inches long, 38.2 inch width, 86.2 inches to top of over head guard, 48 inch wheel base, 70.9 inch turning radius, 86.6 inch right angle stacking. This unit is clean, has all nice sheet metal and is in nice operating condition.
  • General Information
    • Manufacturer: Nissan
    • Model Number: BXC30/MCJ1BL15S
    • Type: Forklift
    • Subtype: Electric 4 Wheel Sit Down
    • Fuel Type: Electric
  • Dimensions
    • Total Length: 125 inches
    • Total Width: 43 inches
    • Height to Top of Overhead Guard: 82 inches
    • Minimum Aisle Width Required: 135 inches
    • Turning Radius: 90 inches
  • Weight
    • Service Weight: 8,000 lbs
  • Capacity
    • Load Capacity: 6,000 lbs
  • Performance
    • Travel Speed (with Load): 10 mph
    • Travel Speed (without Load): 11 mph
    • Lift Speed (with Load): 70 feet per minute
    • Lift Speed (without Load): 100 feet per minute
    • Gradeability (with Load): 15%
    • Gradeability (without Load): 18%
  • Battery
    • Voltage: 36V
    • Capacity: 750 Ah
  • Tires
    • Tire Type: Solid Pneumatic
    • Tire Size Front: 21 x 7 inches
    • Tire Size Rear: 16 x 6 inches
