Spec Sheet
  • General Specifications
    • Model Number: 3246ES
    • Manufacturer: JLG
    • Type: Electric Scissor Lift
  • Dimensions
    • Platform Height: 32 ft
    • Machine Width: 3 ft 10 in
    • Machine Length: 8 ft 3 in
    • Machine Height (Stowed): 6 ft 7 in
    • Platform Extension Deck Length: 3 ft
    • Ground Clearance (Stowed): 4 in
  • Capacity
    • Platform Capacity: 1,000 lbs
    • Platform Capacity (Extension): 250 lbs
    • Maximum Number of Occupants: 2
  • Performance
    • Drive Speed (Lowered): 2.5 mph
    • Drive Speed (Elevated): 0.5 mph
    • Drive System: Electric
    • Gradeability: 25%
    • Turning Radius (Inside): Zero
    • Turning Radius (Outside): 7 ft
  • Power Source
    • Battery: 24V DC, 4 x 6V, 220 Ah
    • Charger: 20 Amp Automatic
  • Tires
    • Tire Type: Solid, Non-Marking
    • Tire Size: 16 x 5 in
  • Weight
    • Machine Weight: 4,975 lbs
  • Environment
    • Indoor/Outdoor Rated
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

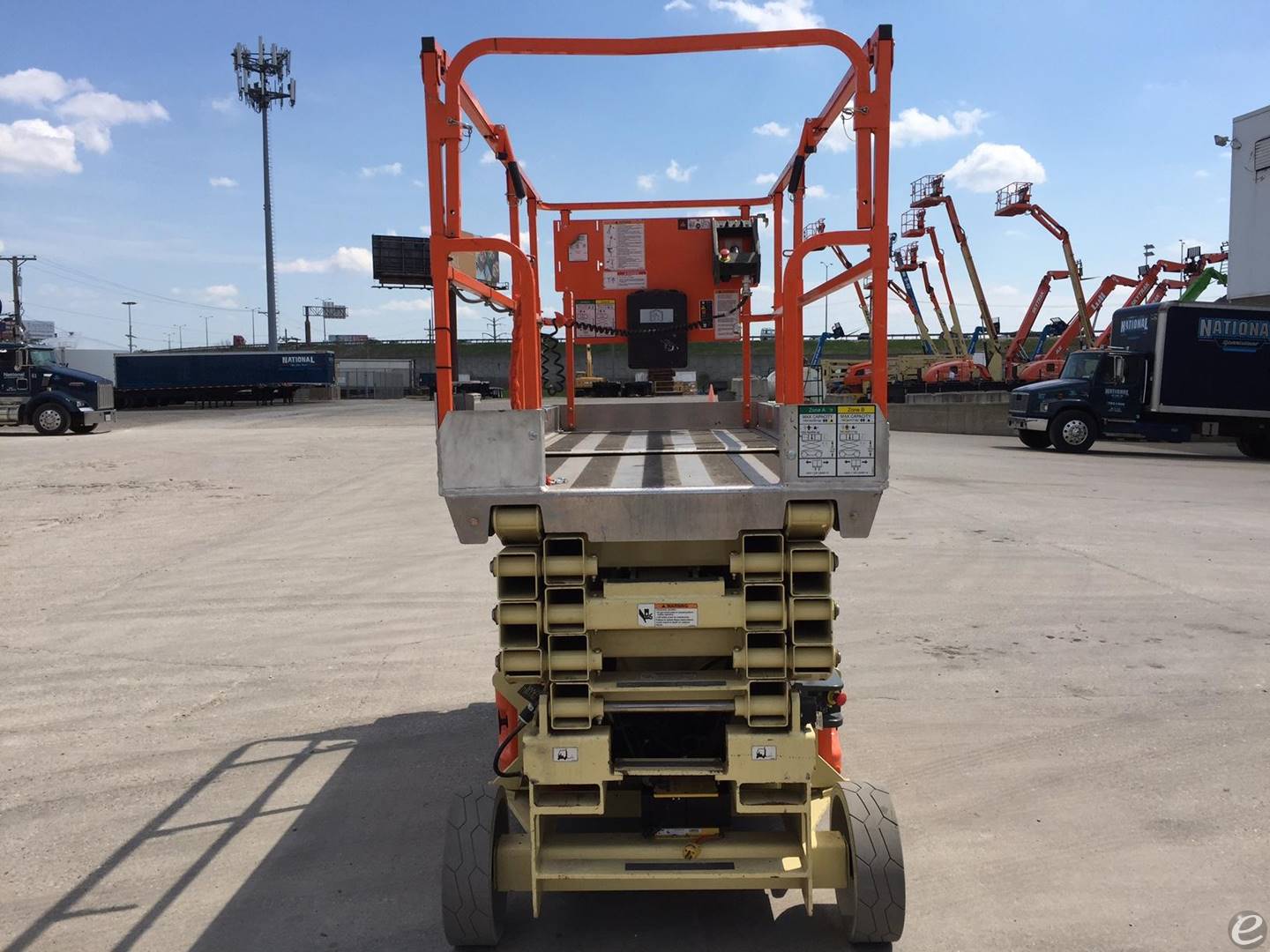

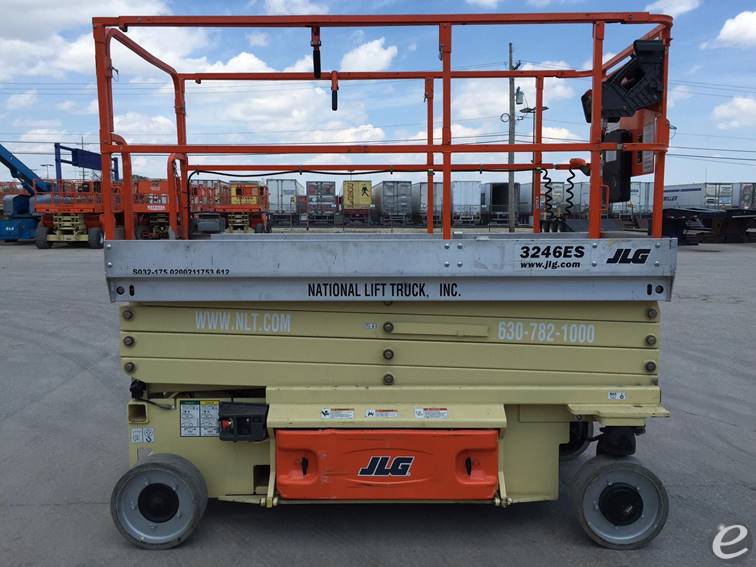

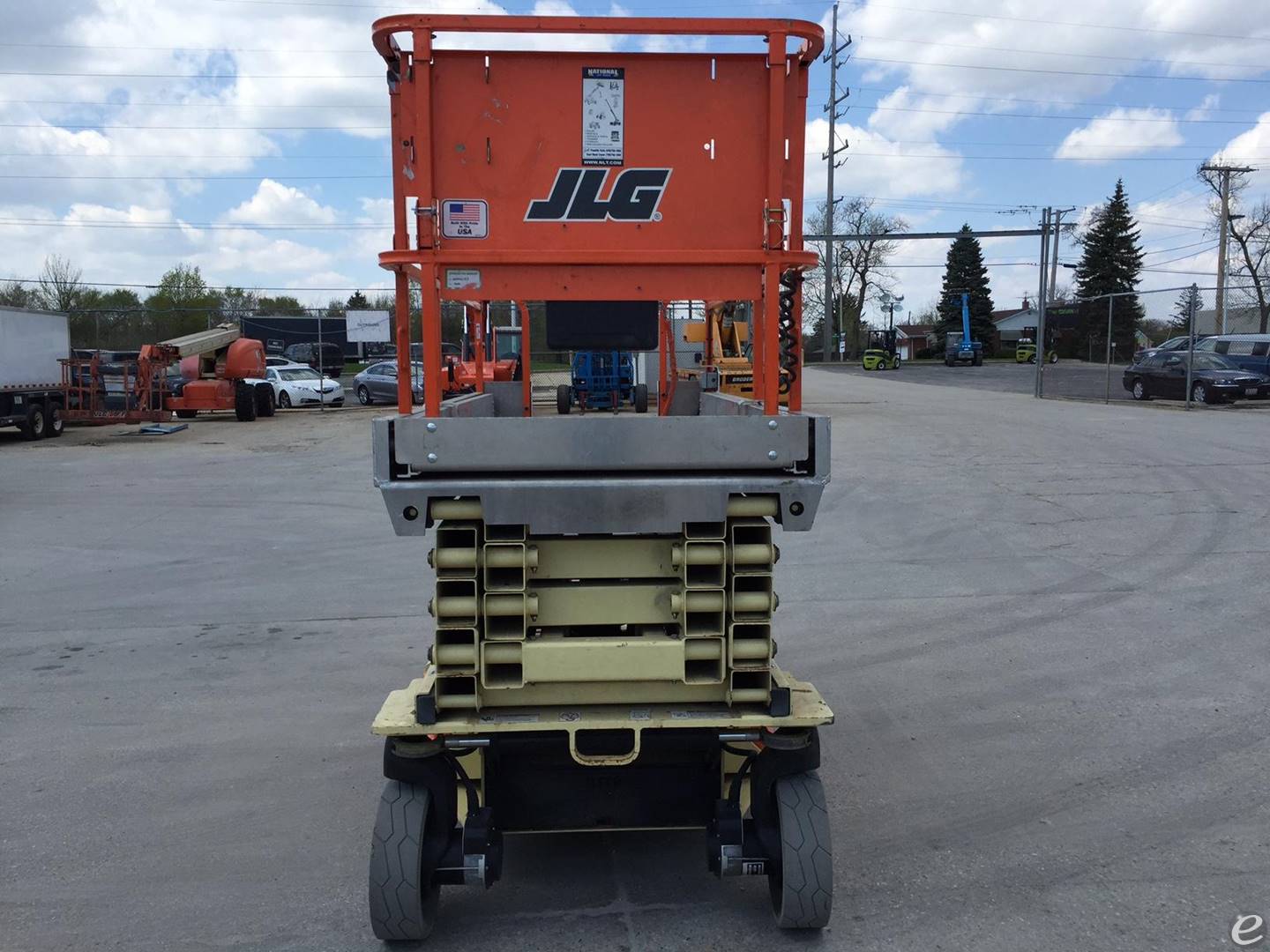

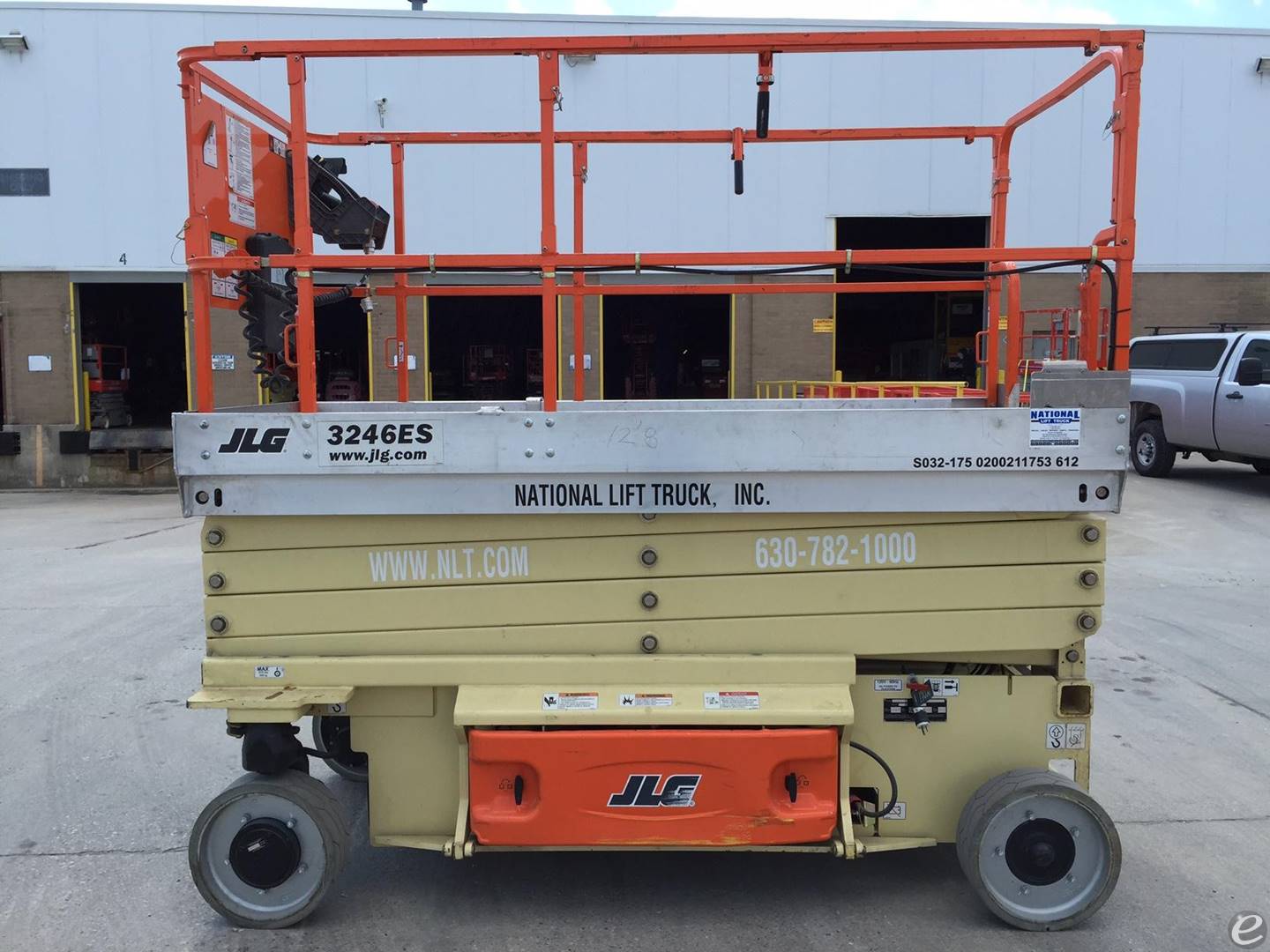

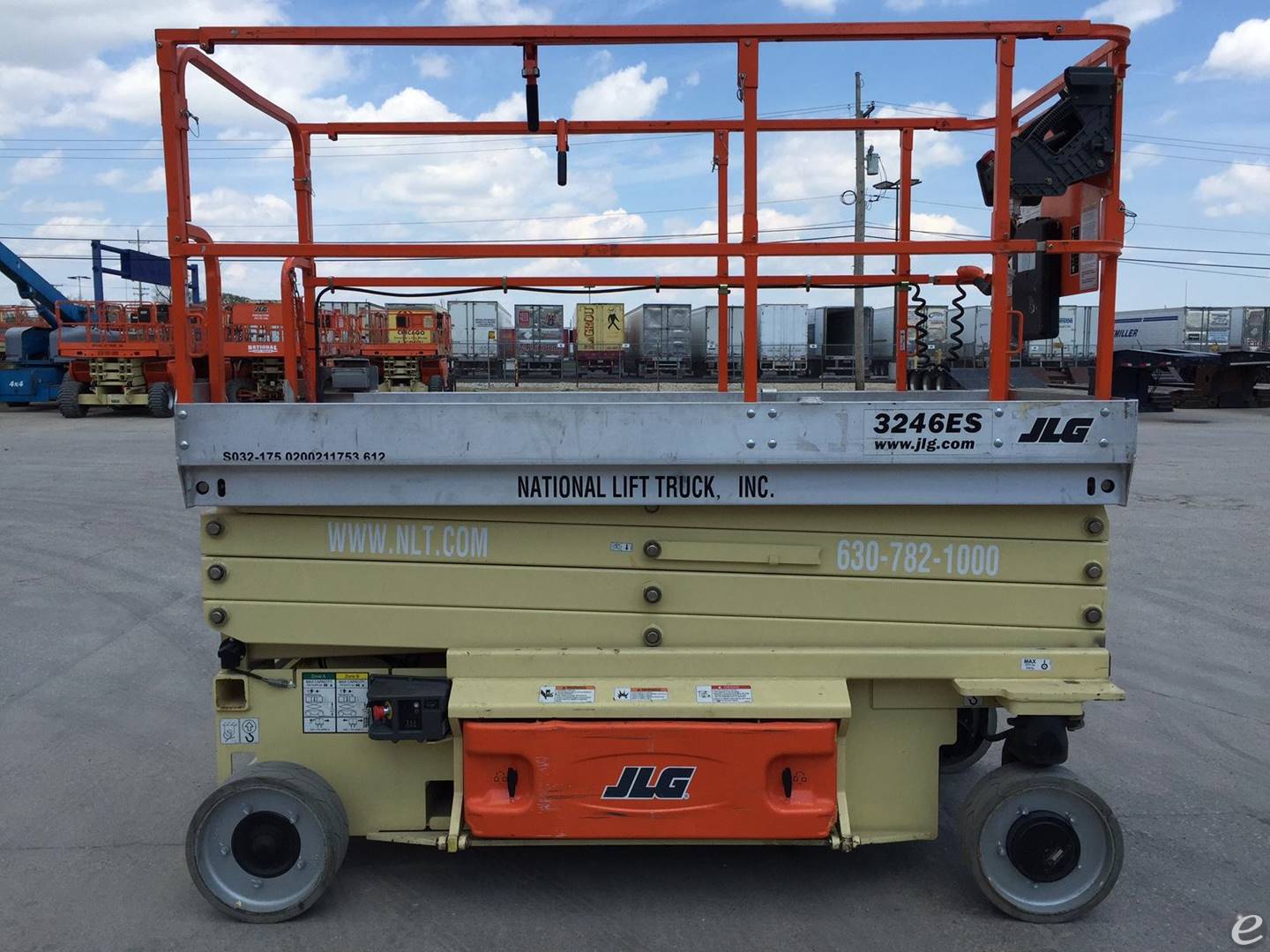

2012 JLG 3246ES

slab electric

Call for price

CONTACT INFO
Name:
Geoff Dietz
Phone:

ADDRESS
National Lift Truck, Inc.
3333 Mt. Prospect Rd.
Franklin ParkIllinois 60131
ATTRIBUTES
STOCK #:
S032-175
YEAR:
2012
Manufacturer:
MODEL #:
Drive:
2WD
SUBCATEGORY:
Height:
32 ft
FUEL:
CONDITION:
Used
LOCATION:
Illinois [60131]
DESCRIPTION:
32' Scissors lift, NM Tires, Extension Deck
POST DATE:
8/15/2025
Reviews
Useful
Not

The JLG 3246ES vertical mast scissor lift has really impressed me with its compact design and easy maneuverability around tight spaces on the job site. Just the other day, we had to tackle some overhead work that seemed impossible without a lift, but this machine made it a breeze. I remember feeling a mix of nervousness and excitement as I was working several feet off the ground, but the stability offered by this scissor lift really boosted my confidence. It’s definitely become my go-to for those projects that need a little extra height. Overall, if you're in need of a reliable lift for indoor or outdoor tasks, this one holds its own quite well.


Review by Jake Thompson
