Equipment Description

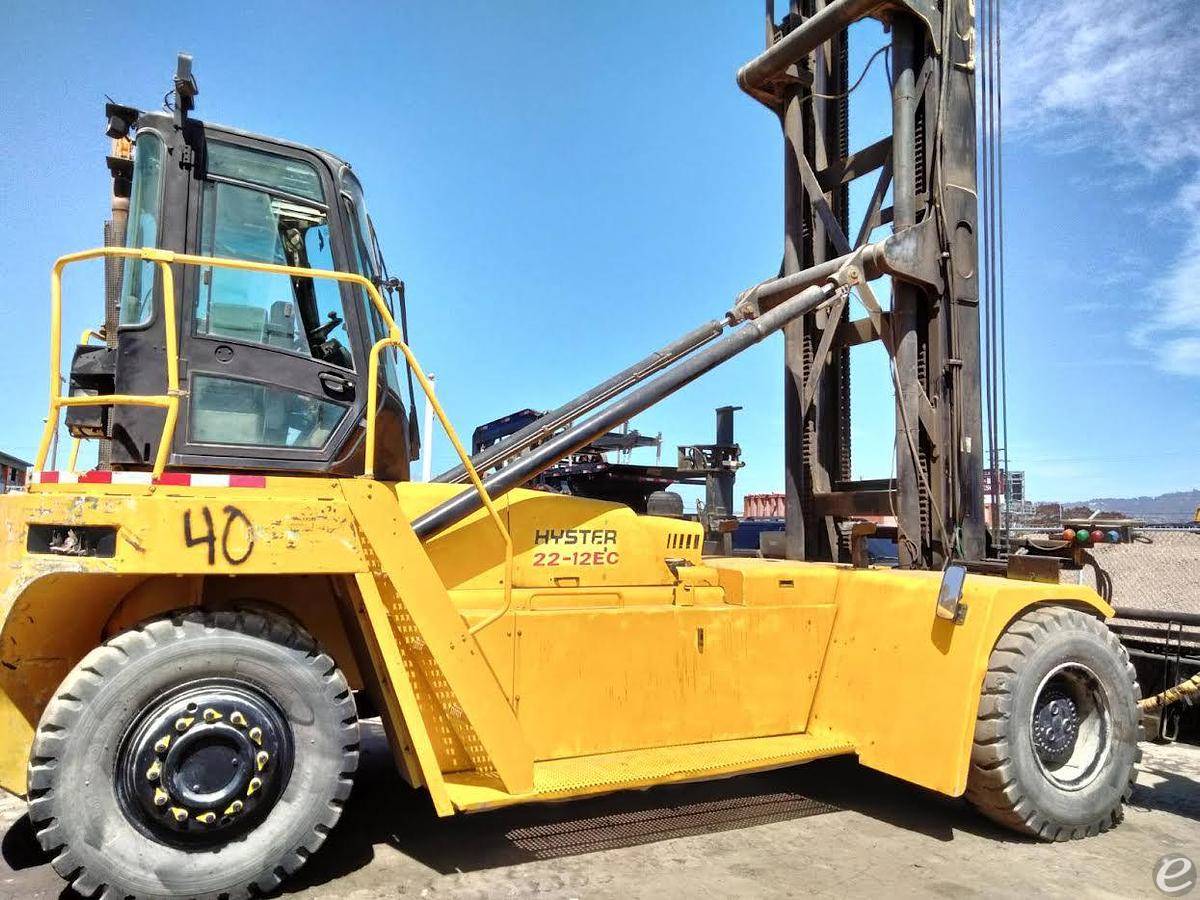

TWO AVAILABLE! The 2012 Hyster H22.00XM-12EC is a heavy-duty diesel-powered empty container handler with a nominal lift capacity of 19,800 lbs and a maximum stacking height of approximately 53'. Equipped with a Cummins QSB6.7 diesel engine, Duplex mast, and Elme telescopic spreader for 20-40ft containers. Specs: Hours 19,629. Capacity 19,800 lbs at 48 in load center. Lift height up to 54 ft. Dana TE17000 3-speed automatic transmission. Pneumatic tires (14.00-24). Joystick control for mast and spreader. Stacks up to 7 high single, 2-on-6 double stacking. Contact us for pricing — call 214-469-7588
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Manufacturer: Hyster
  • Model Number: H22.00XM-12EC
  • Type: Forklift
  • Subtype: Container Handlers (Loaded/Empty)
  • Fuel Type: Diesel
  • Performance
    • Capacity: 48,501 lbs
    • Engine Type: Diesel
    • Travel Speed: Approx. 15 mph (unloaded)
    • Lifting Speed: Approx. 1 ft/s (unloaded)
  • Dimensions
    • Overall Length: Approx. 31 ft
    • Overall Width: Approx. 10 ft
    • Overall Height: Approx. 14 ft
    • Wheelbase: Approx. 17 ft
  • Engine and Drive
    • Engine Manufacturer: Cummins
    • Engine Model: QSM11
    • Rated Speed: Approx. 2,100 rpm
    • Transmission Type: Powershift
  • Weights
    • Empty Weight: Approx. 88,185 lbs
    • Axle Load, Front (Unladen): Approx. 47,399 lbs
    • Axle Load, Rear (Unladen): Approx. 40,786 lbs
  • Hydraulic System
    • Hydraulic Pressure: Approx. 3,336 psi
  • Noise and Vibration
    • Noise Level: Approx. 82 dB(A)

2012 Hyster H22.00XM-12EC

container handlers (loaded/empty) diesel

Call for price

CONTACT INFO
Name:
Gerald Dyson
Phone:

ADDRESS
North Texas Equipment Services LLC.
409 Woodhollow Dr
Wylie, Texas 75098
ATTRIBUTES
STOCK #:
01541
YEAR:
2012
Manufacturer:
MODEL #:
CAPACITY:
19800
FUEL:
MAST TYPE:
MAST HEIGHT:
648 in
ATTACHMENT INCLUDED:
None
VALVE & HOSING:
Standard Valves & Hosing
SIDE SHIFTER:
No
CONDITION:
Used
HOUR METER:
19629
UNIT LOCATION:
Texas [75098]
DESCRIPTION:
2012 HYSTER H22.00XM-12EC - TWO AVAILABLE!
POST DATE:
10/7/2026
Reviews
Useful
Not

The Hyster Model H22.00XM-12EC is quite the reliable workhorse in the world of container handlers. Having spent quite a bit of time operating one at the warehouse where my buddy works, I can say it gets the job done without fuss. Whether it’s loading or unloading full containers, it has the power and stability to handle the weight. The diesel engine gives it a toughness you can feel, perfect for those long days on the dock. Plus, steering it feels intuitive, which is a big help when you’re navigating tight spots. Overall, pretty solid performance that makes those heavy-duty tasks feel manageable.



Review by Mike Dawson (6/8/2025)

  • Manufacturer: Hyster
  • Model Number: H22.00XM-12EC
  • Type: Forklift
  • Subtype: Container Handlers (Loaded/Empty)
  • Fuel Type: Diesel
  • Performance
    • Capacity: 48,501 lbs
    • Engine Type: Diesel
    • Travel Speed: Approx. 15 mph (unloaded)
    • Lifting Speed: Approx. 1 ft/s (unloaded)
  • Dimensions
    • Overall Length: Approx. 31 ft
    • Overall Width: Approx. 10 ft
    • Overall Height: Approx. 14 ft
    • Wheelbase: Approx. 17 ft
  • Engine and Drive
    • Engine Manufacturer: Cummins
    • Engine Model: QSM11
    • Rated Speed: Approx. 2,100 rpm
    • Transmission Type: Powershift
  • Weights
    • Empty Weight: Approx. 88,185 lbs
    • Axle Load, Front (Unladen): Approx. 47,399 lbs
    • Axle Load, Rear (Unladen): Approx. 40,786 lbs
  • Hydraulic System
    • Hydraulic Pressure: Approx. 3,336 psi
  • Noise and Vibration
    • Noise Level: Approx. 82 dB(A)
