Equipment Description

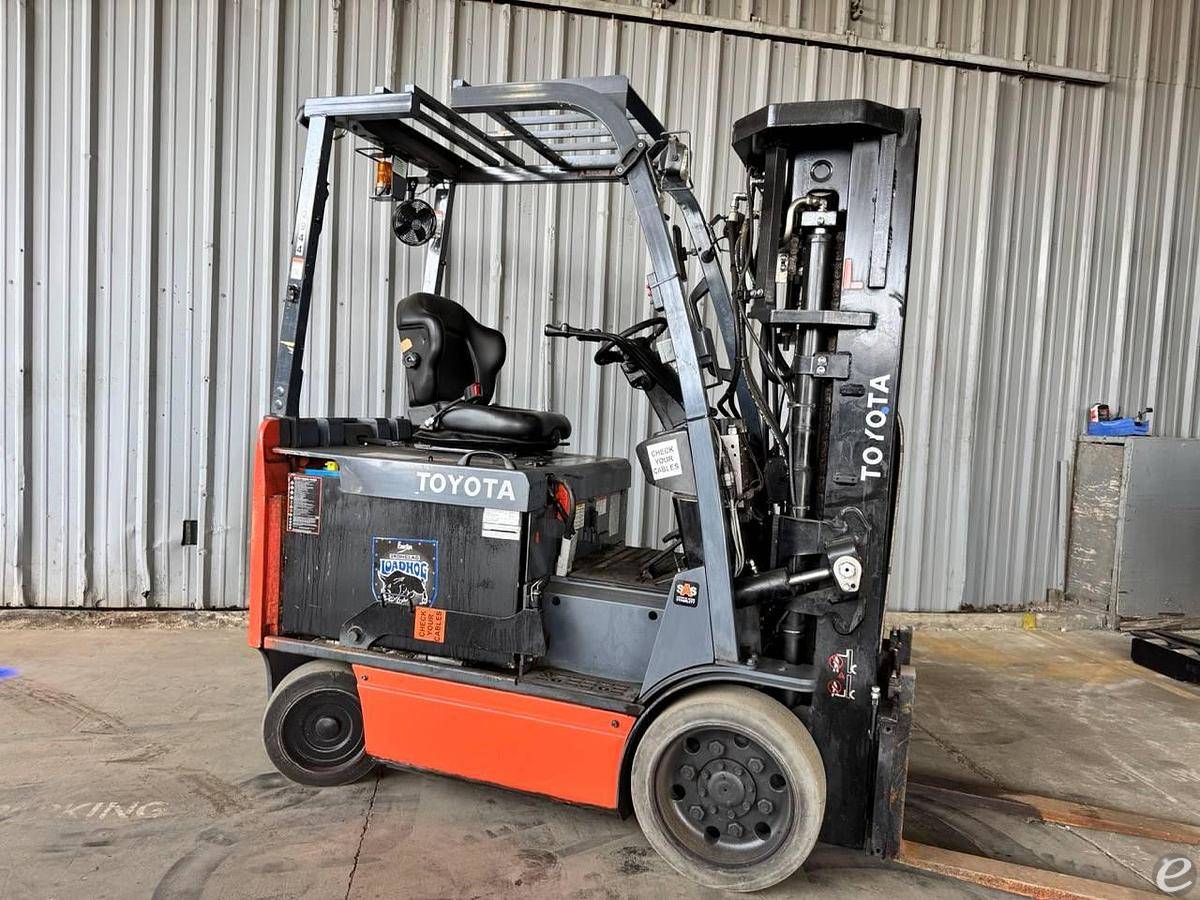

RECONDITIONED 2016 TOYOTA 8FBCHU25 - 5,000 lb capacity electric forklift with 20 ft quad mast and 241 inch maximum lift height. Dual voltage capability - 36 or 48 volt - with reconditioned battery and charger included. Non-marking warehouse cushion tires. 4 way hydraulic valve and hosing to the carriage; side shifts and 48x48 carton clamps available. Fully reconditioned, serviced, tested and inspected! Powertrain warranty included. Contact us for pricing — call 214-469-7588
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Information
    • Model Number: 8FBCHU25
    • Manufacturer: Toyota
    • Type: Electric Forklift
  • Power
    • Power Type: Electric
    • Battery Voltage: 48 Volts
    • Battery Capacity: Approximately 560 - 700 Ah
  • Dimensions
    • Overall Length: Approximately 120 inches (varies based on fork length)
    • Overall Width: Approximately 45 inches
    • Overall Height: Approximately 86 - 89 inches
    • Wheelbase: Approximately 58 inches
  • Performance
    • Load Capacity: Up to 5,000 lbs
    • Travel Speed: Approximately 11 - 12 mph (no load)
    • Gradeability: Around 15% (loaded)
    • Turning Radius: Approximately 78 inches
  • Weight
    • Service Weight: Approximately 9,200 lbs
  • Tires
    • Front Tires: Cushion
    • Rear Tires: Cushion
    • Tire Size Front: Typically 21 x 7 inches
    • Tire Size Rear: Typically 16 x 5 inches
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical Lever
  • Hydraulic System
    • Hydraulic Pressure: Approximately 2,650 psi

2016 Toyota 8FBCHU25

electric 4 wheel sit down

Call for price

CONTACT INFO
Name:
Gerald Dyson
Phone:

ADDRESS
North Texas Equipment Services LLC.
409 Woodhollow Dr
Wylie, Texas 75098
ATTRIBUTES
STOCK #:
01603
YEAR:
2016
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
MAST TYPE:
MAST HEIGHT:
241 in
ATTACHMENT INCLUDED:
None
VALVE & HOSING:
4-Way Hydraulic Valve & Hosing
SIDE SHIFTER:
No
CONDITION:
Used
UNIT LOCATION:
Texas [75098]
DESCRIPTION:
Reconditioned 2016 Toyota 8FBCHU25 5,000 lb Electric
POST DATE:
10/7/2026
Reviews
Useful
Not

The Toyota 8FBCHU25 forklift is a solid option for anyone needing a reliable workhorse. Having spent a summer managing a warehouse, this forklift really stood out because of its maneuverability. It was surprising how easily it handled tight corners, which made loading and unloading a breeze. The performance was smooth, and I never felt it struggled even under heavy loads. It just seems to get the job done efficiently without much fuss. If you're looking for a dependable forklift, you really can't go wrong with this model.



Review by Jake Thompson (1/8/2026)
