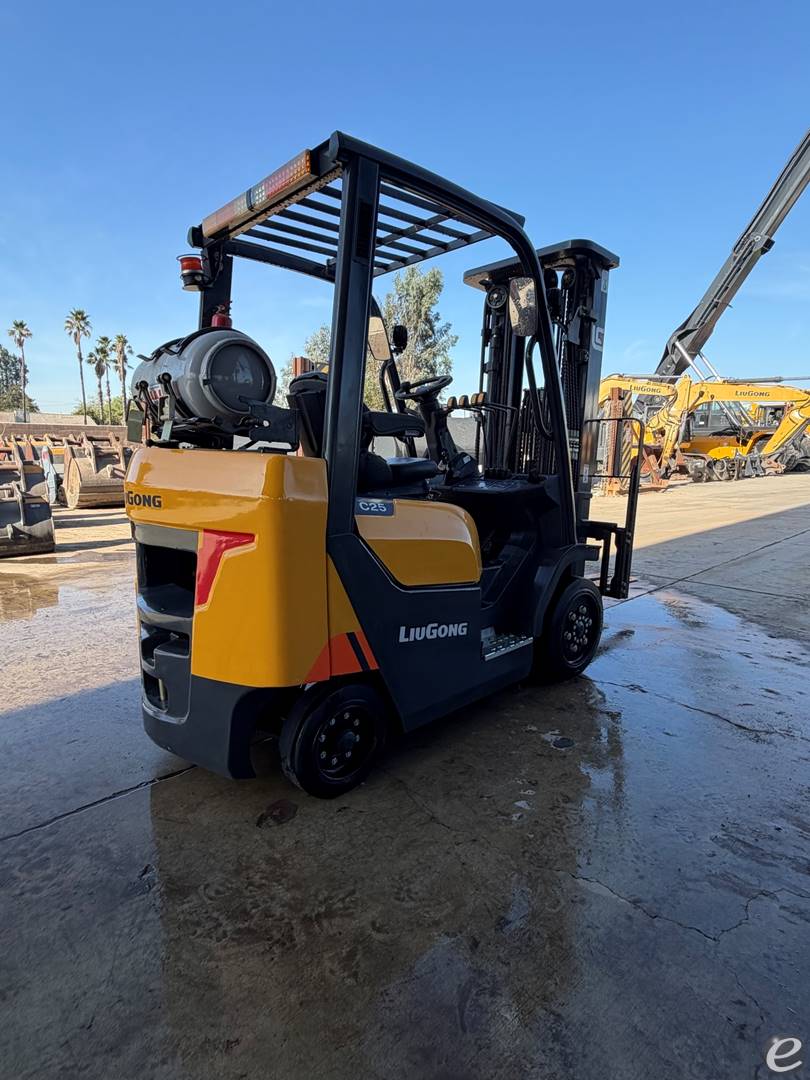

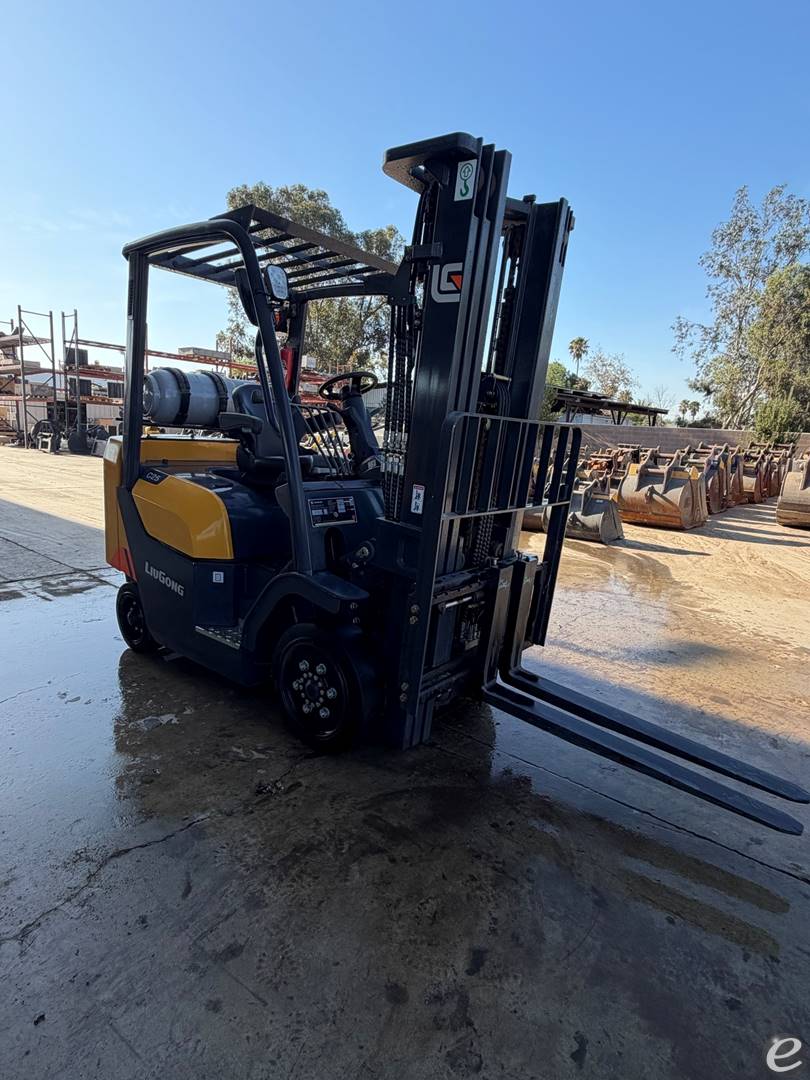

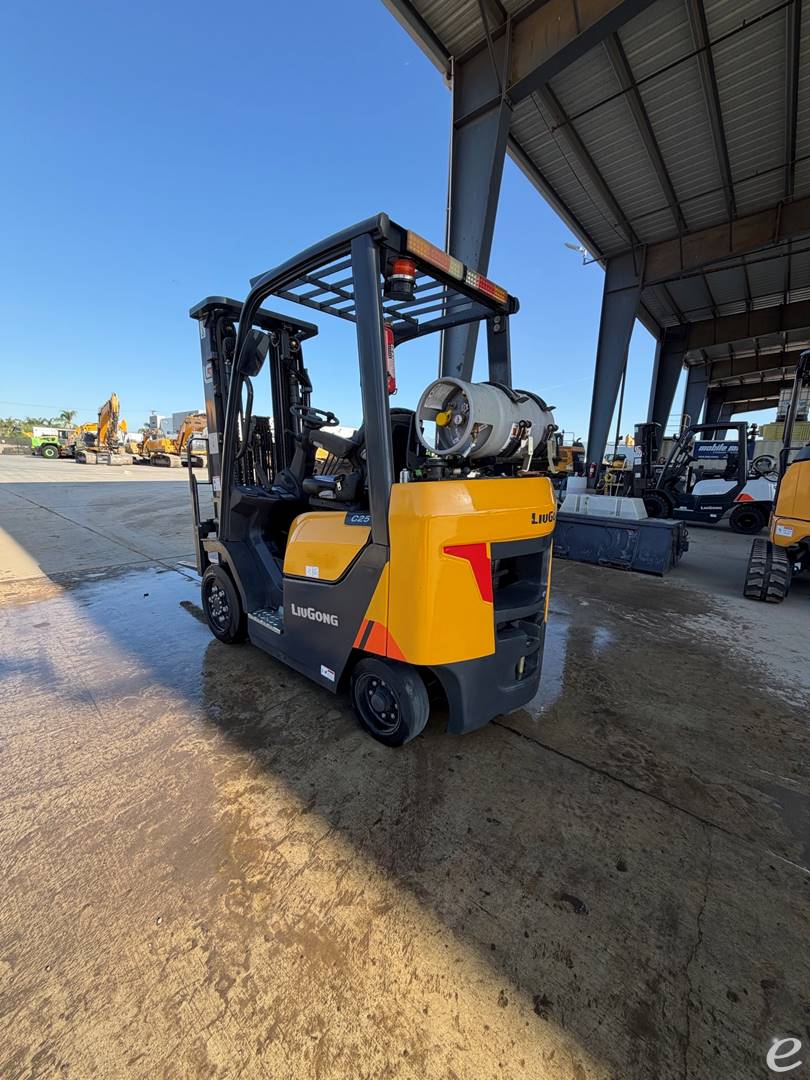

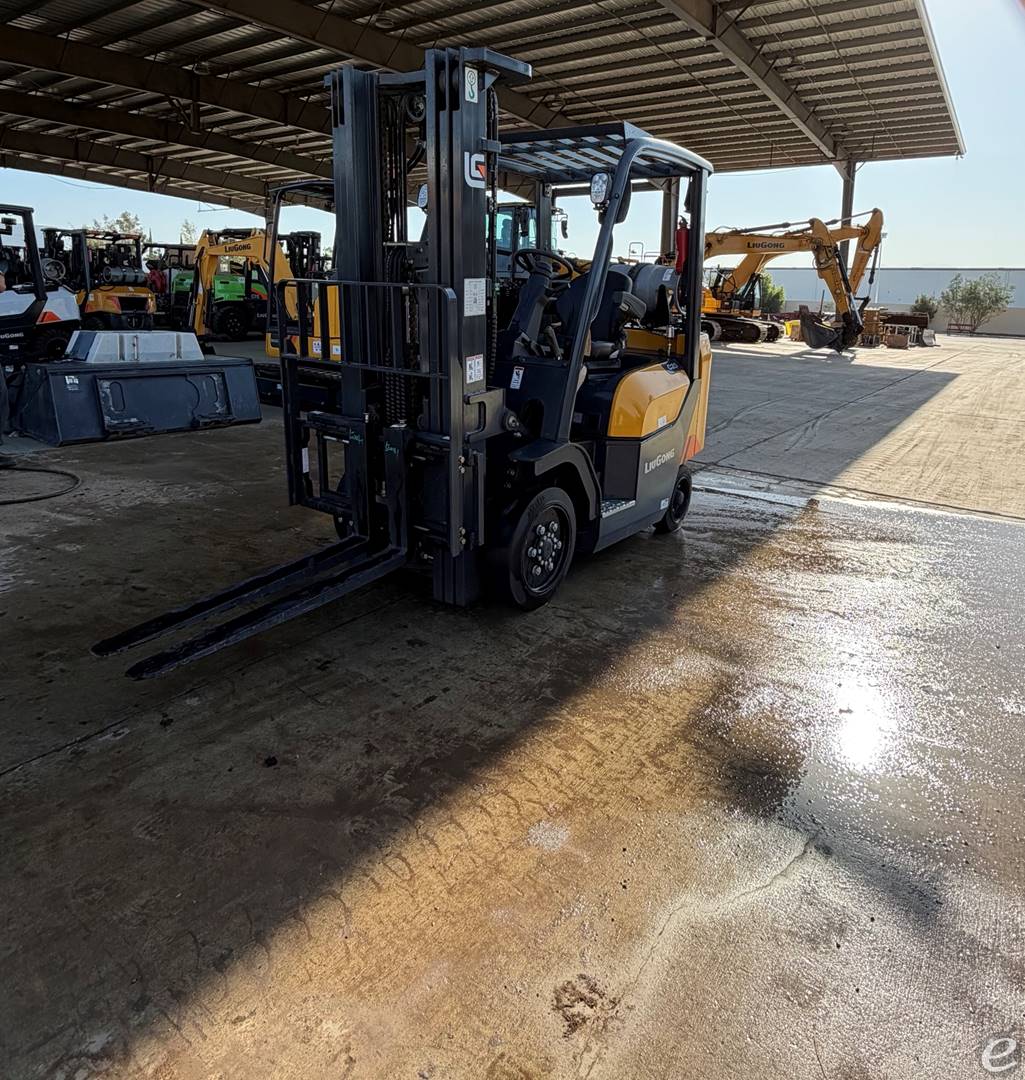

LiuGong CLG2025G-C LPG Cushion Tire Forklift – This Class IV internal combustion forklift delivers 5,000 lbs (2,200 kg) capacity at a 24" load center, powered by a reliable Kubota WJ2503-L-E3 2.491L 4-cylinder LPG engine producing 55.3 HP at 2,600 RPM and 175 N·m of torque at 1,200 RPM, with EU Stage V and EPA emissions compliance for clean indoor operation. The standard 3-stage full free-lift mast offers a maximum fork height of 185" (4,700 mm) with 46" (1,170 mm) of free lift, lowering to 87.2" (2,215 mm) and extending to 227.3" (5,774 mm), with 6° forward and 6° backward mast tilt, and is equipped with a 36.2" wide carriage, 42.1" x 4.8" x 1.6" forks with a minimum fork spread of 9.6" and maximum of 35.6", along with auxiliary hydraulic plumbing for optional attachments such as side shifters, fork positioners, rotators, or clamps; please inquire about 2-way, 3-way, or 4-way hydraulic valve configurations depending on your attachment needs. This unit features cushion tires (front: 21x7-15, rear: 16x5x10-1/2) on a 58.5" wheelbase with a front tread of 35" and rear tread of 36.2", delivering a tight 78.7" minimum outside turning radius and a right-angle stack of 143.3" including load length and clearance, with travel speeds of 10.6 mph loaded and unloaded, lift speeds of 112 fpm loaded and 116 fpm unloaded, lower speeds of 97.6 fpm loaded and unloaded, maximum drawbar pull of 4,290 lbs loaded, and gradeability of 30% loaded and 28% unloaded. Weighing 8,514 lbs unloaded with axle loads of 11,900 lbs front and 3,670 lbs rear when loaded and 1,454 lbs front and 4,844 lbs rear when unloaded, the chassis measures 92.1" to fork face, 43.3" overall width, and 83.5" overhead guard height, with ground clearance of 3.1" below the mast loaded and 3.9" at the center of the wheelbase, while service brakes are foot-operated hydraulic and parking brake is hand-operated mechanical. Optional equipment can include non-marking tires, foam-filled tires, 72" forks, enclosed cabs, side shifters, fork positioners, and 3-way or 4-way hydraulic valves to match your specific material handling needs—contact us today for more details, pricing, or to schedule an inspection.
