Equipment Description

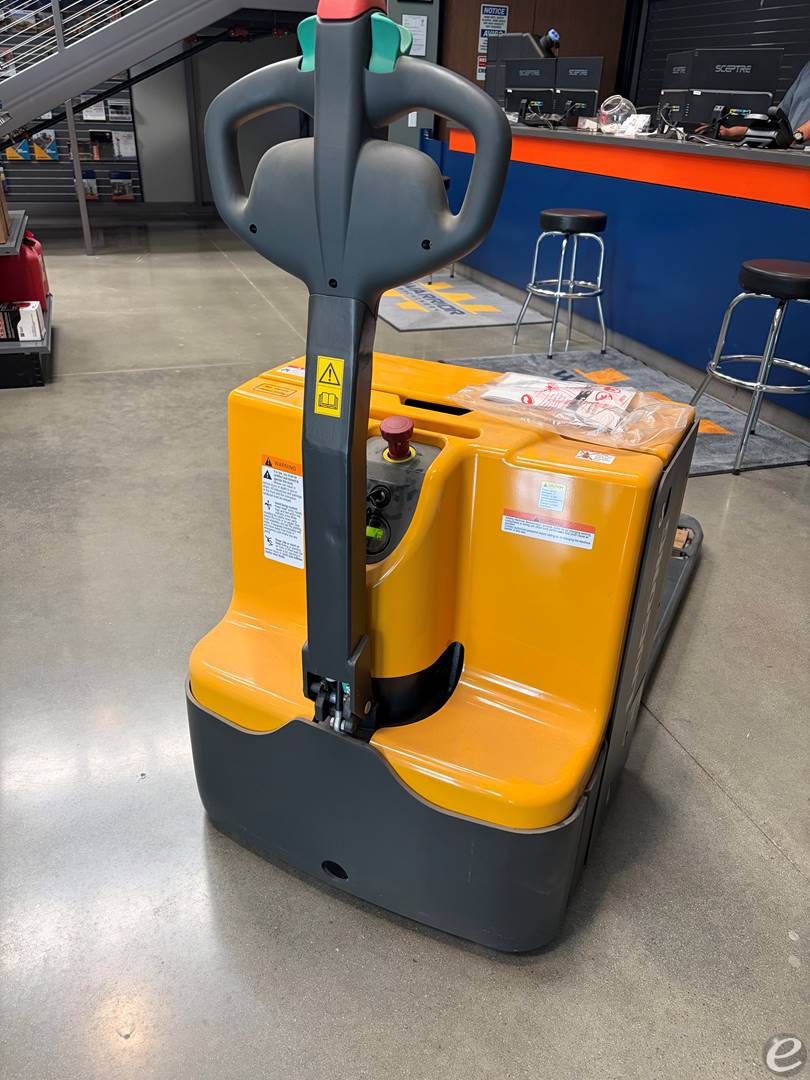

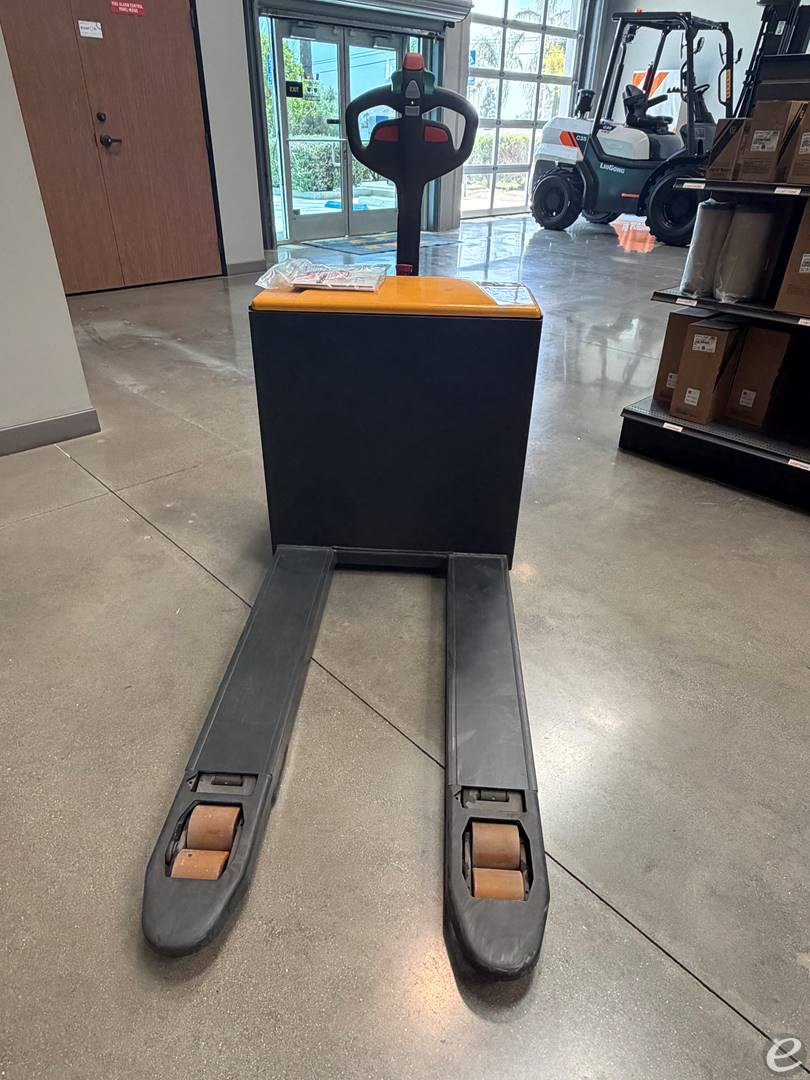

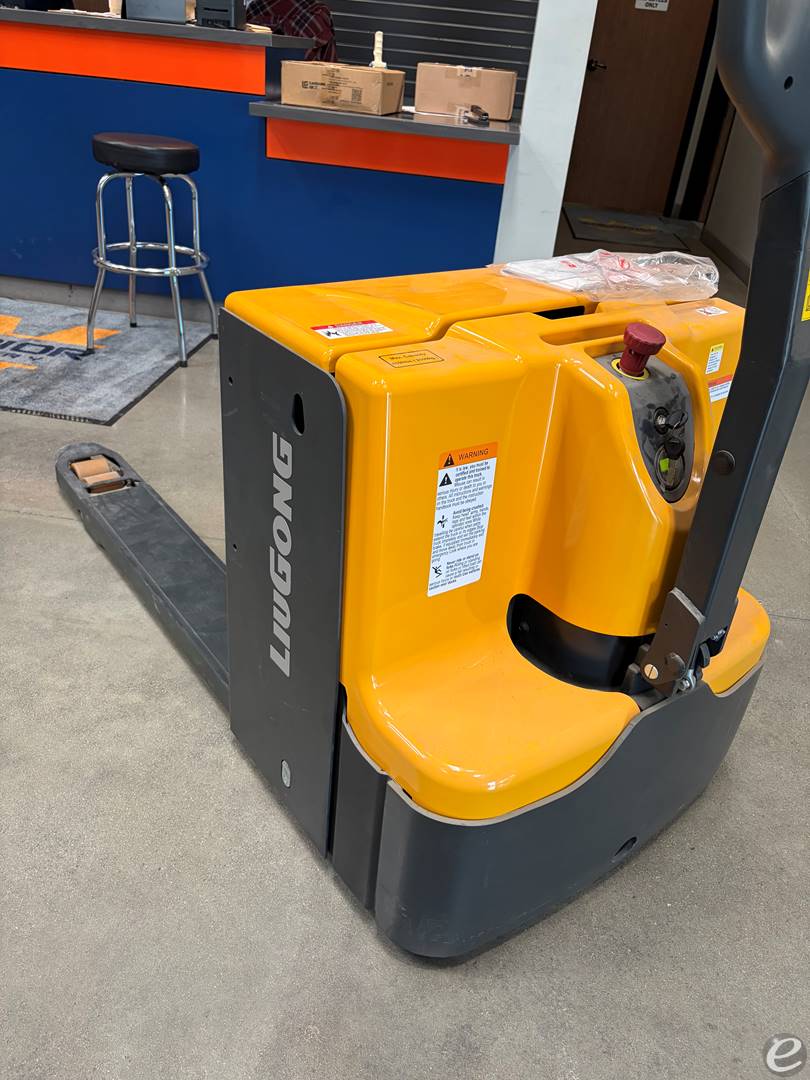

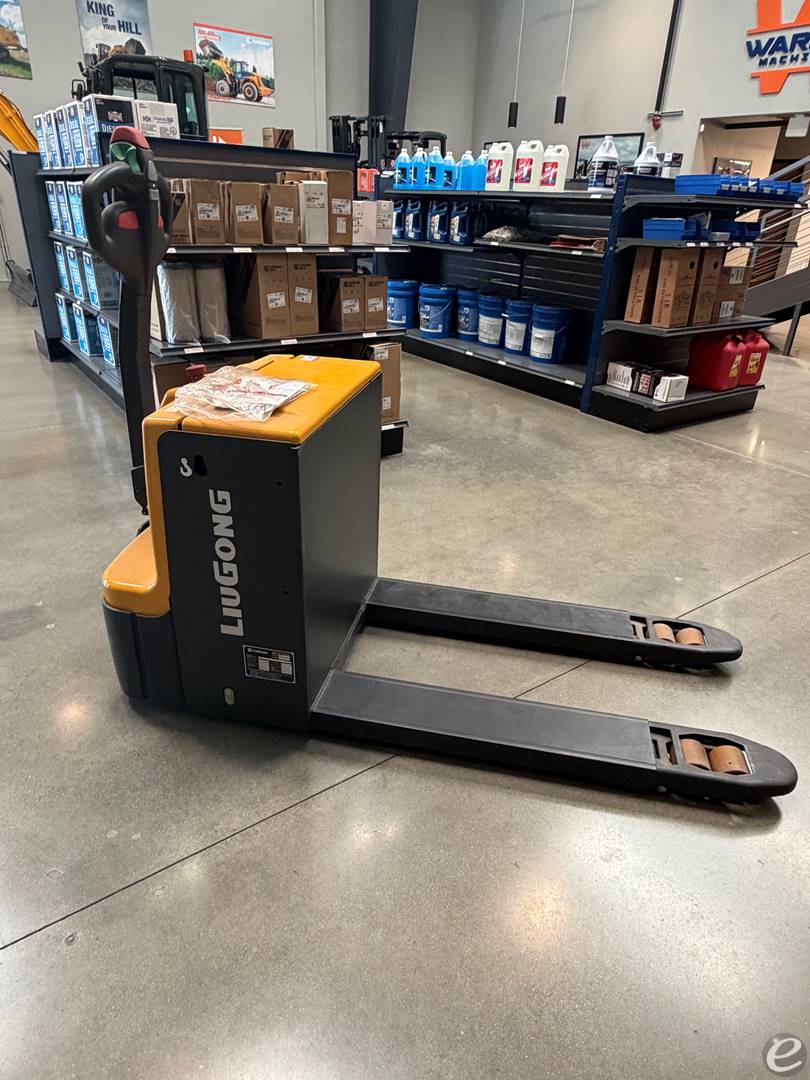

The LiuGong CLG2020L-WA/N is an electric pedestrian pallet truck offering 2,000 kg capacity at a 600 mm load center, with overall dimensions of 1,735 mm in length, 690 mm in width, and a lowered fork height of 85 mm, featuring a lifting height of 125 mm, fork size of 60 x 173 x 1,150 mm with a fork spread of 540 to 685 mm, and a wheelbase of 1,327 mm. The unit delivers travel speeds of 5.7 km/h loaded and 6.0 km/h unloaded, lift speeds of 22 mm/s loaded and 30 mm/s unloaded, lower speeds of 35 mm/s loaded and unloaded, and gradeability of 8% loaded and 15% unloaded, with a turning radius of 1,490 mm and aisle widths of 2,005 mm for 1,000 x 1,200 mm pallets and 1,955 mm for 800 x 1,200 mm pallets. Powered by a 1.3 kW drive motor and 0.8 kW lift motor, it uses a 210 Ah / 24 V battery, weighs 535 kg unloaded with a 215 kg battery, and rides on four PU tread wheels (Φ84 x 84 mm) with a 367/512 mm tread width, two balance wheels (Φ100 x 40 mm), and one drive wheel (Φ230 x 70 mm).

Spec Sheet
