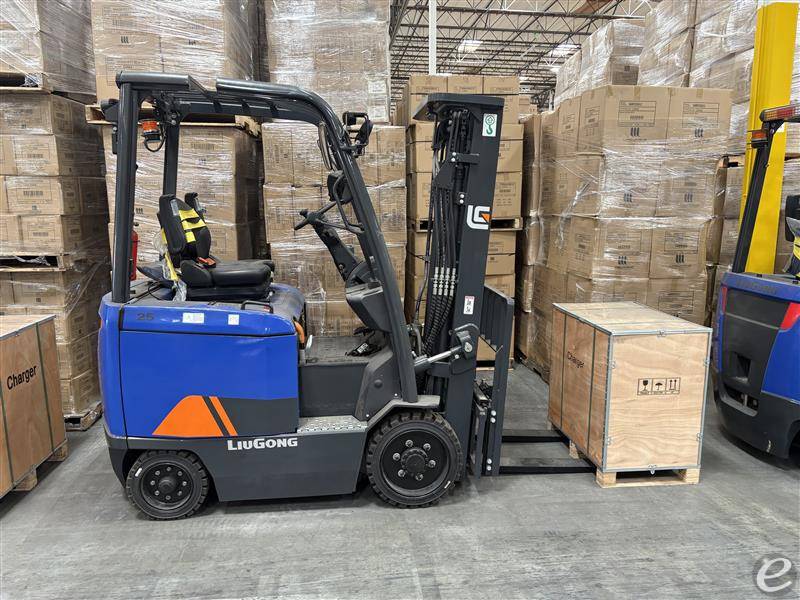

The LiuGong CLG2025A-SC is an electric sit-down rider forklift delivering 5,000 lbs (2,500 kg) capacity at a 24-inch (500 mm) load center, powered by an efficient electric drive system with a 48-volt battery offering 1,130 Ah capacity, and features a 3-stage mast with a maximum fork height of 185 inches (4,700 mm) and 46 inches (1,170 mm) of free lift, lowering to 87.2 inches (2,215 mm) and extending to 227.3 inches (5,774 mm), with 5 degrees forward and 8 degrees backward mast tilt, along with a 36.2-inch carriage, 42.1 x 4.8 x 1.6 inch forks, and a standard side shifter for precise load positioning. The forklift rides on cushion tires (front: 21x7x15, rear: 16x5x10.5) on a 51-inch wheelbase with a front tread of 35 inches and rear tread of 36.2 inches, delivering a tight 72.8-inch minimum outside turning radius and a right-angle stack of 134.8 inches including load length and clearance, with travel speeds of 11.5 mph loaded and unloaded, lift speeds of 88.6 fpm loaded and 126 fpm unloaded, lower speeds of 102.4 fpm loaded and 98.4 fpm unloaded, maximum drawbar pull of 3,190 lbs, and gradeability of 20%. Weighing 9,680 lbs unloaded with axle loads of 13,222 lbs front and 2,090 lbs rear when loaded and 3,740 lbs front and 5,940 lbs rear when unloaded, the chassis measures 83.4 inches to fork face, 42.5 inches overall width, and 88 inches overhead guard height, with ground clearance of 3 inches below the mast loaded and 3.9 inches at the center of the wheelbase, while service brakes are foot-operated hydraulic and parking brake is hand-operated mechanical. Optional equipment can include non-marking tires, foam-filled tires, enclosed cabs, fork positioners, rotators, clamps, and 3-way or 4-way hydraulic valve configurations to match your specific material handling needs. Contact us today for more details, pricing, or to schedule an inspection.
