Overview
Spec Sheet
Shipping/Freight
Equipment Description
Crown Order-picker electric forklift. Please call if you cannot find what you are looking for. SPEC SHEET Manufacturer: Crown Model Number: SP3405-30 Type: Forklift Subtype: Electric Order Picker Fuel Type: Electric Dimensions and Weight Overall Length: Approx. 8 feet Overall Width: Approx. 3 feet Truck Weight without Load: Approx. 7,500 lbs Performance Load Capacity: 3,000 lbs Travel Speed (loaded): 6 mph Travel Speed (unloaded): 6.5 mph Lift Speed (loaded): 60 fpm Lift Speed (unloaded): 100 fpm Lowering Speed (loaded): 100 fpm Lowering Speed (unloaded): 120 fpm Power and Drive Drive Motor: 6.5 hp Lift Motor: 6.0 hp Battery Voltage: 24V Battery Capacity: 510 Ah Fork and Load Handling Fork Length: Varies Fork Width: 8 inches Fork Spread: 36 inches Additional Features Operator Platform: Stand-up Steering: Electric Power Steering Braking System: Regenerative Control Type: AC Traction Control Onboard Diagnostic Display
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Manufacturer: Crown
  • Model Number: SP3405-30
  • Type: Forklift
  • Subtype: Electric Order Picker
  • Fuel Type: Electric
  • Dimensions and Weight
    • Overall Length: Approx. 8 feet
    • Overall Width: Approx. 3 feet
    • Truck Weight without Load: Approx. 7,500 lbs
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed (loaded): 6 mph
    • Travel Speed (unloaded): 6.5 mph
    • Lift Speed (loaded): 60 fpm
    • Lift Speed (unloaded): 100 fpm
    • Lowering Speed (loaded): 100 fpm
    • Lowering Speed (unloaded): 120 fpm
  • Power and Drive
    • Drive Motor: 6.5 hp
    • Lift Motor: 6.0 hp
    • Battery Voltage: 24V
    • Battery Capacity: 510 Ah
  • Fork and Load Handling
    • Fork Length: Varies
    • Fork Width: 8 inches
    • Fork Spread: 36 inches
  • Additional Features
    • Operator Platform: Stand-up
    • Steering: Electric Power Steering
    • Braking System: Regenerative
    • Control Type: AC Traction Control
    • Onboard Diagnostic Display

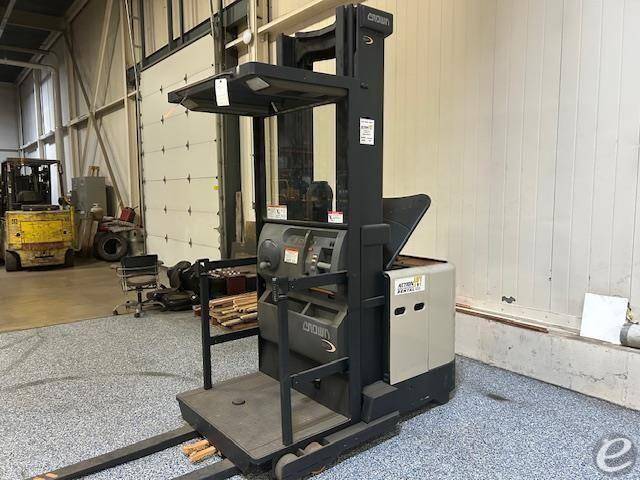

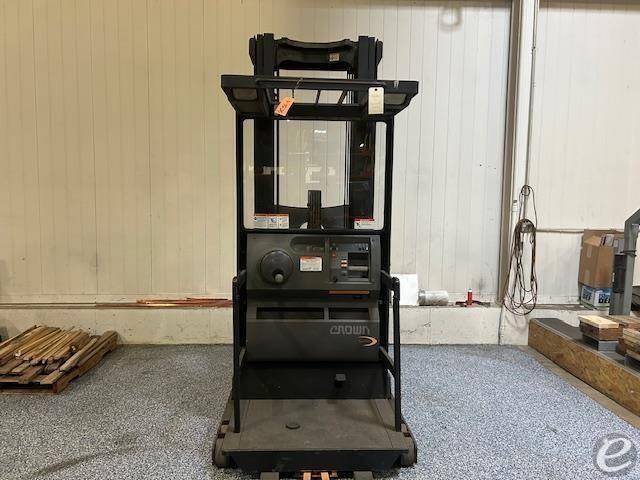

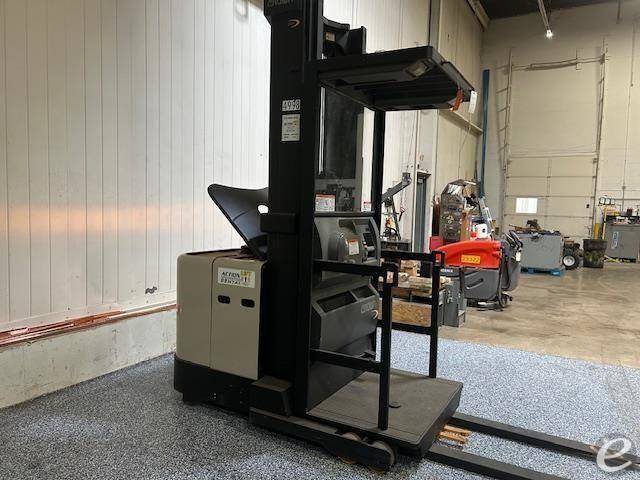

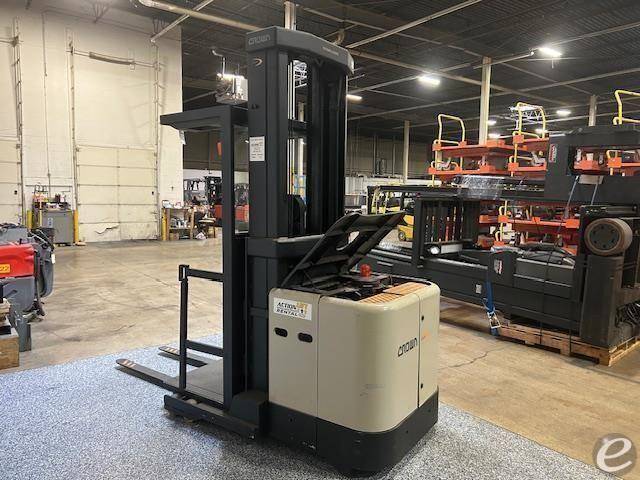

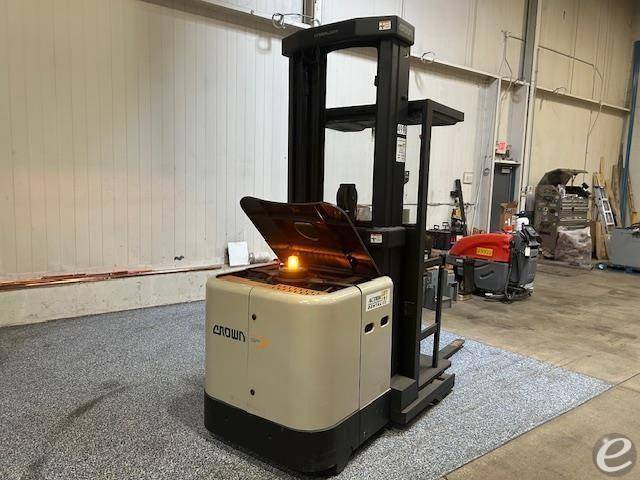

Crown SP3405-30

Buy or Rent

electric order picker

Call for price

CONTACT INFO
Name:
George Rieber
Phone:

ADDRESS
Somerset Equipment Sales
1375 Kingsland
Batavia Illinois 60510
ATTRIBUTES
STOCK #:
150117503006 - 24998
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
SUBCATEGORY:
MAST TYPE:
MAST HEIGHT:
240 in
SERIAL #:
1A324998
CONDITION:
Used/Rental
HOUR METER:
4774
UNIT LOCATION:
Illinois [60510]
POST DATE:
6/9/2026
Reviews
Useful
Not

The Crown SP3405-30 electric order picker has been a game changer for our warehouse operations. It's surprisingly nimble and has become my go-to when navigating the tight aisles. I remember the first time I hopped on it—I was a bit skeptical about an electric forklift, but its battery life lasted through a full shift, which was a pleasant surprise. The ergonomic design makes it comfortable for those long hours and I've noticed my colleagues appreciate it just as much. Overall, it’s been a reliable workhorse that’s improved our efficiency quite a bit. Definitely worth considering if you're in the market!



Review by Jake Thompson (3/9/2025)
