Equipment Description
8000# LP CUSHION, 174/83.5/36" TRIPLEX MAST, WIDE STANCE DRIVE TIRES, SIDESHIFTER, 4 SECT VALVE W/LEVER & PIPING, DUAL FUNCTION INT HOSE, AMBER STROBE LIGHT - BELOW, FILE PHOTO REFLECTING APPEARANCE OF THIS UNIT. FORKLIFT IS CURRENTLY UNGERGOING RECONDITIONING
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: GC30N
    • Manufacturer: Cat
    • Type: Forklift
    • Subtype: Pneumatic Tire 4 Wheel Sit Down
  • Dimensions
    • Overall Width: 46.5 inches
    • Overall Length to Fork Face: 112 inches
    • Overall Height to Top of Overhead Guard: 84 inches
    • Wheelbase: 66 inches
    • Ground Clearance: 4.9 inches
  • Engine Specifications
    • Engine Type: Gasoline/LPG
    • Engine Power: Approx. 59 HP (Horsepower)
    • Number of Cylinders: 4
  • Performance
    • Load Capacity: 6,000 lbs
    • Travel Speed Loaded: 11.5 mph
    • Travel Speed Unloaded: 12.4 mph
    • Lift Speed Loaded: 114 feet/min
    • Lift Speed Unloaded: 122 feet/min
    • Lowering Speed Loaded: 98 feet/min
    • Lowering Speed Unloaded: 98 feet/min
  • Tire Specifications
    • Tire Type: Pneumatic
    • Number of Front Tires: 2
    • Number of Rear Tires: 2
    • Front Tire Size: 7.00 x 12
    • Rear Tire Size: 6.00 x 9
  • Hydraulic System
    • Hydraulic Pressure: 2,490 psi
  • Fuel and Oil Capacities
    • Fuel Tank Capacity: 15.8 gallons
    • Engine Oil Capacity: 1.5 gallons
    • Hydraulic System Oil Capacity: 10.3 gallons

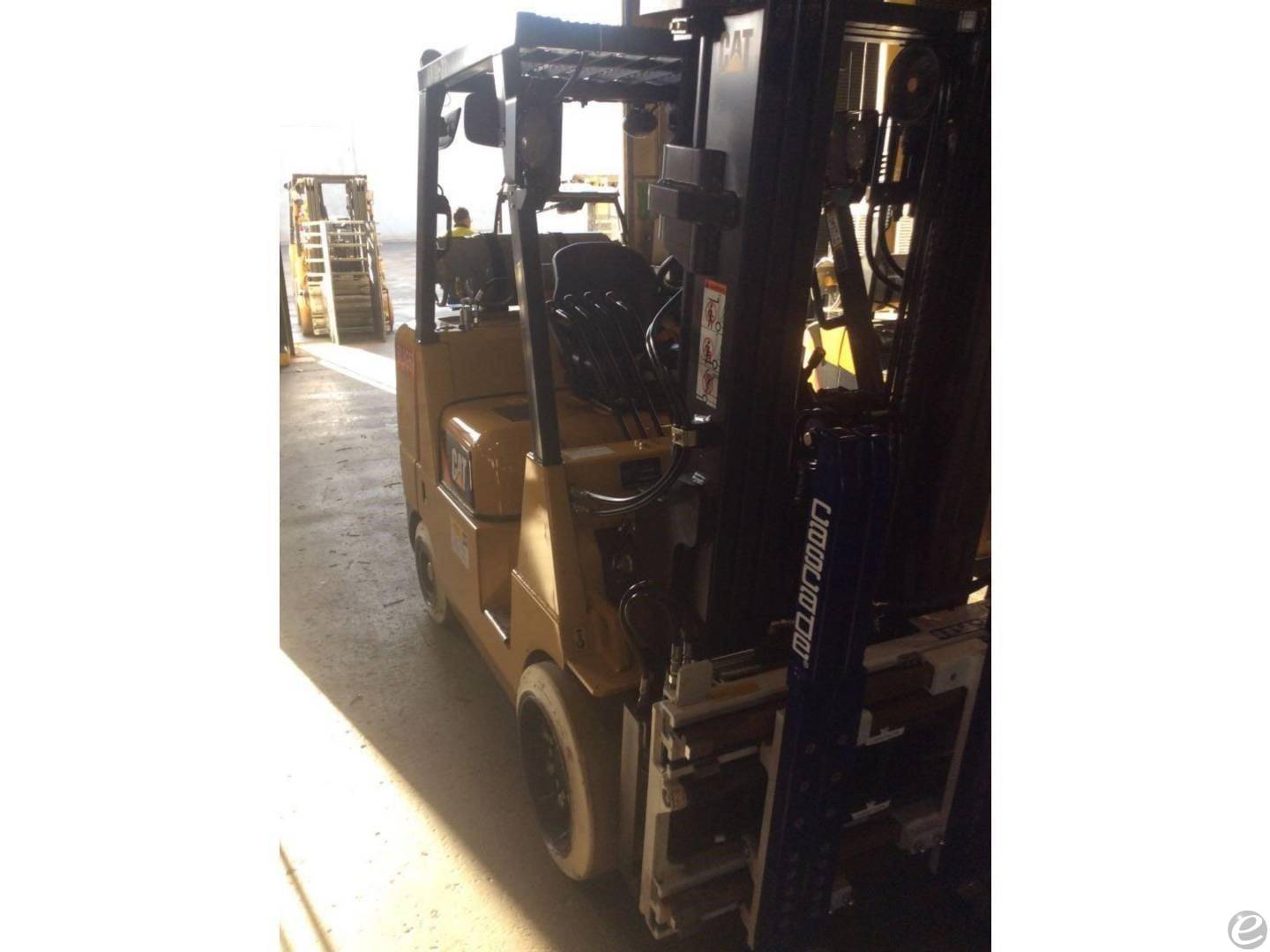

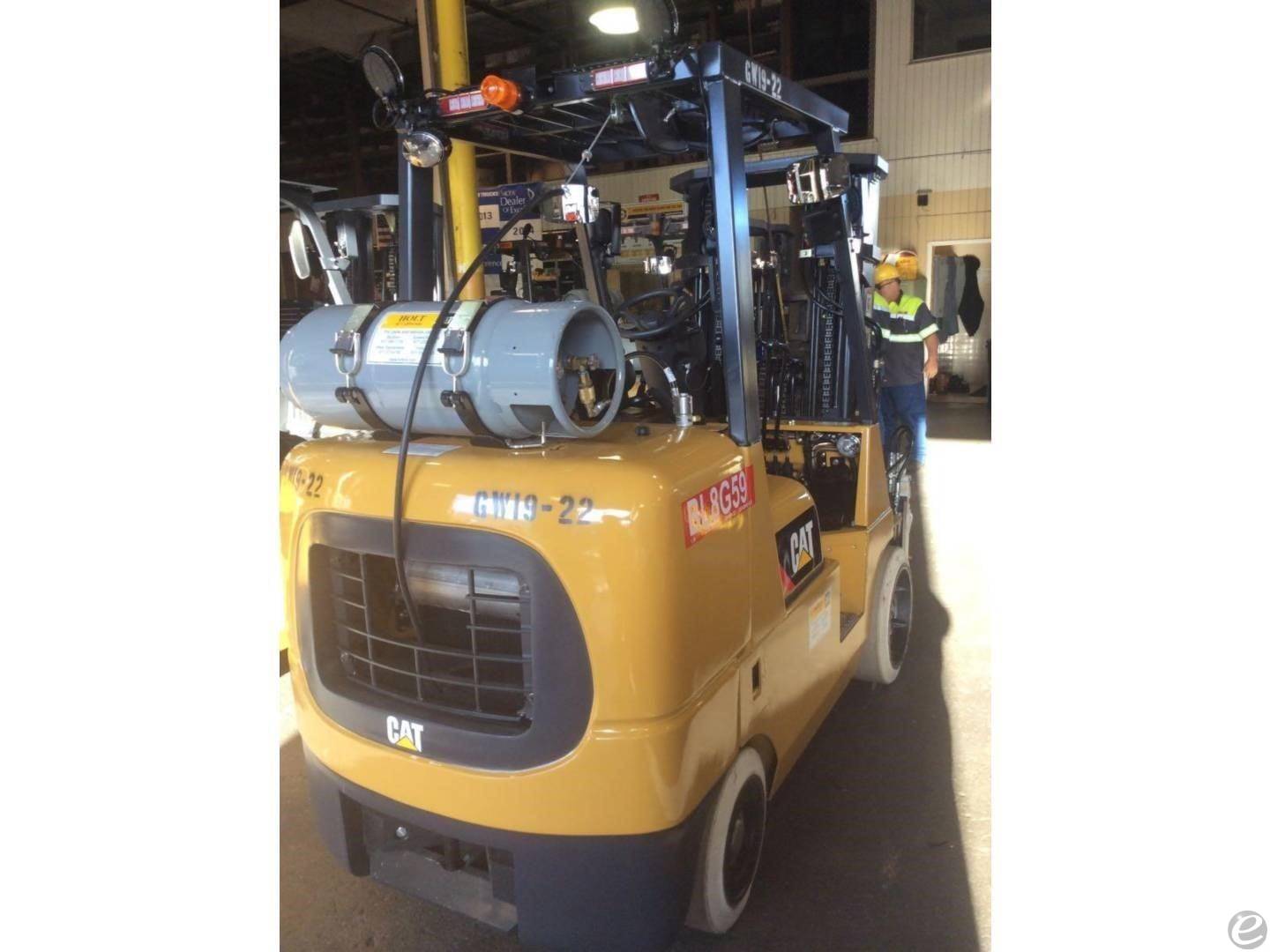

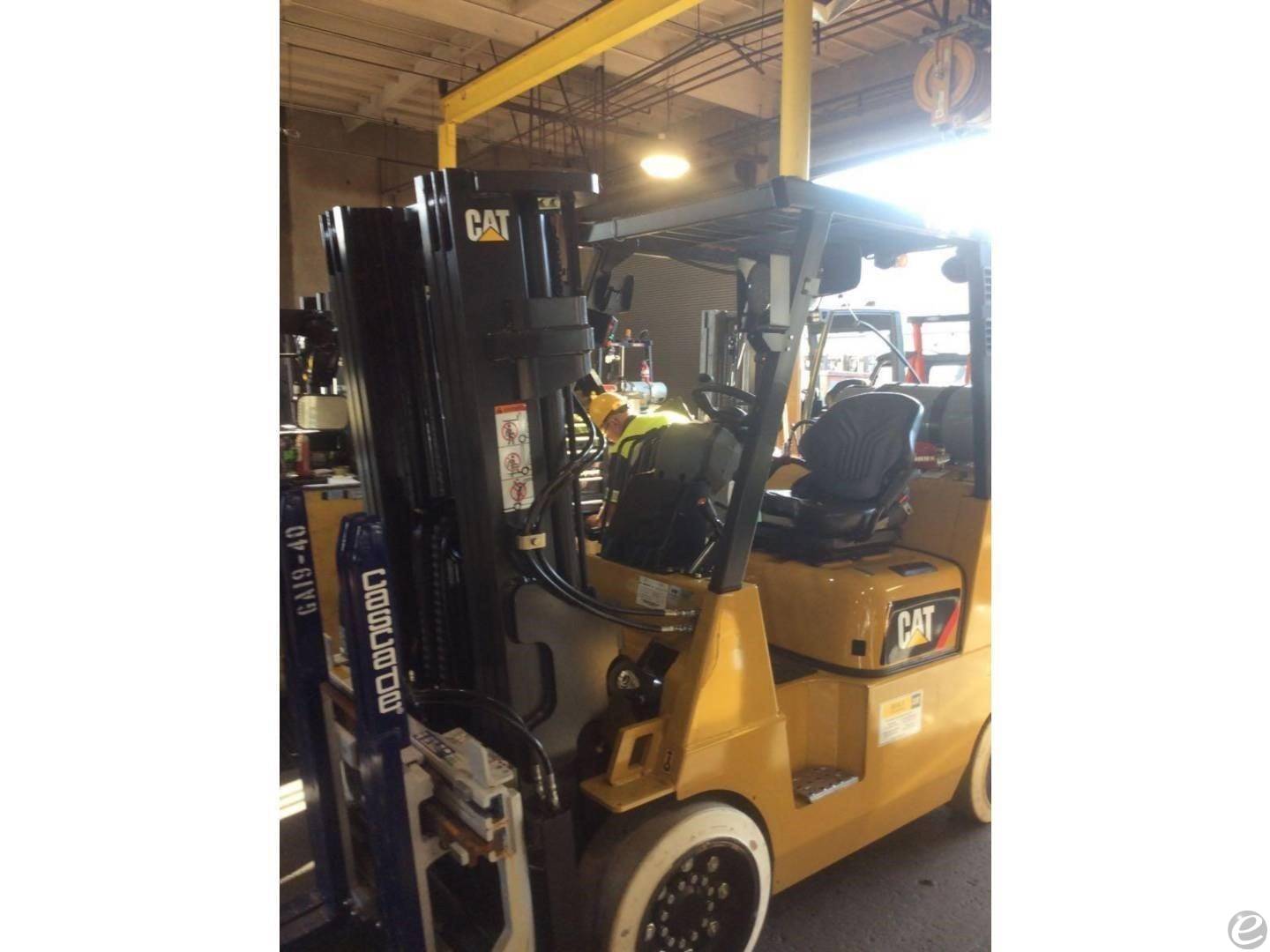

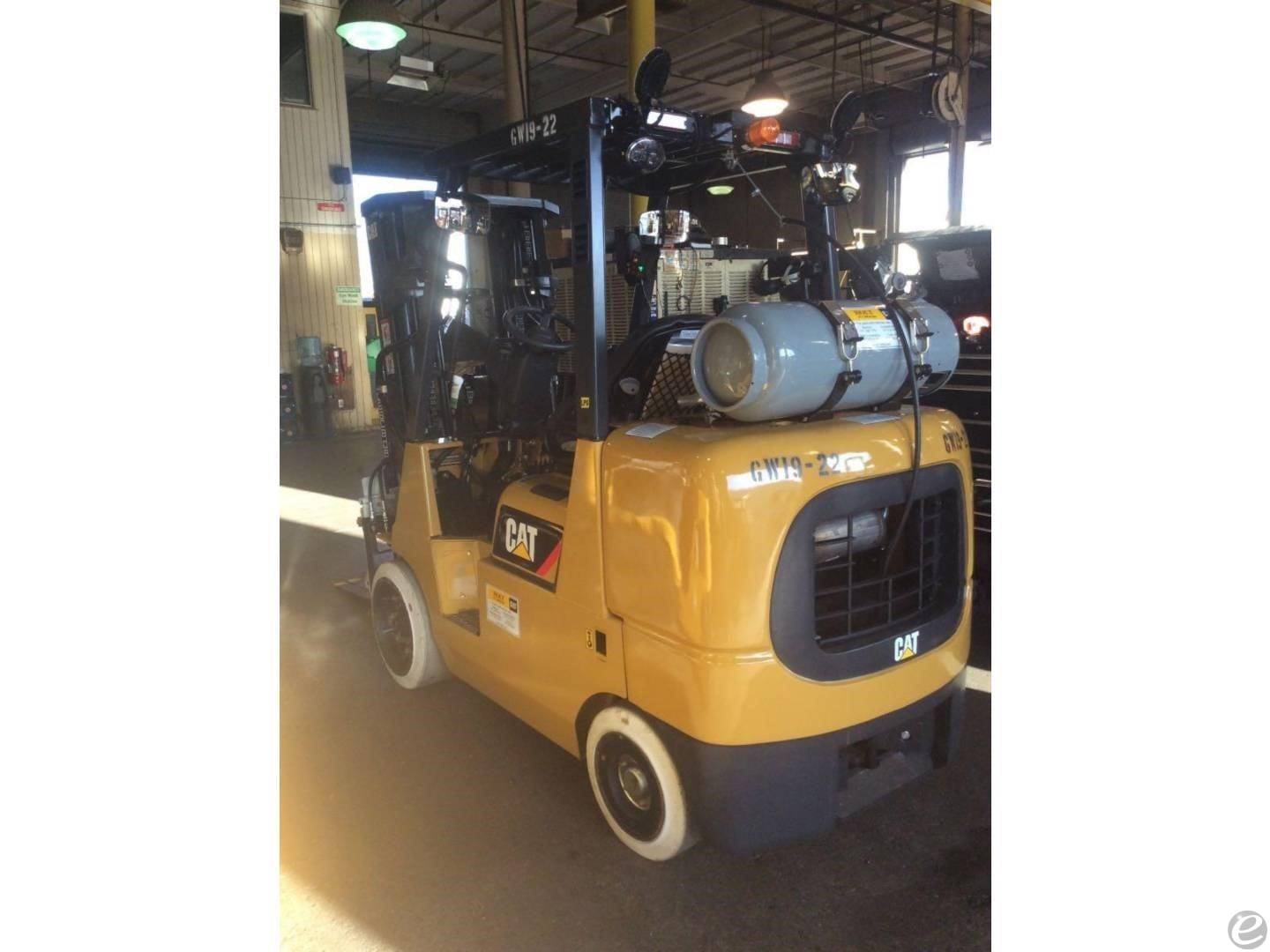

2021 Cat GC30N

pneumatic tire 4 wheel sit down lp gas

$32,900 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
David
Phone:
Fax:

ADDRESS
Holt of California
3850 Channel Dr
W SacramentoCalifornia 95691
ATTRIBUTES
STOCK #:
GW19-22
YEAR:
2021
Manufacturer:
MODEL #:
CAPACITY:
8000
FUEL:
MAST TYPE:
MAST HEIGHT:
83.5 / 36 in
SERIAL #:
AT87B10941
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
2155
UNIT LOCATION:
California [95691]
POST DATE:
4/28/2026
