  • Manufacturer: Cascade
  • Model Number: 90FRCS
  • Type: Attachment
  • Subtype: Paper Roll Clamps
  • Performance:
    • Capacity at Load Center: 9,000 lbs at 24 inches
    • Opening Range: 12 to 63 inches
    • Rotation: 360-degree continuous rotation
    • Clamp Force: Adjustable up to 5,000 lbs
  • Dimensions:
    • Frame Width: 48 inches
    • Clamp Arm Length: Varies
    • Daylight Opening: Approximately 10 inches
    • Thickness: 30 inches
    • Weight: Approximately 2,300 lbs
  • Hydraulic Specifications:
    • Operating Pressure: 2,500 to 3,000 psi
    • Flow Rate: 15 to 20 GPM
  • Material and Construction:
    • Material: High-strength steel
    • Finish: Powder-coated to resist corrosion
  • Features:
    • Durable T-beam arm construction for increased toughness
    • Backward-compatible with existing hydraulic systems
    • Quick and easy to install
    • Customizable options available for specific applications

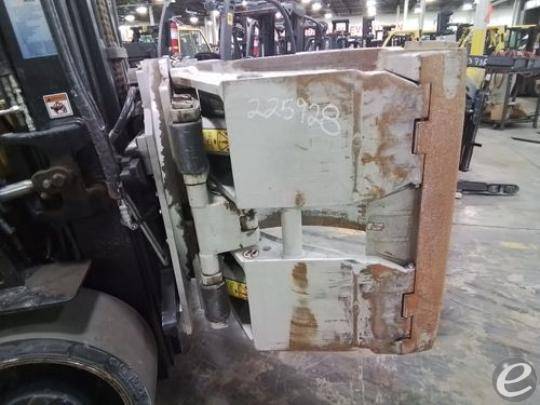

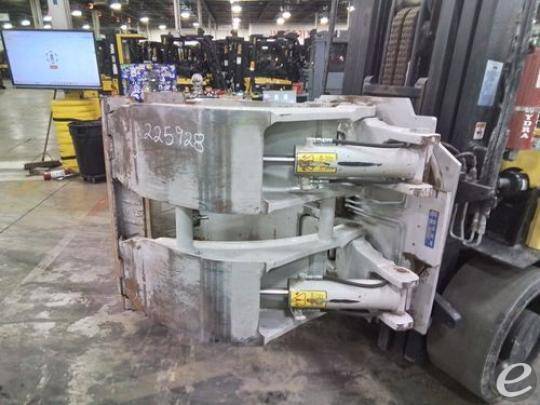

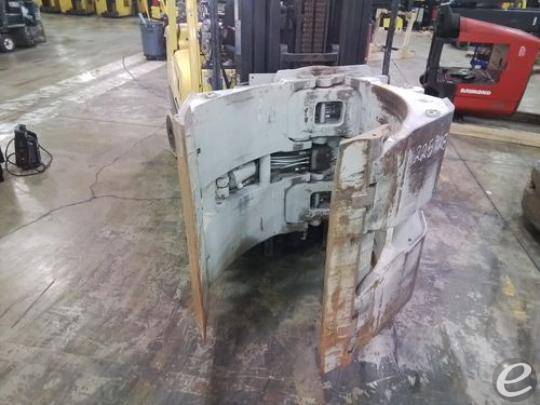

2019 Cascade 90F-RCS

paper roll clamps

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Russell Equipment
1793 Enterprise Parkway
TwinsburgOhio 44087
ATTRIBUTES
STOCK #:
225928
YEAR:
2019
Manufacturer:
MODEL #:
CAPACITY:
9000
SUBCATEGORY:
UNIT LOCATION:
Ohio [44087]
DESCRIPTION:
POST DATE:
3/26/2026
  • Manufacturer: Cascade
  • Model Number: 90FRCS
  • Type: Attachment
  • Subtype: Paper Roll Clamps
  • Performance:
    • Capacity at Load Center: 9,000 lbs at 24 inches
    • Opening Range: 12 to 63 inches
    • Rotation: 360-degree continuous rotation
    • Clamp Force: Adjustable up to 5,000 lbs
  • Dimensions:
    • Frame Width: 48 inches
    • Clamp Arm Length: Varies
    • Daylight Opening: Approximately 10 inches
    • Thickness: 30 inches
    • Weight: Approximately 2,300 lbs
  • Hydraulic Specifications:
    • Operating Pressure: 2,500 to 3,000 psi
    • Flow Rate: 15 to 20 GPM
  • Material and Construction:
    • Material: High-strength steel
    • Finish: Powder-coated to resist corrosion
  • Features:
    • Durable T-beam arm construction for increased toughness
    • Backward-compatible with existing hydraulic systems
    • Quick and easy to install
    • Customizable options available for specific applications
