Equipment Description
Year: 2002 Make: KOMATSU Model: FG15ST-16 Tire Type: WAREGHOUSE CUSHION TIRES Power: LP FUELED 4 CYLINDER NISSAN ENGINE Max Lifting Capacity: 3,000 LBS. Mast: DUPLEX MAST, TWO STAGE WIDE VIEW Attachments: SIDE SHIFTING CARRIAGE W 42" FORKS Maximum Lift Height: 128" Additional Info: NO COMPUTERS, JUST READY FOR WORK! SERVICED, INSPECTED AND TESTED! Warranty: 30 DAY POWERTRAIN WARRANTY Delivery: NATIONWIDE DELIVERY AVAILABLE
Spec Sheet
  • General Specifications
    • Model Number: FG15ST-16
    • Manufacturer: Komatsu
    • Type: Forklift
    • Fuel Type: Gasoline
    • Tire Type: Solid Pneumatic
  • Dimensions
    • Overall Length: Approximately 8.5 feet
    • Overall Width: Approximately 3.9 feet
    • Overall Height (top of overhead guard): Approximately 6.8 feet
    • Wheelbase: Approximately 5.1 feet
    • Ground Clearance: Approximately 0.3 feet
  • Performance
    • Rated Capacity: Approximately 3,000 lbs
    • Travel Speed: Approximately 11 mph
    • Lifting Speed: Approximately 59 feet per minute (no load)
    • Lifting Speed: Approximately 39 feet per minute (full load)
  • Engine
    • Engine Model: Nissan K15 Gasoline Engine
    • Engine Power: Approximately 30 HP
    • Number of Cylinders: 4
  • Weights
    • Service Weight: Approximately 6,300 lbs
    • Front Axle Load (laden): Approximately 7,400 lbs
    • Rear Axle Load (laden): Approximately 1,300 lbs
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical Lever
  • Steering
    • Steering Type: Hydrostatic Power Steering
    • Turning Radius: Approximately 6.9 feet
  • Additional Features

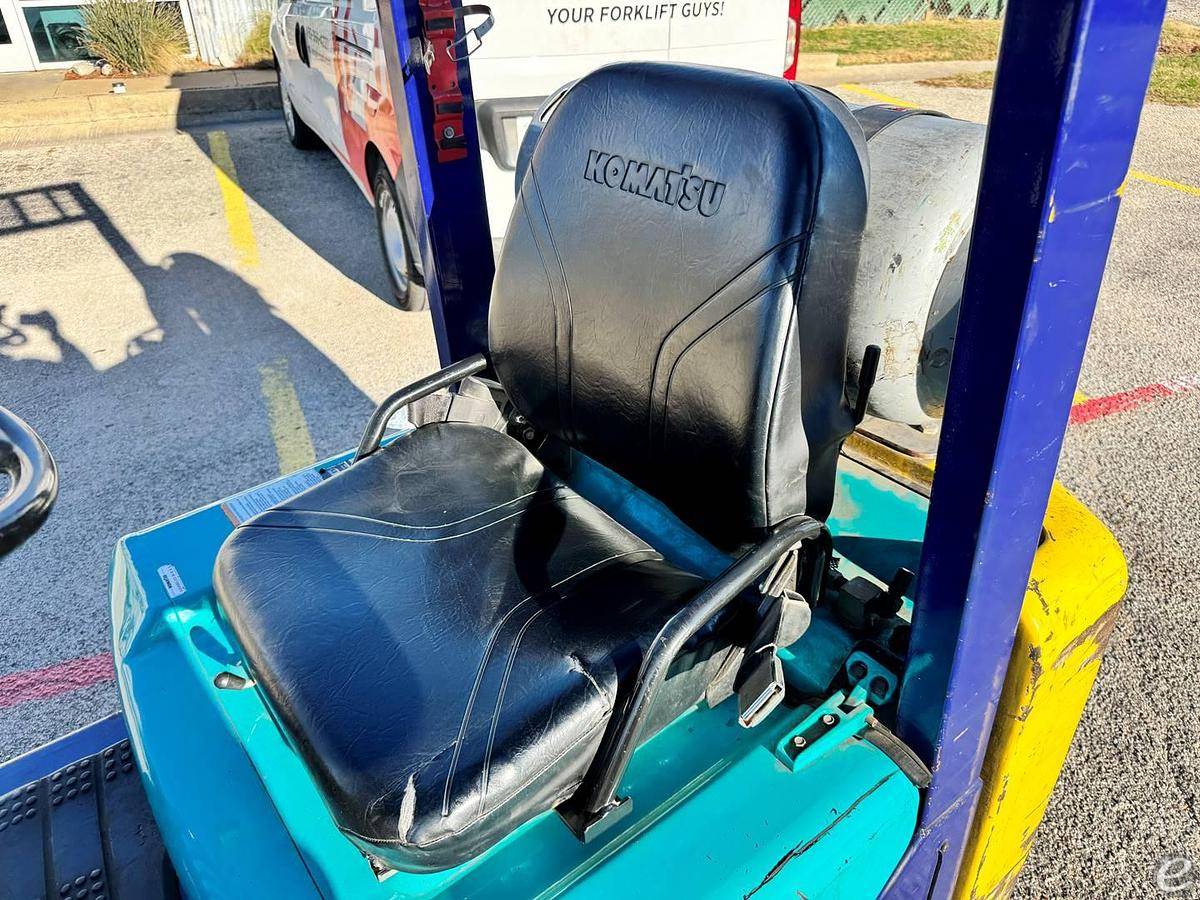

    • Operator Compartment: Semi-suspension seat, operator presence sensing system
    • Forks: Length varies
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

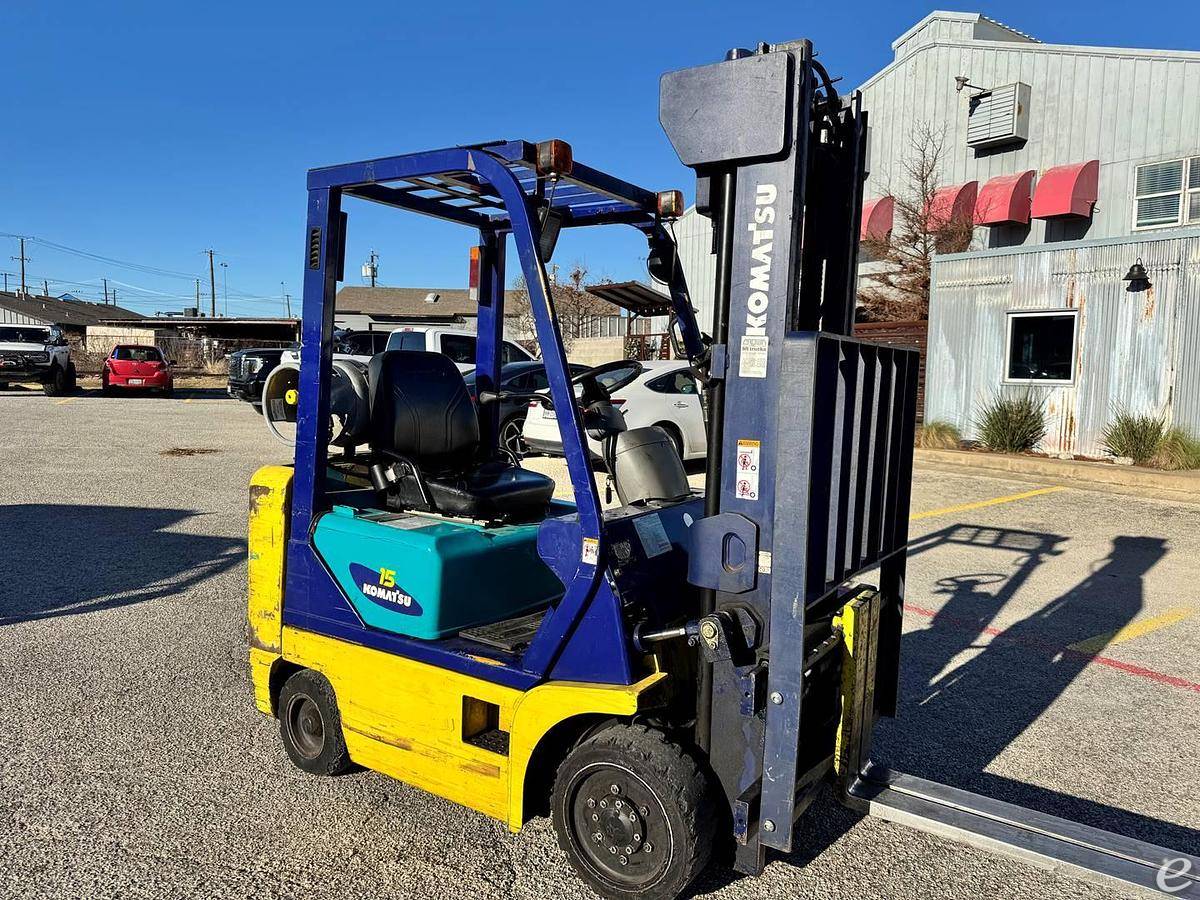

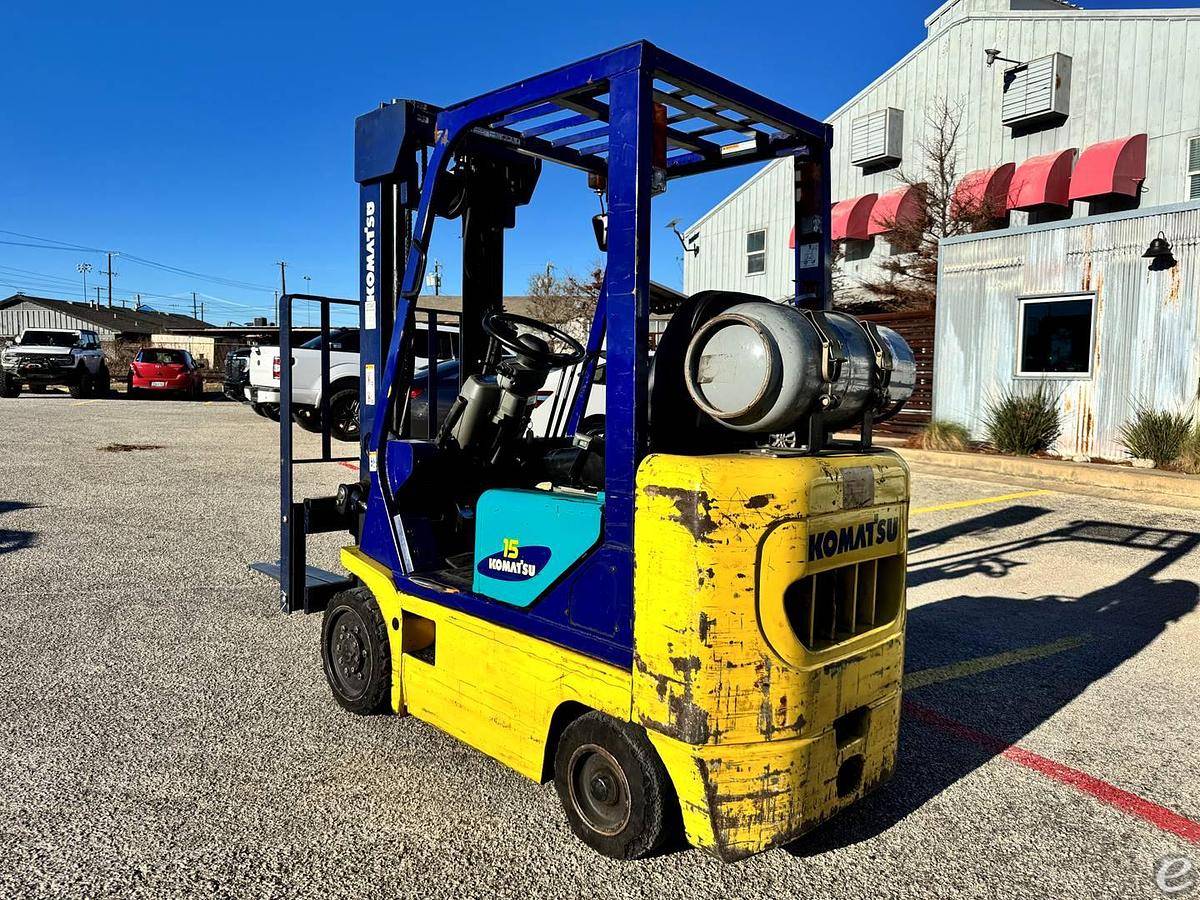

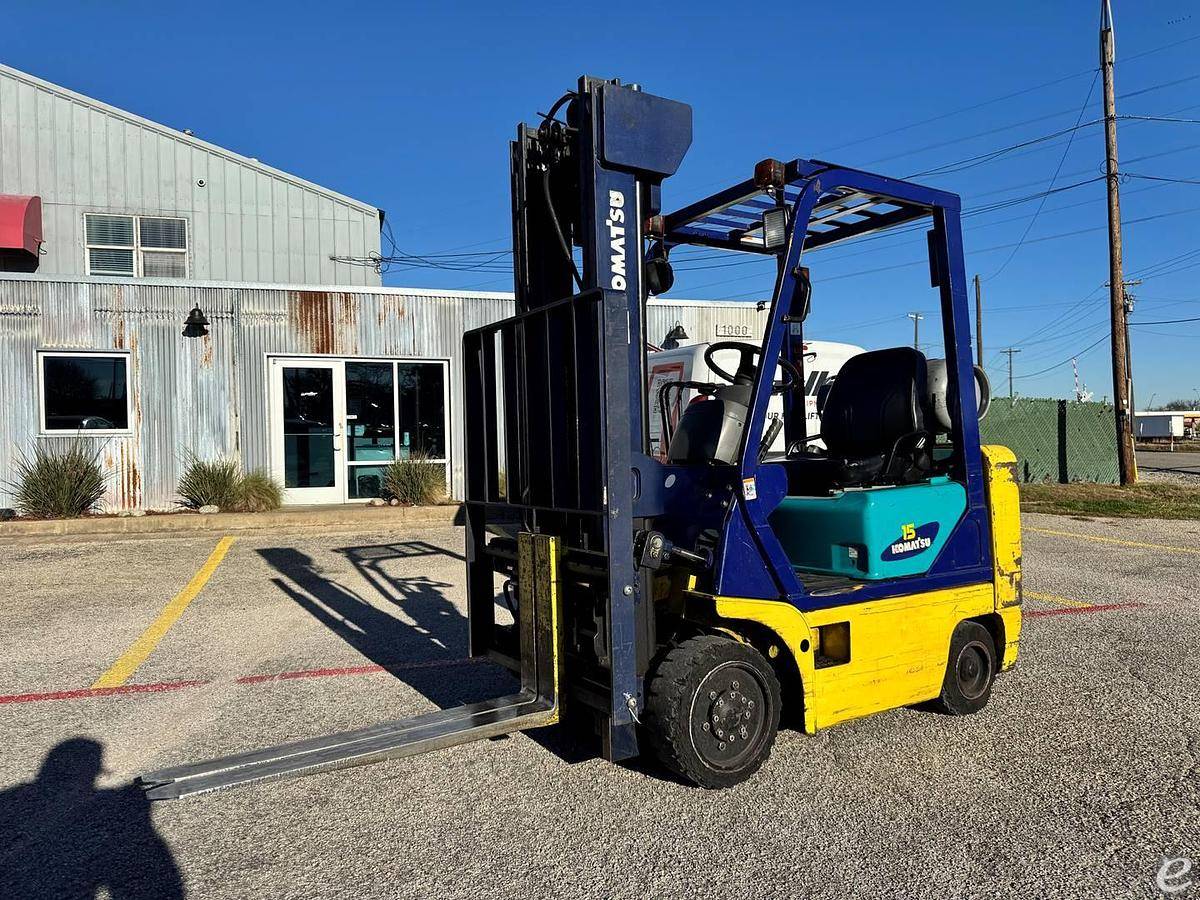

2002 Komatsu FG15ST-16

cushion tire 4 wheel sit down (indoor warehouse) lp gas

Call for price

CONTACT INFO
Name:
Gerald Dyson
Phone:

ADDRESS
North Texas Equipment Services LLC.
409 Woodhollow Dr
WylieTexas 75098
ATTRIBUTES
STOCK #:
01543
YEAR:
2002
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
MAST HEIGHT:
128 in
SIDE SHIFTER:
Yes
CONDITION:
Used

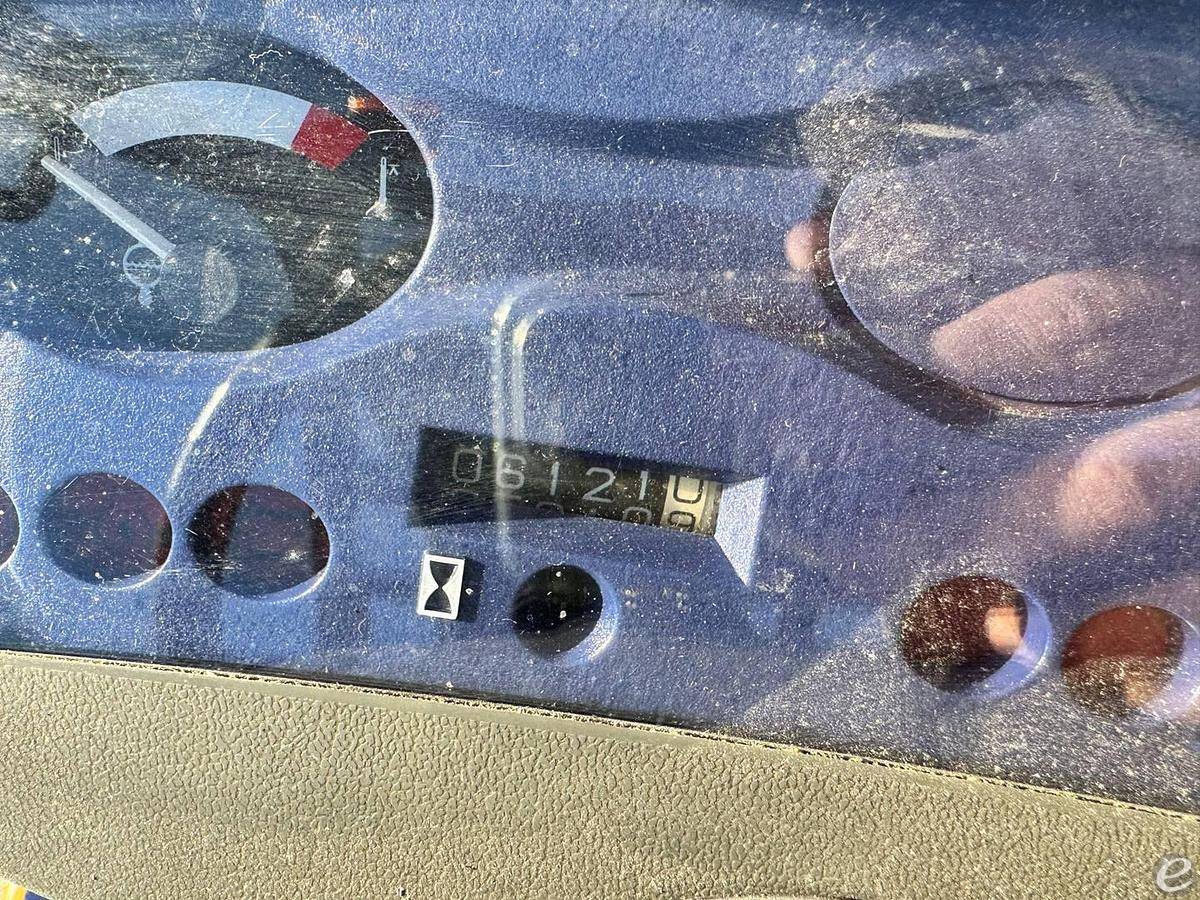

HOUR METER:
6000
UNIT LOCATION:
Texas [75098]
POST DATE:
3/3/2026
