  • General Information
    • Model Number: NDR030
    • Manufacturer: Yale
    • Type: Forklift
    • Subtype: Electric Narrow Aisle Single Reach
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: 96 inches
    • Overall Width: 41 inches
    • Height to Top of Overhead Guard: 88 inches
    • Turning Radius: 62 inches
    • Wheelbase: 56 inches
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed (Loaded): 4 mph
    • Travel Speed (Unloaded): 4.5 mph
    • Lift Speed (Loaded): 32 feet per minute
    • Lift Speed (Unloaded): 40 feet per minute
    • Lowering Speed (Loaded): 41 feet per minute
    • Lowering Speed (Unloaded): 37 feet per minute
  • Powertrain
    • Drive Motor: 24 V / 5 kW
    • Lift Motor: 24 V / 6.5 kW
  • Wheels
    • Tires: Polyurethane
    • Drive Tire Size: 10 inches
    • Load Wheel Size: 5 inches
  • Fork Specifications
    • Fork Length: Varies
    • Fork Thickness: 1.6 inches
    • Fork Width: 4 inches
  • Battery
    • Battery Voltage: 24 V
    • Battery Capacity: 510 Ah

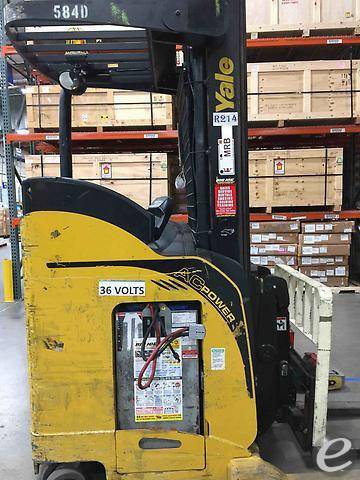

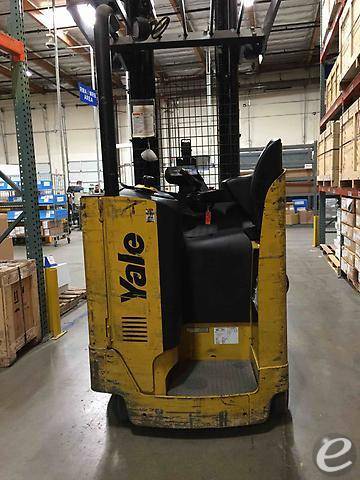

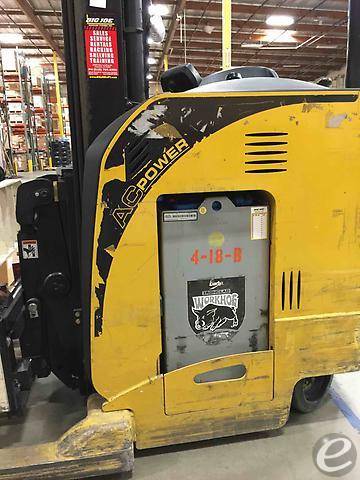

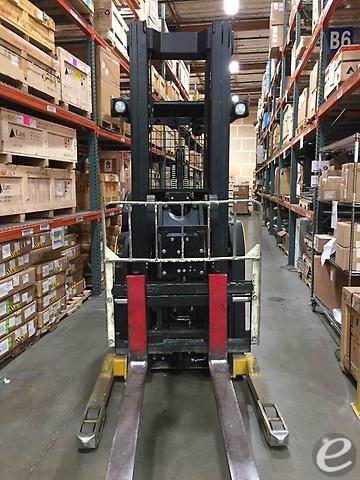

2006 Yale NDR030

electric narrow aisle double reach

$14,200 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Sales Dept
Phone:

ADDRESS
Big Joe Handling Systems
25932 Eden Landing Rd
HaywardCalifornia 94545
ATTRIBUTES
STOCK #:
10967
YEAR:
2006
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
MAST HEIGHT:
110 / 251 in
SERIAL #:
D815N01584D
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
7066
UNIT LOCATION:
California [94545]
DESCRIPTION:
Yale Stand Up Double Deep Reach Truck
POST DATE:
8/11/2026
Reviews
Useful
Not

The Yale NDR030 electric narrow aisle forklift is a solid choice for any warehouse looking to optimize their space. I remember seeing one in action at a friend’s distribution center, and it really stands out with how smoothly it maneuvers in tight spots—definitely a game-changer for smaller aisles. The electric aspect is a huge plus, running quietly without all the fumes, which not only keeps the environment cleaner but also makes it more comfortable for the team working around it. My experience confirms that it’s powerful enough to handle heavier loads while maintaining precision. Overall, it's a dependable machine that gets the job done efficiently without all the noise and hassle of traditional forklifts.



Review by Mike Thompson (1/24/2026)

  • General Information
    • Model Number: NDR030
    • Manufacturer: Yale
    • Type: Forklift
    • Subtype: Electric Narrow Aisle Single Reach
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: 96 inches
    • Overall Width: 41 inches
    • Height to Top of Overhead Guard: 88 inches
    • Turning Radius: 62 inches
    • Wheelbase: 56 inches
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed (Loaded): 4 mph
    • Travel Speed (Unloaded): 4.5 mph
    • Lift Speed (Loaded): 32 feet per minute
    • Lift Speed (Unloaded): 40 feet per minute
    • Lowering Speed (Loaded): 41 feet per minute
    • Lowering Speed (Unloaded): 37 feet per minute
  • Powertrain
    • Drive Motor: 24 V / 5 kW
    • Lift Motor: 24 V / 6.5 kW
  • Wheels
    • Tires: Polyurethane
    • Drive Tire Size: 10 inches
    • Load Wheel Size: 5 inches
  • Fork Specifications
    • Fork Length: Varies
    • Fork Thickness: 1.6 inches
    • Fork Width: 4 inches
  • Battery
    • Battery Voltage: 24 V
    • Battery Capacity: 510 Ah
