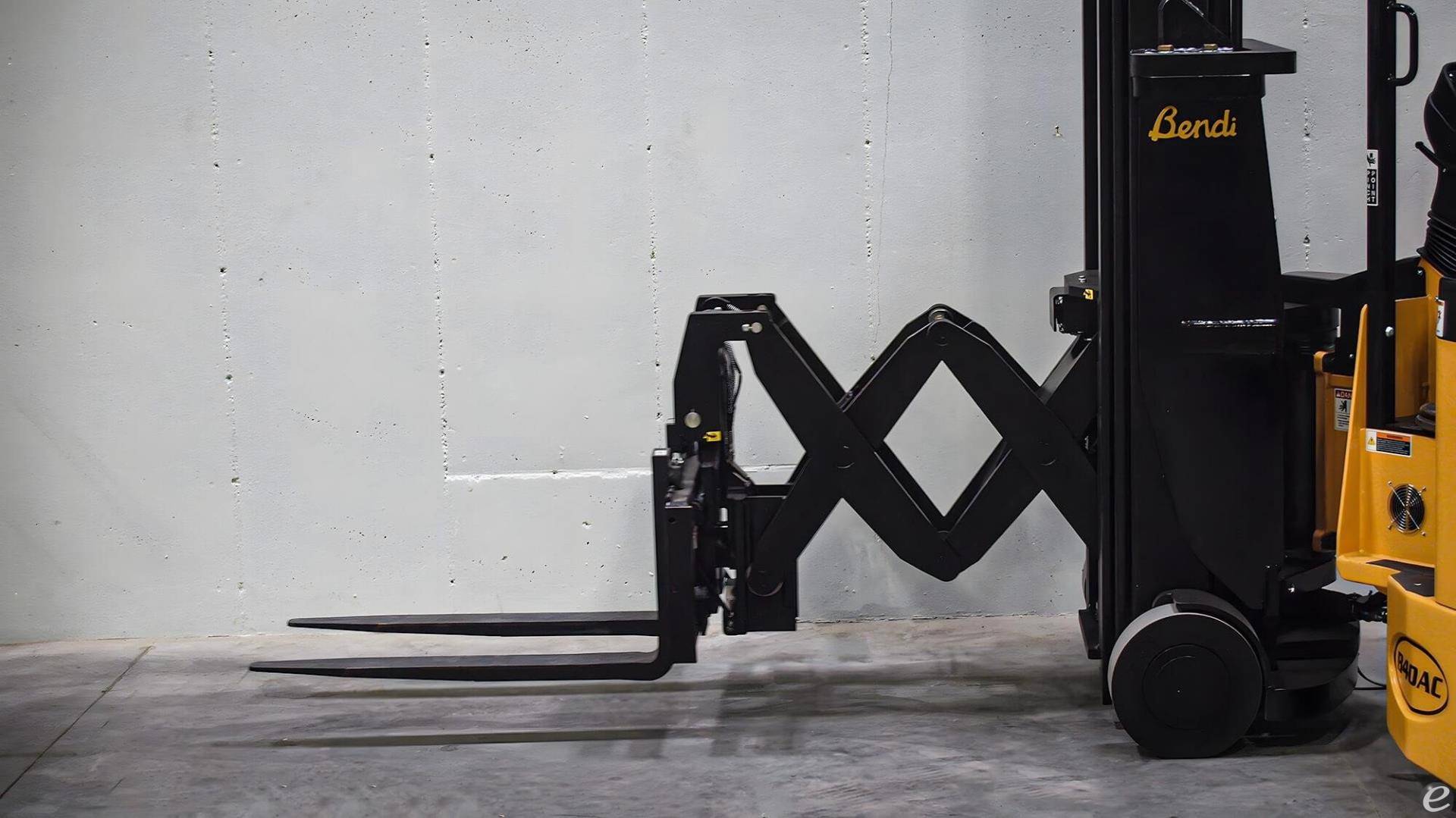

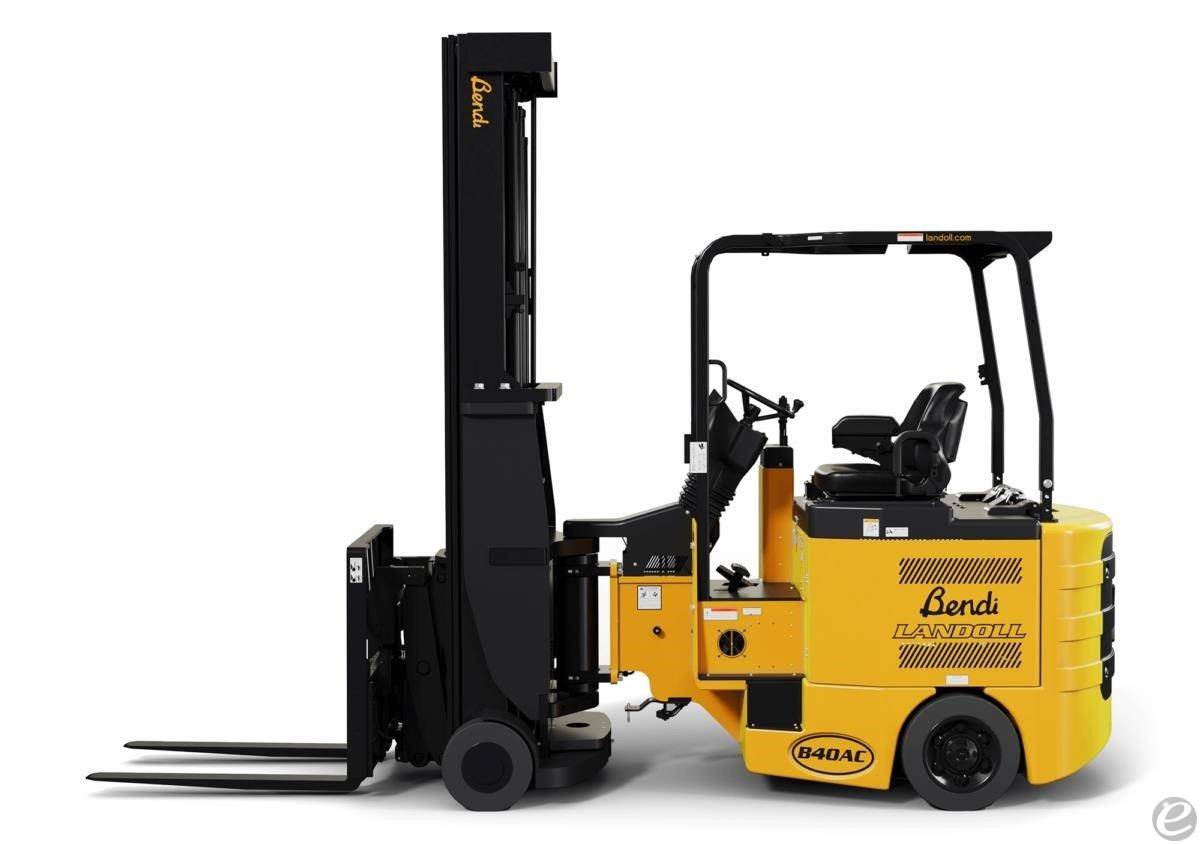

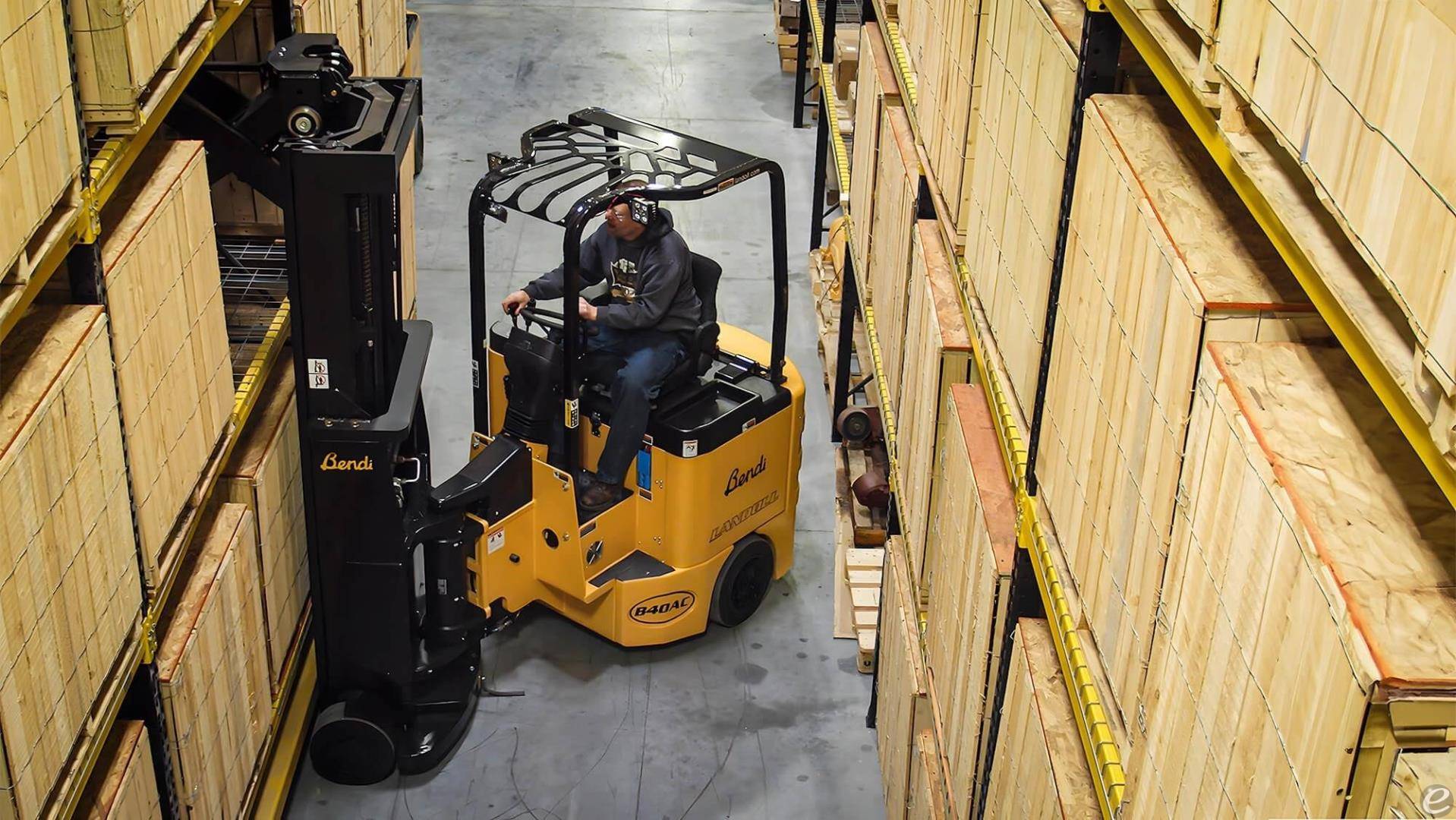

Bendi B40AC-DR / B50AC-DR – Deep-Reach Very Narrow Aisle Articulating Forklift The Bendi B40AC-DR and B50AC-DR forklifts can stack loads two deep in aisles as narrow as 96”, have a starting capacity of 2,500 lbs at 24” load center and lift heights available to 35′ 5″. The reach from face to mast is 52” and the integral pantograph reach stroke is 41” They have a 33” wide tilting and side shifting fork carriage. They are a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. The Bendi B40AC-DR and B50AC-DR can work inside and outside on paved surfaces and have a floating front axle allowing the truck to ride smoothly over uneven floors. They can do the same jobs as reach and counterbalanced trucks but in much narrower aisles. Standard Features: - 4 Wheel Design, Dual Rear Wheel Drive 4 Wheel Design, Dual Rear Wheel Drive - 8" Stroke Integral Side Shifter 8" Stroke Integral Side Shifter - 41" Stroke Integral Pantograph Reach - 52" Reach From Face of Mast - 37" Wide Tilting and Side Shifting Fork Carriage - Adjustable Seat and Steering Wheel - Rotation via DuraSteerTM Actuator, with 5-Year Warranty on Articulation - AC Traction and Hydraulic Controllers with Lift Interrupt - Full Diagnostic Interactive Color Display with Battery Discharge Indicator and Hour Meter - Hydraulic Disc Brakes - “Floating” Articulated Front Axle - 1 Parts and Operator's Manual Included - Hand Actuated Parking Brake - 36" High Backrest - High Visibility Mast - 170" Rear View Mirror - Safety Seat Switch and Seat Belt - Fixed Mast with Carriage Tilt of 3º Fwd / 3º Back - 48 Volt Electrical System - 4 Section Hydraulic Control Valve - Smooth Rubber Drive Tires - Soft Polyurethane Load Wheel Tires - 40" Tapered Tip Forks - Rear Tow Hitch Pin - 4 Post Heavy-Duty Adjustable Overhead Guard, Meets ANSI B56.1 OPTIONAL FEATURES - Non-Standard Fork Lengths - LED Headlights, Flashing Light and Rear Safety Lights - Non-Marking Tires - Vinyl Seat - Slide-Out Sideways Battery Tray - Fire Extinguisher - Laser Fork Height Indicator - Carriage Mounted Camera with Operator Compartment Monitor - Capable of Freezer Operation to -22°F - 31" Fork Carriage for Euro Pallet - 44" Reach From Face of Mast Performance & Application Highlights: - Indoor & Outdoor Use: Works on paved surfaces, replacing traditional reach and counterbalance trucks in many applications. - Ideal for: Distribution centers, high-density storage facilities, manufacturing warehouses, and logistics operations where deep reach and narrow aisle efficiency are priorities. Price Does Not Include Tax Or Freight FOB Bolingbrook, IL
