Spec Sheet
  • Model Number: Z45XC
  • Manufacturer: Genie
  • Type: Boom Lift
  • Subtype: Articulated Boom
  • Fuel Type Used: Diesel
  • Dimensions:
    • Height (Stowed): Approximately 8 ft
    • Length: Approximately 22 ft
    • Width: Approximately 7 ft 6 in
    • Wheelbase: Approximately 8 ft 2 in
    • Ground Clearance: Approximately 1 ft
  • Weight:
    • Around 16,300 lbs
  • Performance:
    • Platform Height: Approximately 45 ft
    • Horizontal Reach: Approximately 24 ft 9 in
    • Up and Over Clearance: 23 ft
    • Platform Capacity: Up to 500 lbs (unrestricted) / 1,000 lbs (restricted)
    • Drive Speed: Approximately 3.1 mph
    • Gradeability: 30%
    • Turning Radius: Inside: 7 ft 6 in; Outside: 15 ft 8 in
  • Engine:
    • Engine Type: Diesel Engine
    • Engine Power: Approximately 49 hp
  • Operational Features:
    • Hydraulic Tank Capacity: Approximately 21 gallons
    • Fuel Tank Capacity: Approximately 18 gallons
    • Platform Rotation: 160 degrees
    • Jib Length: 5 ft
    • Jib Range of Motion: Vertical: 139 degrees
    • Controls: Fully proportional hall effect joysticks
  • Chassis:
    • Tires: Foam-filled
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

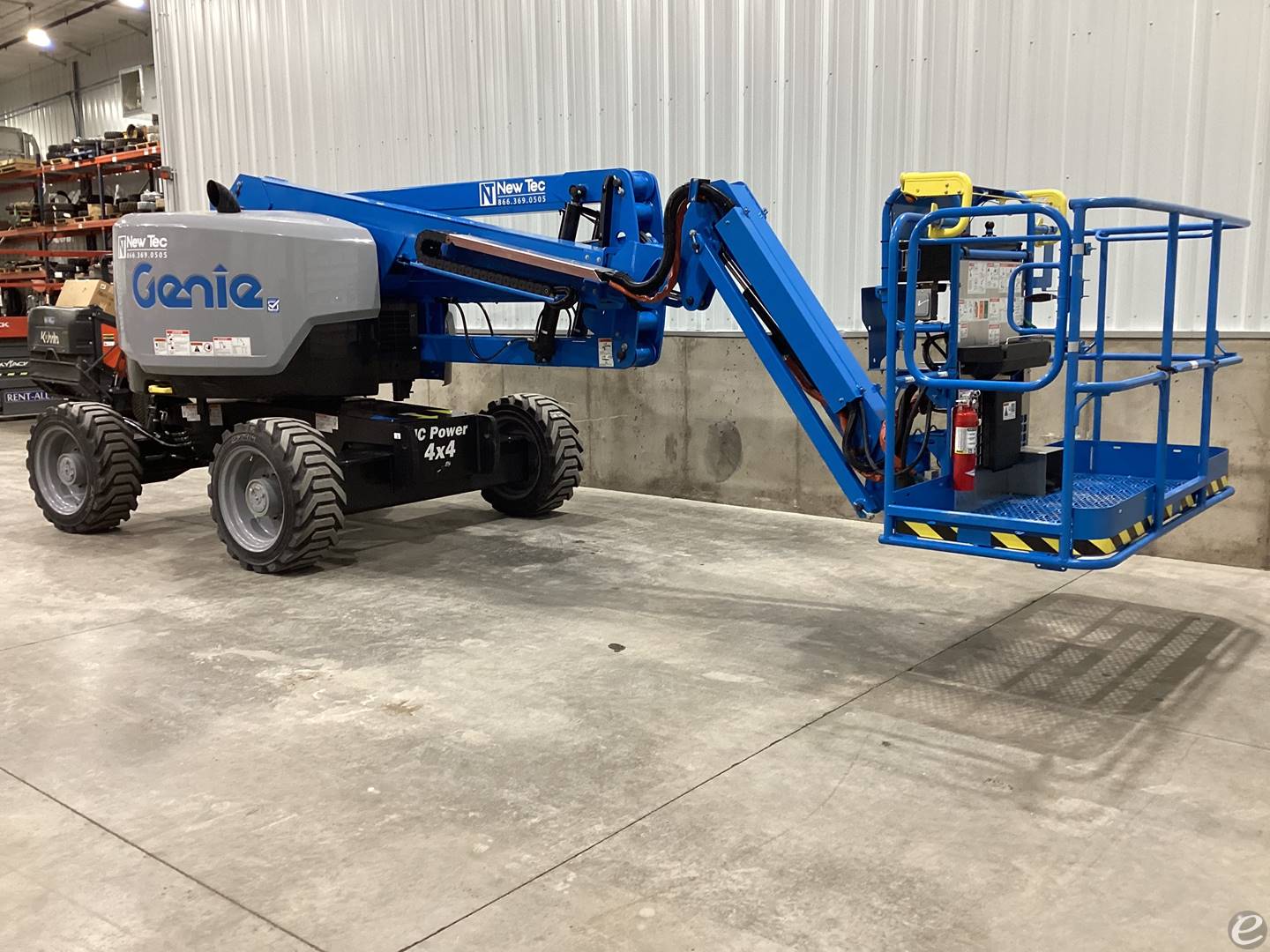

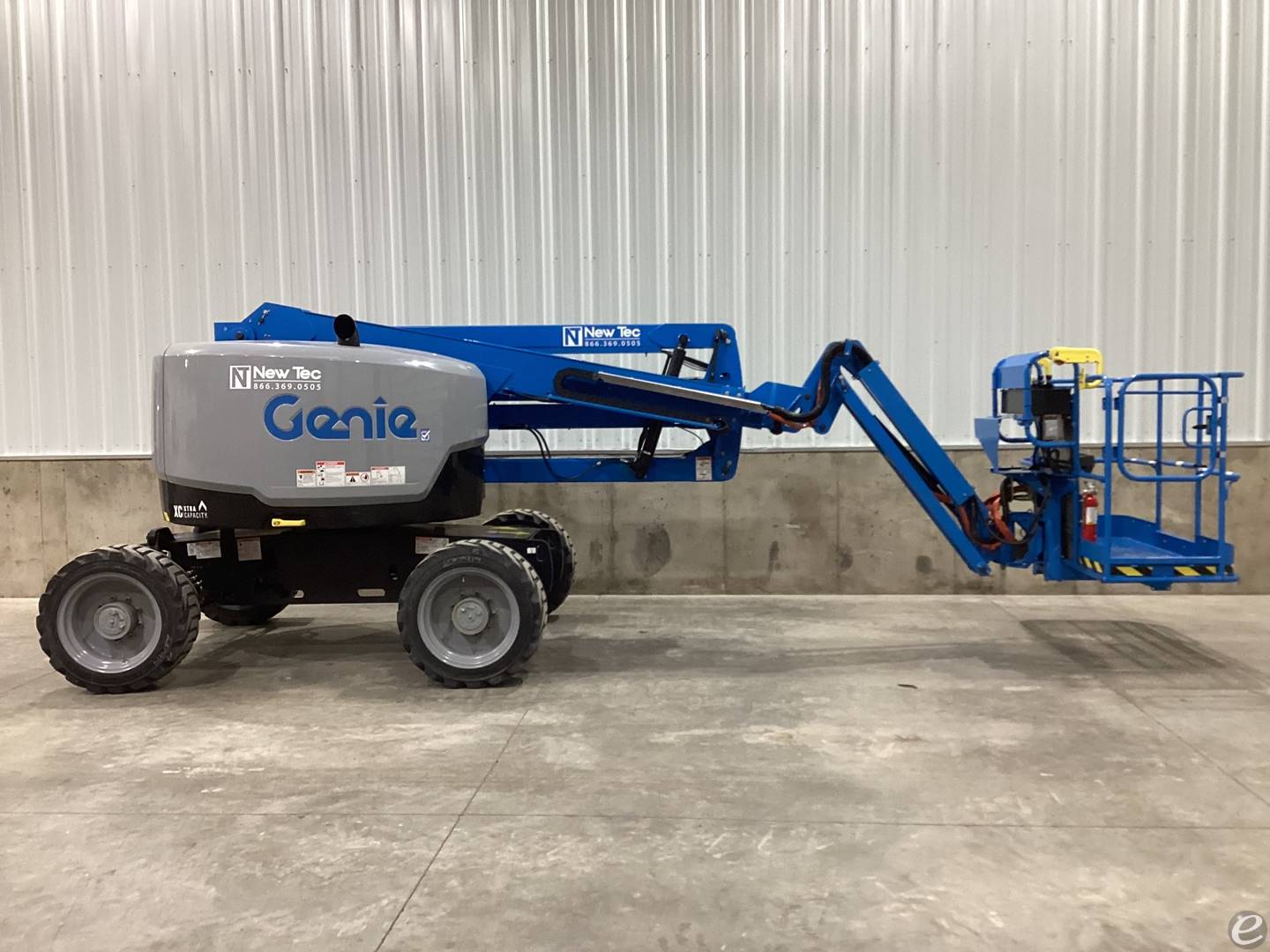

2025 Genie Z45XC

New

articulated boom diesel

Call for price

CONTACT INFO
Name:
Joe Tokeim
Phone:
Website:

ADDRESS
New Tec, Inc.
3764 US 75 Ave
Sioux CenterIowa 51250
ATTRIBUTES
STOCK #:
0022256
YEAR:
2025
Manufacturer:
MODEL #:
Drive:
4WD
SUBCATEGORY:
Height:
45 ft
FUEL:
SERIAL #:
Z4525XCF-3907
CONDITION:
New
HOUR METER:
2
LOCATION:
Iowa [51250]
DESCRIPTION:
Z45XC 45' Lift, Deutz Diesel, Foam Tires, 4WD, 2 Hours
POST DATE:
1/9/2026
Reviews
Useful
Not

The Genie Z45XC articulated boom lift is a real game changer for jobs that require some serious height without sacrificing maneuverability. I remember using it on a construction site where we had to reach some awkward angles on the exterior of a building. This machine made it feel almost effortless to navigate around tight spaces while still getting the job done. The diesel power is pretty impressive, allowing it to handle heavy lifting with ease. If you're looking for a boom lift that combines reliability with flexibility, this one's definitely worth considering for your next project.


Review by Jake Thompson (11/11/2024)

  • Model Number: Z45XC
  • Manufacturer: Genie
  • Type: Boom Lift
  • Subtype: Articulated Boom
  • Fuel Type Used: Diesel
  • Dimensions:
    • Height (Stowed): Approximately 8 ft
    • Length: Approximately 22 ft
    • Width: Approximately 7 ft 6 in
    • Wheelbase: Approximately 8 ft 2 in
    • Ground Clearance: Approximately 1 ft
  • Weight:
    • Around 16,300 lbs
  • Performance:
    • Platform Height: Approximately 45 ft
    • Horizontal Reach: Approximately 24 ft 9 in
    • Up and Over Clearance: 23 ft
    • Platform Capacity: Up to 500 lbs (unrestricted) / 1,000 lbs (restricted)
    • Drive Speed: Approximately 3.1 mph
    • Gradeability: 30%
    • Turning Radius: Inside: 7 ft 6 in; Outside: 15 ft 8 in
  • Engine:
    • Engine Type: Diesel Engine
    • Engine Power: Approximately 49 hp
  • Operational Features:
    • Hydraulic Tank Capacity: Approximately 21 gallons
    • Fuel Tank Capacity: Approximately 18 gallons
    • Platform Rotation: 160 degrees
    • Jib Length: 5 ft
    • Jib Range of Motion: Vertical: 139 degrees
    • Controls: Fully proportional hall effect joysticks
  • Chassis:
    • Tires: Foam-filled
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
